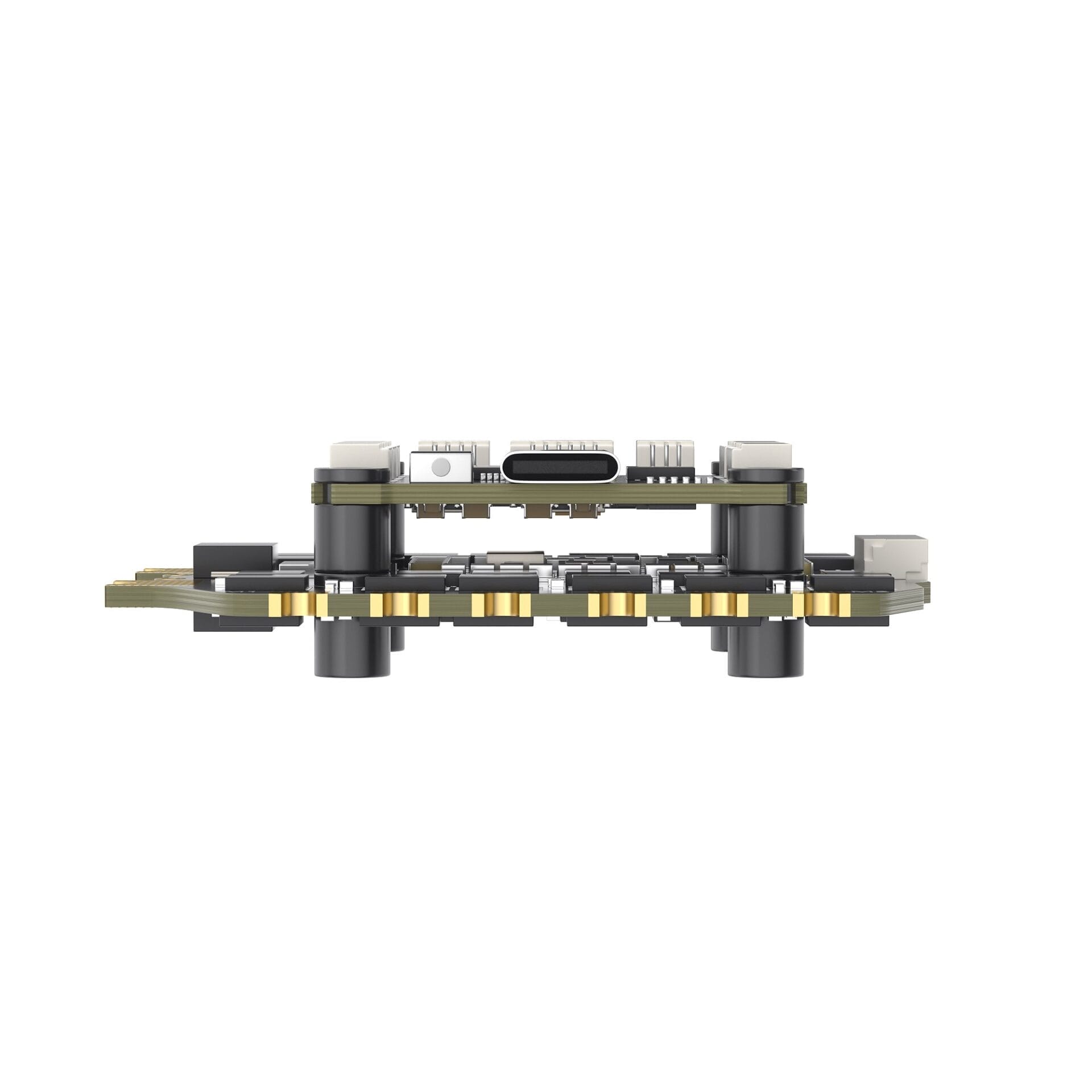

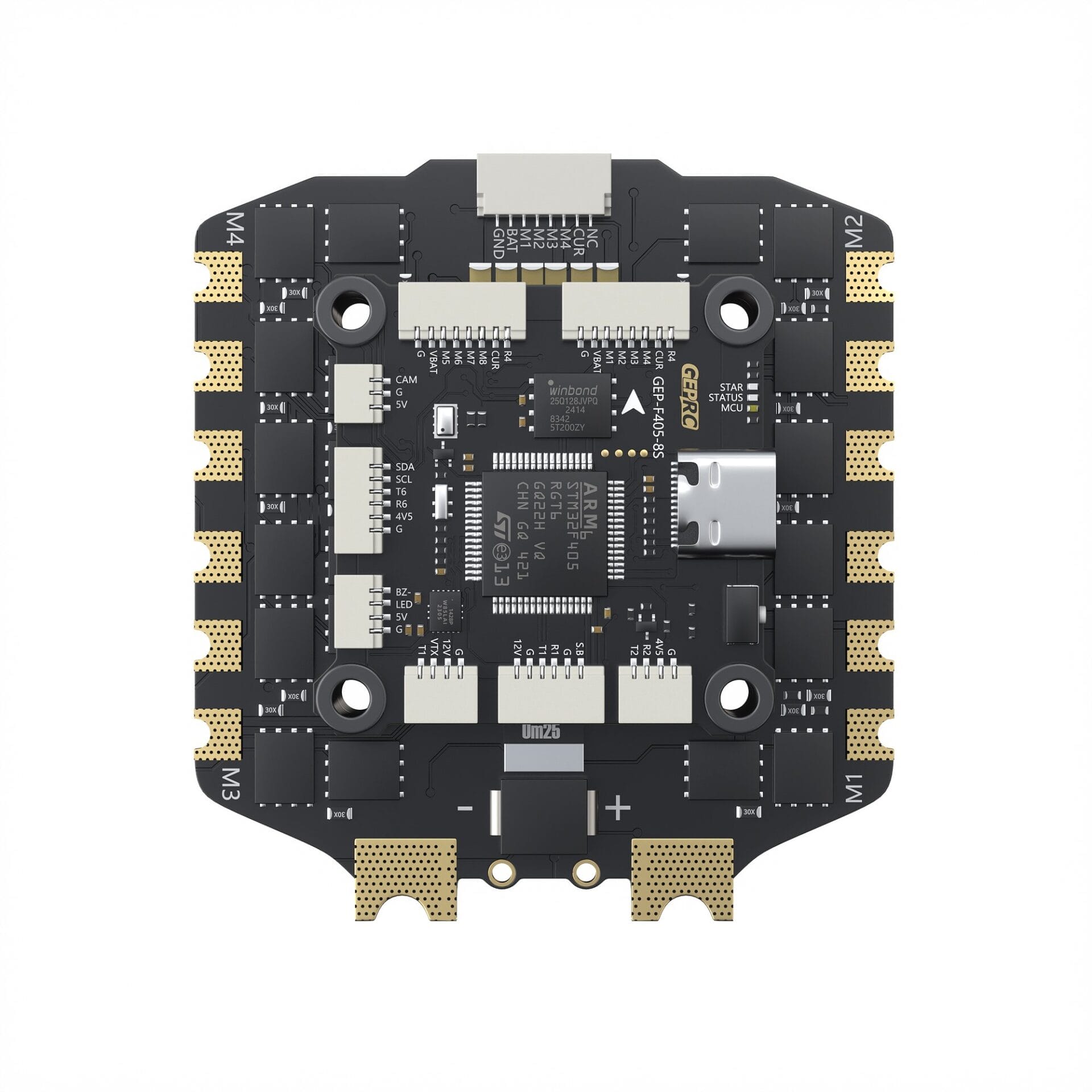

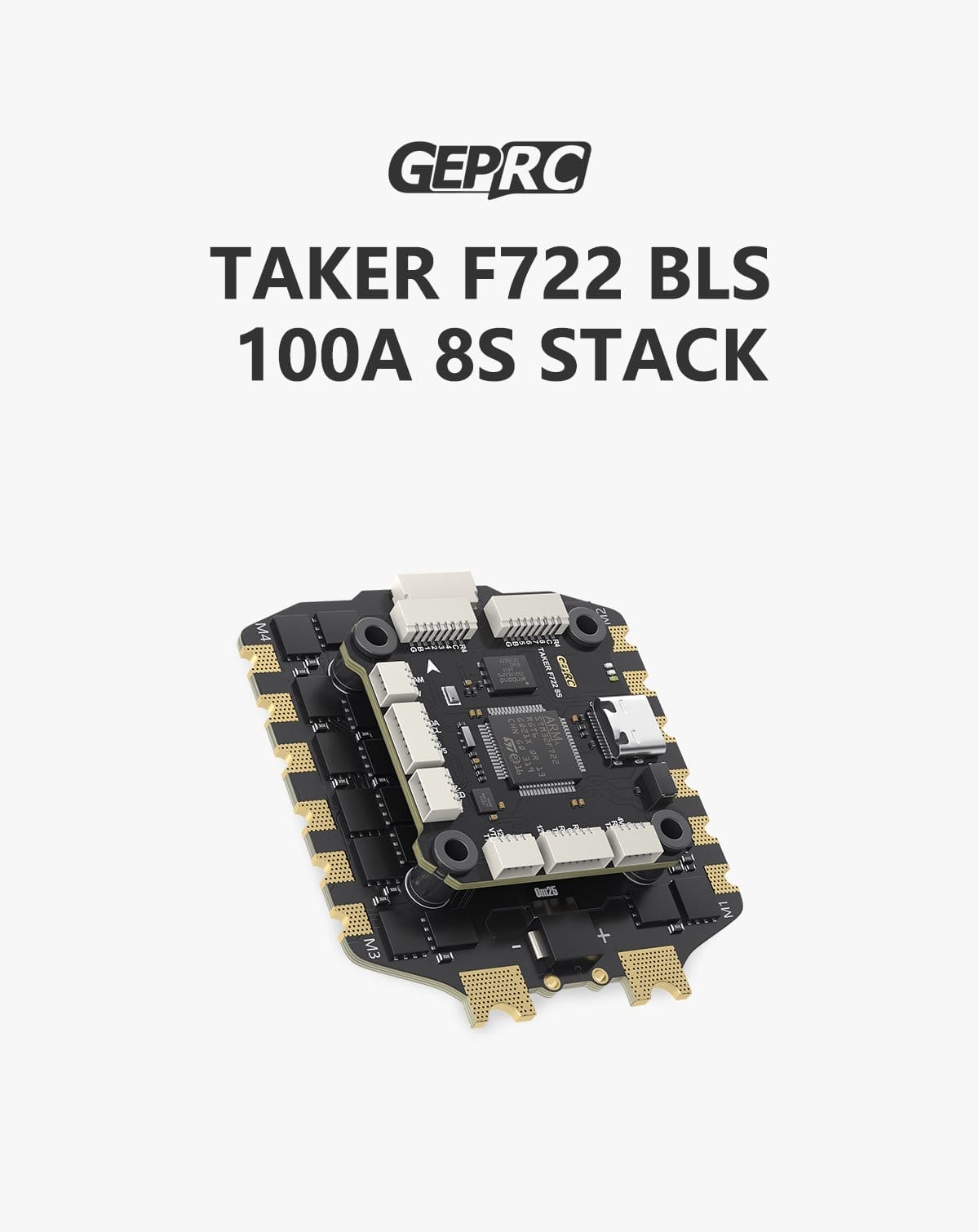

GEPRC TAKER F722 BLS 100A 8S Stack
AU$304.95
The TAKER F722 8S Flight Controller, powered by an STM32F722 MCU and ICM42688-P IMU, offers exceptional performance for FPV drones. With direct DJI Air Unit support, integrated 16M black box, BetaFlight OSD, Type-C USB, and dual BEC outputs (5V@3A & 12V@3A), it’s built for precision and reliability. It supports up to 8S LiPo, six UARTs, and features an onboard LC power filter for clean signals.
Paired with the TAKER H100 8S 100A 4-in-1 ESC, you get smooth, high-current handling with 100A continuous and 105A burst, DShot 150/300/600 compatibility, and integrated current sensing. Together, this combo delivers top-tier power, stability, and control for high-performance FPV builds.
ONLY 1 LEFT
Description
GEPRC TAKER F405 BLS 100A 8S Stack
The TAKER F722 8S Flight Controller, powered by an STM32F722 MCU and ICM42688-P IMU, offers exceptional performance for FPV drones. With direct DJI Air Unit support, integrated 16M black box, BetaFlight OSD, Type-C USB, and dual BEC outputs (5V@3A & 12V@3A), it’s built for precision and reliability. It supports up to 8S LiPo, six UARTs, and features an onboard LC power filter for clean signals.
Paired with the TAKER H100 8S 100A 4-in-1 ESC, you get smooth, high-current handling with 100A continuous and 105A burst, DShot 150/300/600 compatibility, and integrated current sensing. Together, this combo delivers top-tier power, stability, and control for high-performance FPV builds.
Feature
- 1. Uses the mainstream STM32F722 chip
- 2. Equipped with the latest 42688-P gyroscope
- 3. 16M onboard black box storage
- 4. Integrated LC filter
- 5. Upgraded Type-C USB interface
- 6. Directly plugs into the DJI Air Unit
- 7. Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience
- 8. Simple and efficient installation method with shock absorbers for stable gyroscope performance
- 9. Dual independent BECs: 12V@3A and 5V@3A
- 10. Supports 8S Lipo batteries
- 11. Support direct insertion of 8 motors
Specifications
TAKER F722 8S Flight Controller
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugs into DJI Air Unit
- Black Box: 16M onboard
- USB Interface: Type-C
- Barometer: Supported
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,12V@3A dual BEC
- Firmware Target: TAKERF722SE
- Dimension: 38.5×38.5mm,
- Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage: 3-8S LiPo
- UART: 6 UARTs
- Power Filter: Integrated LC filter
- Weight: 8.1g Includes
TAKER H100_8S_BLS 100A 4IN1 ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Calibration value：200
- Continue Current：100A
- Burst Current：105A（5 second）
- Support Protocol: Dshot 150/300/600
- Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 28.8g
- Target: B_X_3

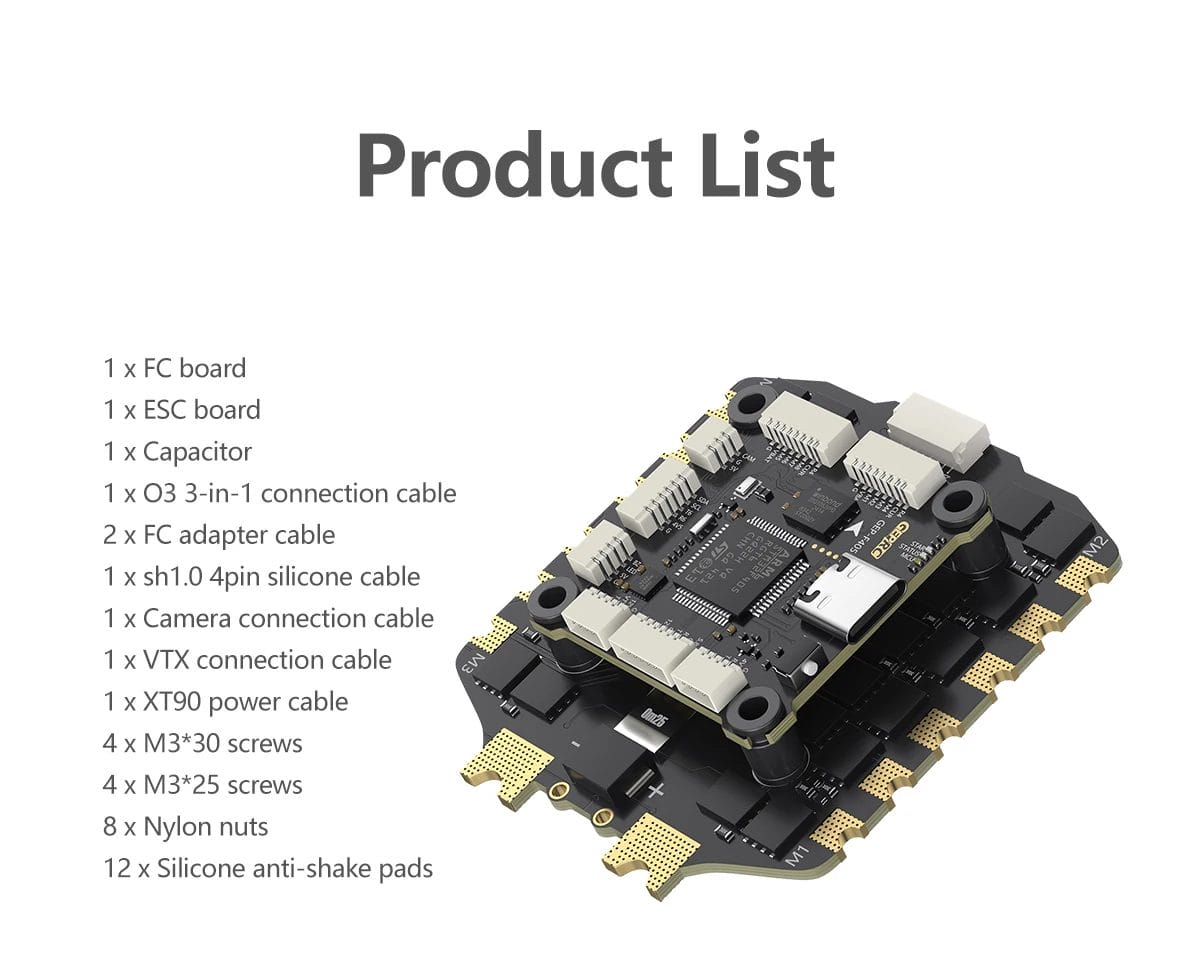

Includes
- 1 x FC board
- 1 x ESC board
- 1 x Capacitor
- 1 x O3 3-in-1 connection cable
- 2 x FC adapter cable
- 1 x sh1.0 4pin silicone cable
- 1 x Camera connection cable
- 1 x VTX connection cable
- 1 x XT90 power cable
- 4 x M3*30 screws
- 4 x M3*25 screws
- 8 x Nylon nuts
- 12 x Silicone anti-shake pads
