GOKU GM10 Pro V3 GPS with compass

AU$40.90

GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Sold out

SKU: MF-0110090551 Category:

Description

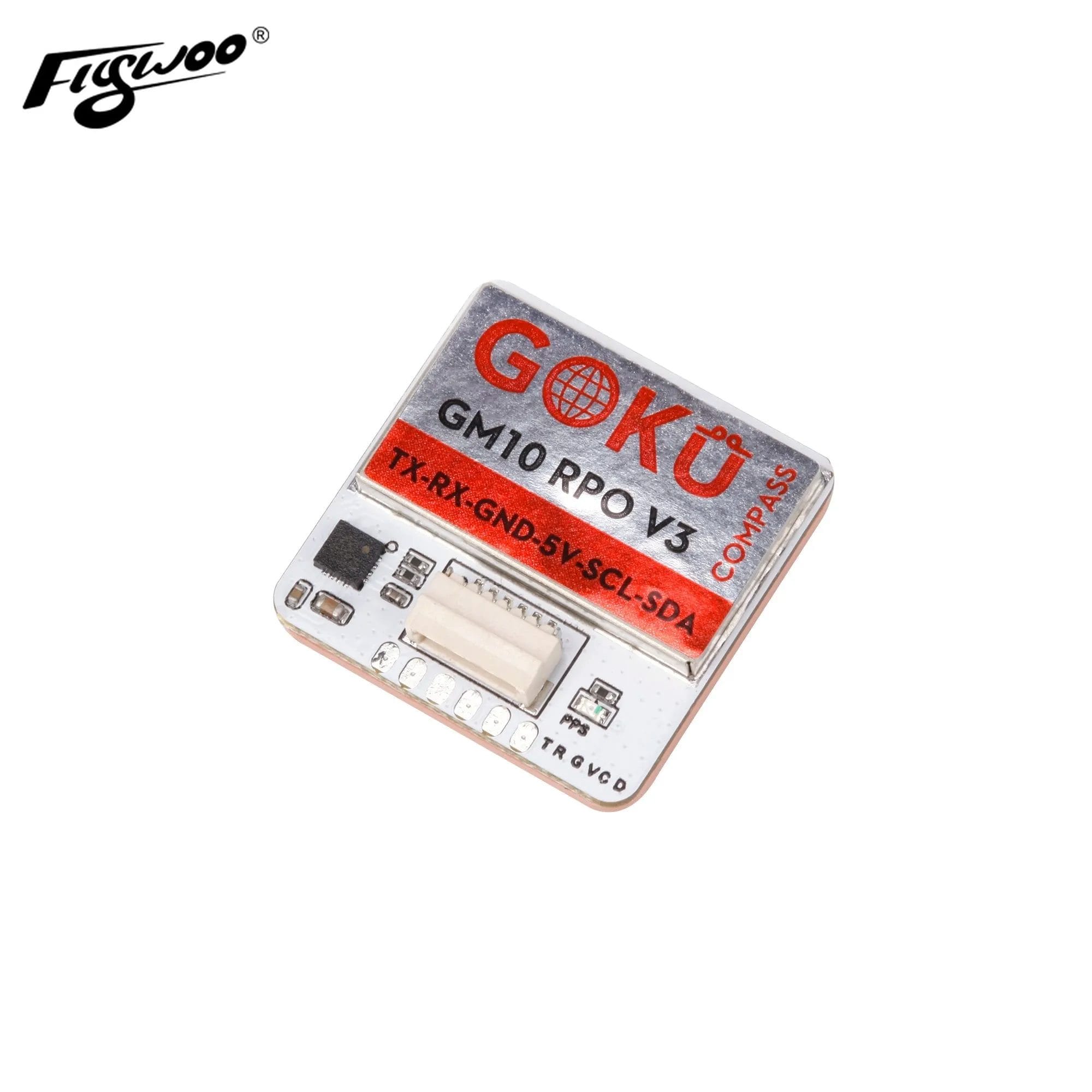

GOKU GM10 Pro V3 GPS with compass

GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Flywoo Logo

Specification

  • Brand: FLYWOO
  • Model: GM10 PRO V3 GPS w/ Compass
  • Dimension : 25mm*25mm*6mm

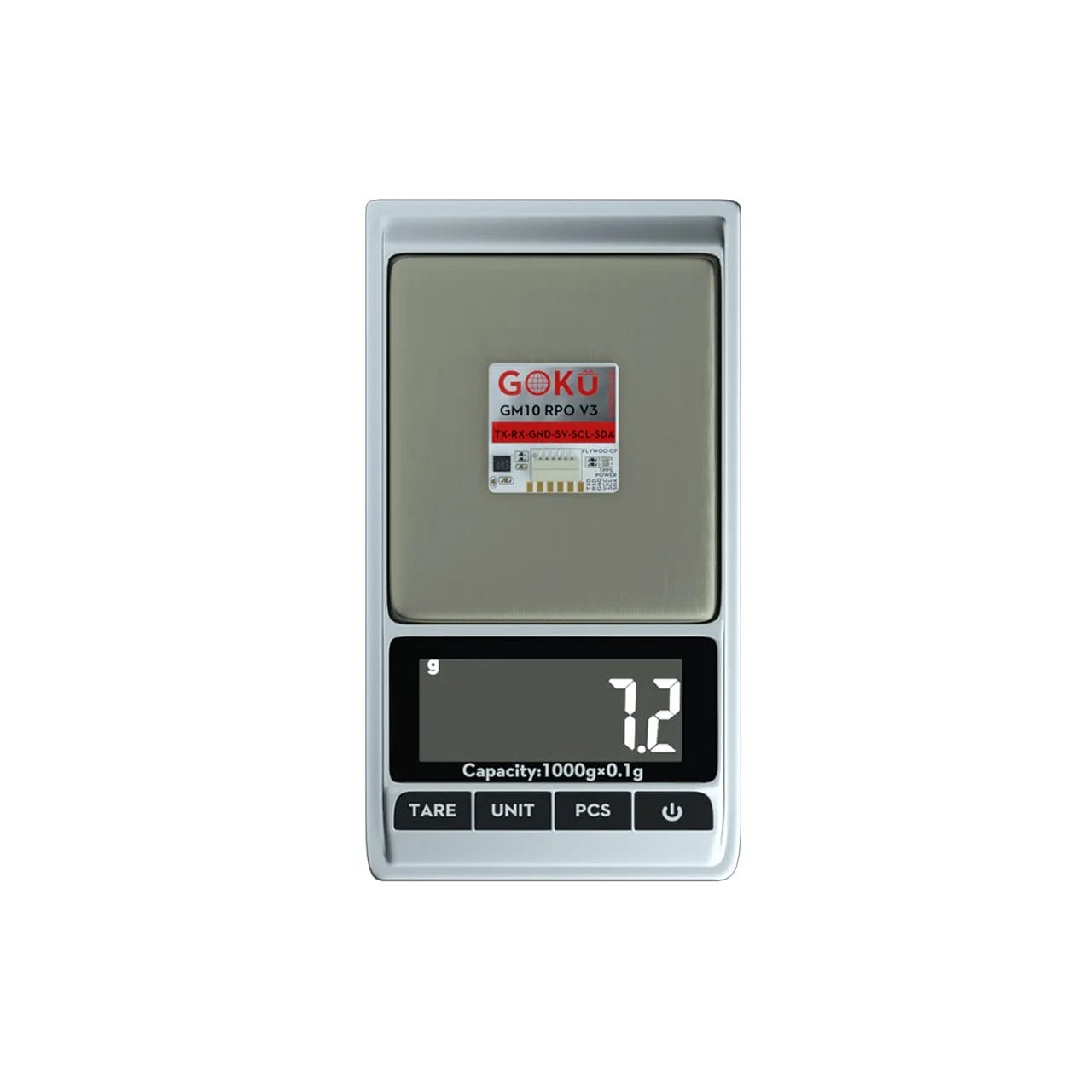

  • Weight : 7.3g
  • Connector : 1.00mm spacing between the 6pins patch seat

Features

  • GPS Module,Three Module Compass
  • With electronic compass IC QMC5883L
  • 1.0mm spacing between the 6pins patch seat

Electrical Characteristics

  • Chipset : M10050(Tenth Generation Chip)
  • Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
  • Default Protocol : GPS,Galileo,BeiDou
  • Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
  • Channels : 72 Searching Channel

Sensitivity

  • Tracking : -162dBm
  • Reacquisition : -160dBm

Data and Update Rate

  • Support Rate : 4800bps to 921600bps,Default 115200bps
  • Data Level : TTL or RS-232,Default TTL level
  • Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
  • Output frequency : 1Hz-10Hz,Default 10Hz

Operational Limits

  • Altitude : 50,000m Max
  • Velocity : 500m/s Max
  • Acceleration : Less than 4g

Power consumption

  • VCC : DC Voltage :5V
  • Operating temp : -40 °C ~ +85°C
  • Storage Temp : -40°C ~ +105°C

Indicator

  • PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

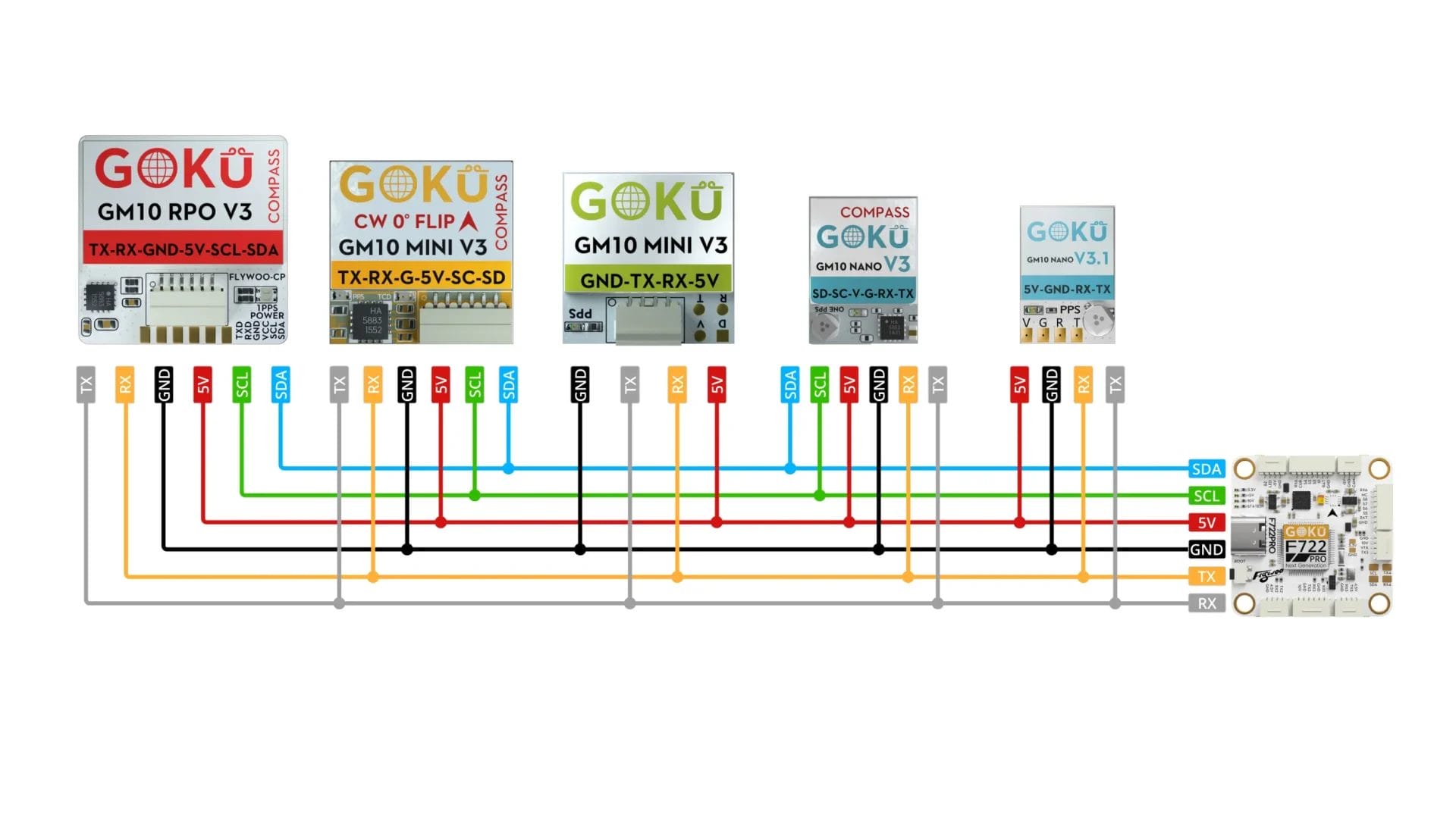

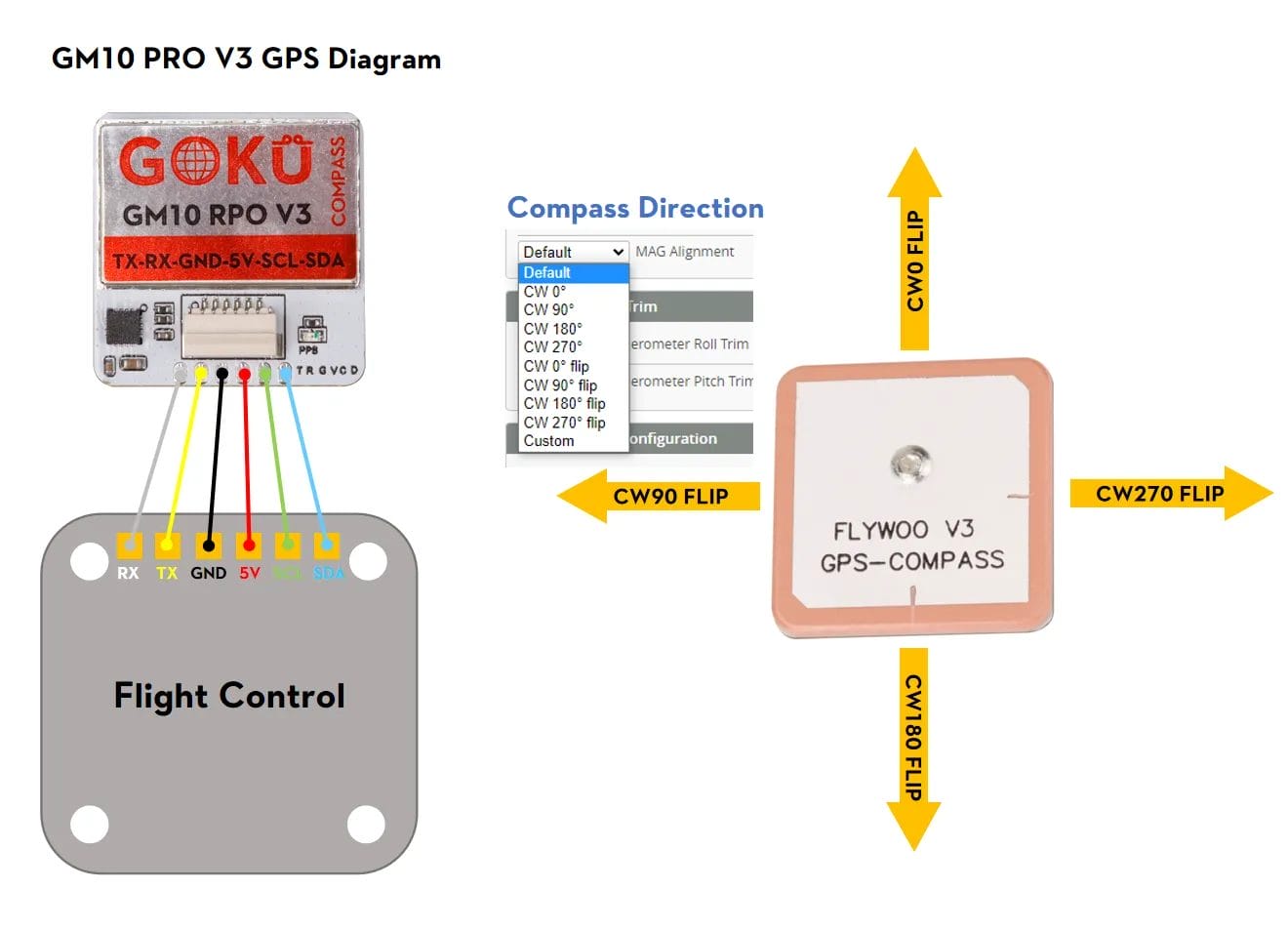

  • The Module’s Pins: TX RX GND 5V SCL SDA

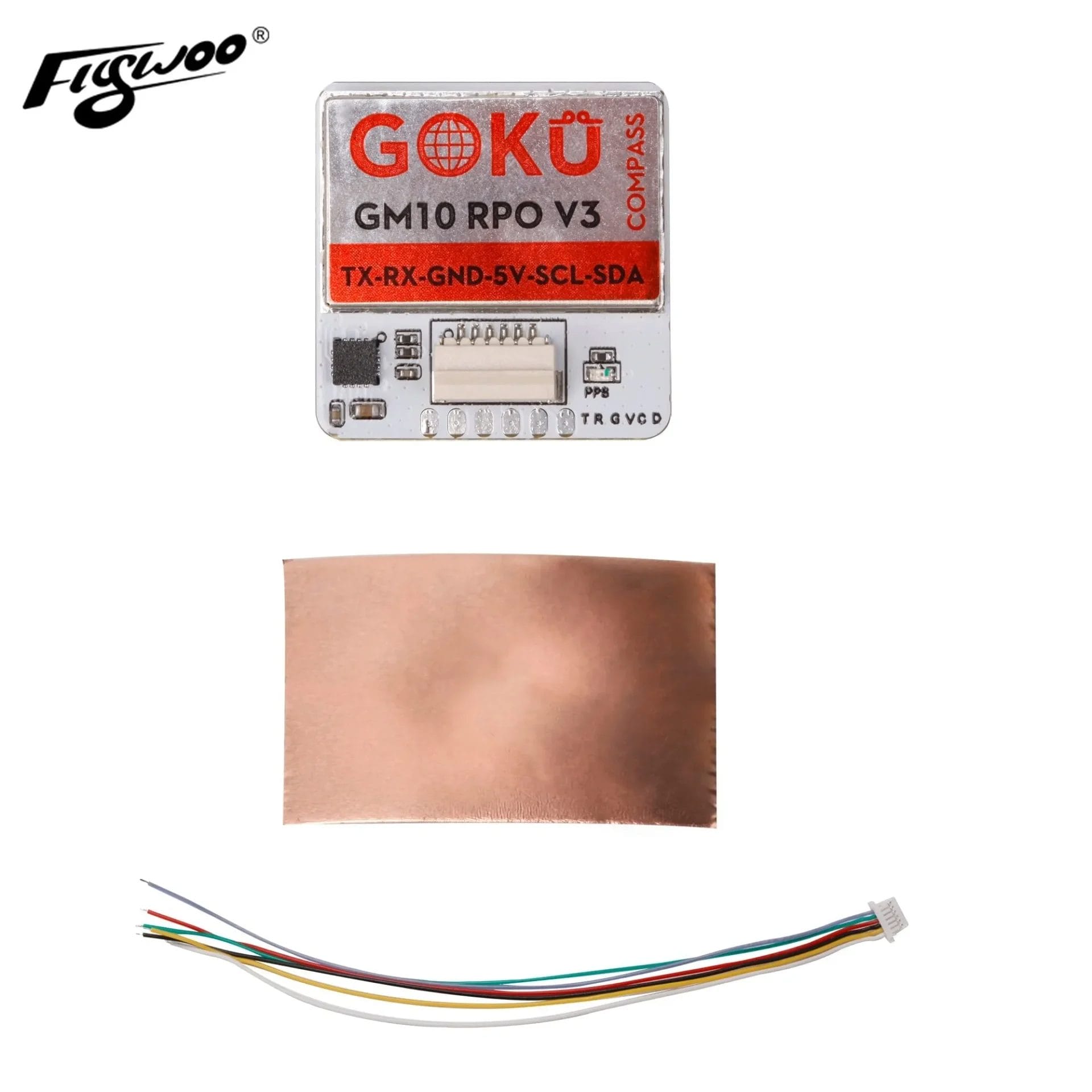

Includes

  • 1x GM10 PRO V3 GPS w/ Compass
  • 1x 150mm Cable
  • 1x Copper Foil

GOKU GM10 Pro V3 GPS with compass MantisFPV 1 GOKU GM10 Pro V3 GPS with compass MantisFPV 2
