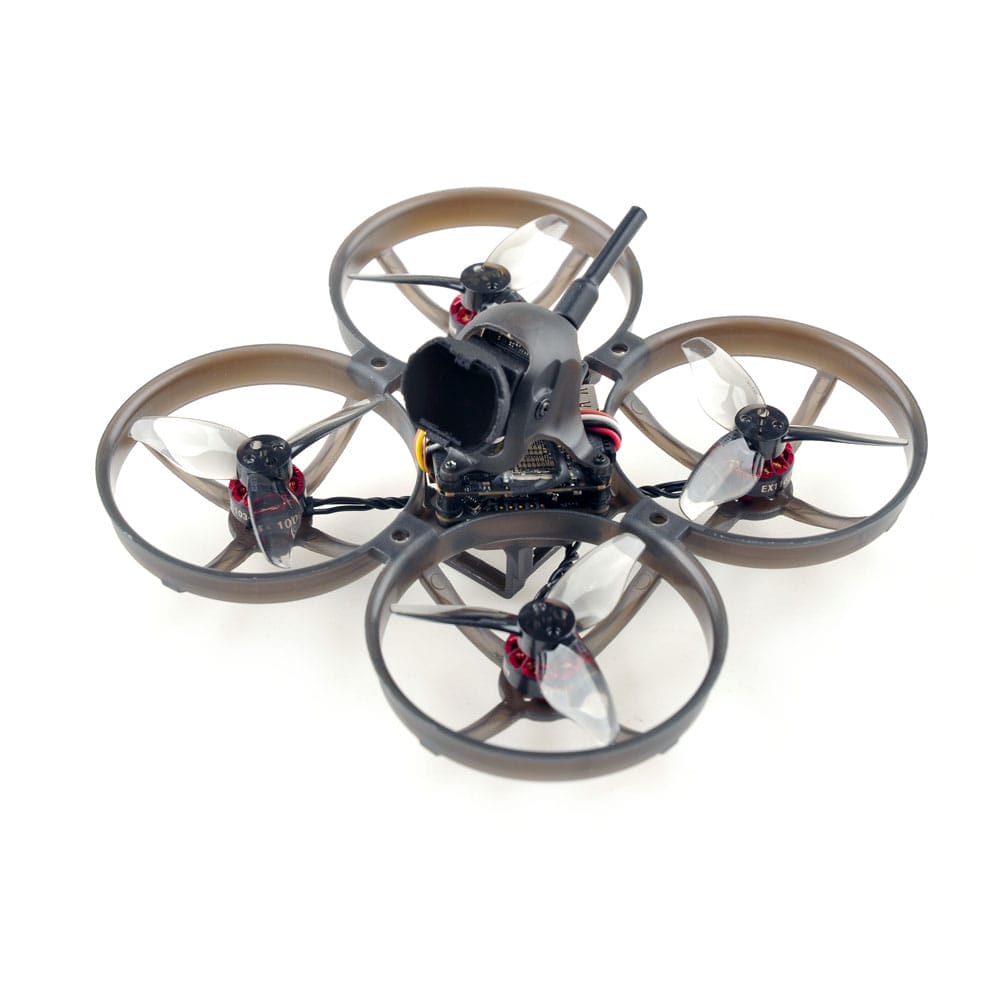

HappyModel Mobula8 O4 2S 85mm Digital HD Micro FPV Whoop

AU$467.03

The HappyModel Mobula8 O4 2S 85mm Digital HD Micro FPV Whoop is a compact 2S-powered whoop with Digital HD video, built for crisp footage and punchy performance in tight spaces. It’s nimble, durable and great for both indoor and outdoor micro FPV flying.

ONLY 1 LEFT

Earn 1,401^ points.
SKU: MF-3524095257 Categories: ,

Description

HappyModel Mobula8 O4 2S 85mm Digital HD Micro FPV Whoop

The HappyModel Mobula8 O4 2S 85mm Digital HD Micro FPV Whoop is a compact 2S-powered whoop with Digital HD video, built for crisp footage and punchy performance in tight spaces. It’s nimble, durable and great for both indoor and outdoor micro FPV flying.

happy model mantisfpv australia brand logo

Features

  • Equipment with DJI O4 air unit and external FOV Extender
  • ND Filters ready
  • 2S battery support Powerful and Smooth freestyle flying
  • UART ExpressLRS receiver support stable control link
  • Recommend use 2S 550Mah battery

Specifications

Motor

  • Model: EX1103 KV11000

  • Configuration: 9N12P

  • Stator diameter: 11 mm

  • Stator length: 3 mm

  • Shaft diameter: 1.5 mm

  • Motor size: 13.5 mm × 15.5 mm

  • Weight: 3.8 g

  • Supported voltage: 1–2S LiPo

Propellers

  • Weight: 0.88 g

  • Material: PC

  • Pitch: 2.3 inch

  • Diameter: 52.17 mm

  • Centre thickness: 5 mm

  • Centre hole diameter: 1.5 mm

Flight Controller

  • MCU: STM32F405RGT6 (168 MHz, 1 MB Flash)

  • Gyro: BMI270 (SPI)

  • Mounting: 25.5 mm × 25.5 mm

  • Power input: 1–2S (2.9–8.7 V)

  • Built-in 4-in-1 ESC: 12 A per channel (BLHeli_S)

  • Built-in Serial ExpressLRS 2.4 GHz

  • Built-in BMP280 barometer

  • Built-in 8 MB blackbox

  • Voltage sensor scale: 110

  • Current sensor scale: 470

Onboard 4-in-1 ESC

  • Power input: 1–2S LiPo / LiPo HV

  • Current rating: 12 A continuous, 15 A peak (3 s)

  • Firmware support: BLHeli_S / Bluejay

  • Factory firmware: Bluejay ESC v0.19

  • Firmware target: Z-H-30

  • Default protocol: DSHOT300

Onboard ExpressLRS 2.4 GHz Receiver

  • Packet rates: 25 / 50 / 150 / 250 / 500 Hz

  • RF frequency: 2.4 GHz

  • Antenna: 31 mm enamelled copper wire

  • Telemetry output power: <12 dBm

  • Default firmware: ExpressLRS v3.0.1

  • Firmware target: HappyModel EP 2400 RX

  • Firmware upgradable via ExpressLRS Configurator

DJI O4 Air Unit

  • Weight (camera included): ~8.2 g

  • Transmission module size: 30 × 30 × 6 mm

  • Camera module size: 13.44 × 12.36 × 16.50 mm

  • Camera cable length: 50 mm

  • Coaxial cable length: 50 mm

  • 3-in-1 cable length: 50 mm

  • Operating frequencies:

    • 5.170–5.250 GHz

    • 5.725–5.850 GHz (region dependent)

  • Transmit power (EIRP):

    • 5.1 GHz: <23 dBm (CE)

    • 5.8 GHz: <30 dBm (FCC / SRRC), <14 dBm (CE)

  • Live view: 1080p at 30 / 50 / 60 / 100 fps

FOV Extender for O4 Camera

  • Weight: 3.2 g

  • Built-in wide-angle lens

  • Field of view: up to 150°

  • 3D-printed camera mount

  • Includes UV, ND8 and ND16 filters

Includes

  • 1× Happymodel Mobula8 frame

  • 1× CrazyF405HD ELRS flight controller (Betaflight F4 target)

  • 4× EX1103 KV11000 brushless motors

  • 1× Gemfan Hurricane 2023 tri-blade propellers (4 CW + 4 CCW)

  • 1× DJI O4 Air Unit (or non-O4 version, depending on option)

  • 1× FOV extender for O4 camera

  • 1× Angle-adjustable canopy

  • 1× Screwdriver
