HDZero AIO5 F4 5A ELRS 2.4 [HDZ5000]

HDZero AIO5 F4 5A ELRS 2.4 [HDZ5000]
HDZero AIO5 F4 5A ELRS 2.4 [HDZ5000] - Image 2
HDZero AIO5 F4 5A ELRS 2.4 [HDZ5000] - Image 3
HDZero AIO5 F4 5A ELRS 2.4 [HDZ5000] - Image 4

AU$176.75

HDZero AIO5 is the world’s first digital video AIO, enabling bind and fly 65mm whoops to weigh less than 19.4g. AIO5 integrates a F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT protocol 4-in-1 ESC, and a 5V/1A BEC.

ONLY 1 LEFT

Earn 530^ points.
Add to Wishlist
Price Match Request
SKU: MF-1611879216 Categories: , ,

Description

HDZero AIO5 F4 5A ELRS 2.4 [HDZ5000]

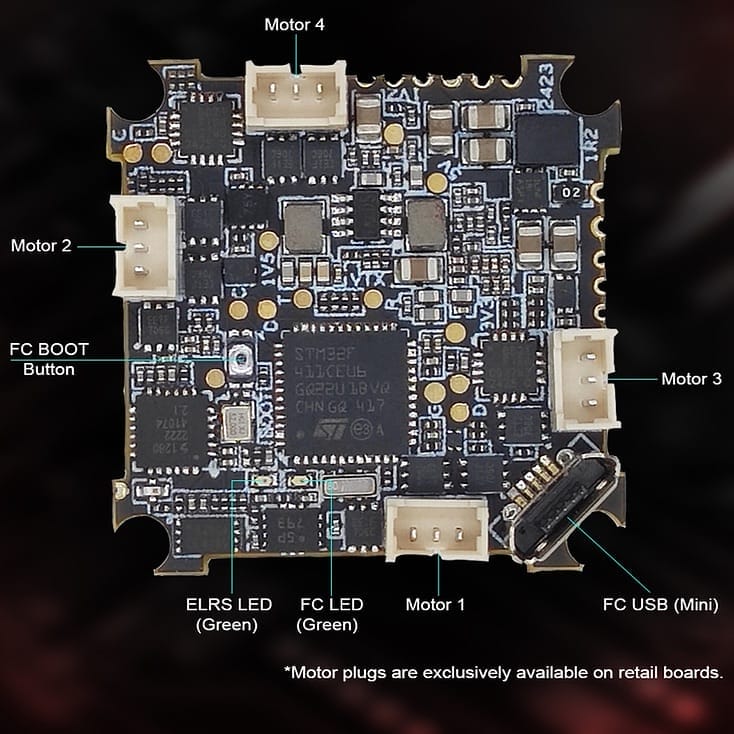

HDZero AIO5 is the world’s first digital video AIO, enabling bind and fly 65mm whoops to weigh less than 19.4g. AIO5 integrates a F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT protocol 4-in-1 ESC, and a 5V/1A BEC.

The minimum voltage has been improved to be 2.5V, which ensures that video never stops transmitting before the motors stop working. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

The HDZero AIO5 is an excellent collaboration between Happymodel and HDZero. It is available at major FPV resellers worldwide, and also at Happymodel and HDZero official online shops.

HDZero Australia Syntegra Banner Logo.png

Specifications

  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • On board voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
    • MCU: EFM8BB21
    • HV Current: 5A continuous peak 6A (3 seconds)
    • Factory firmware: O_H_5_48_V0.19.2.HEX
    • Dshot600 ready
  • Built-in 5.8G HDZero VTX
    • RF output: 25mw/200mW
    • Supported channels: R1-R8, F2/F4, L1-L8
    • UFL connector (ultra-lite linear antenna included)
  • Built-in SPI ExpressLRS 2.4GHz receiver
    • Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

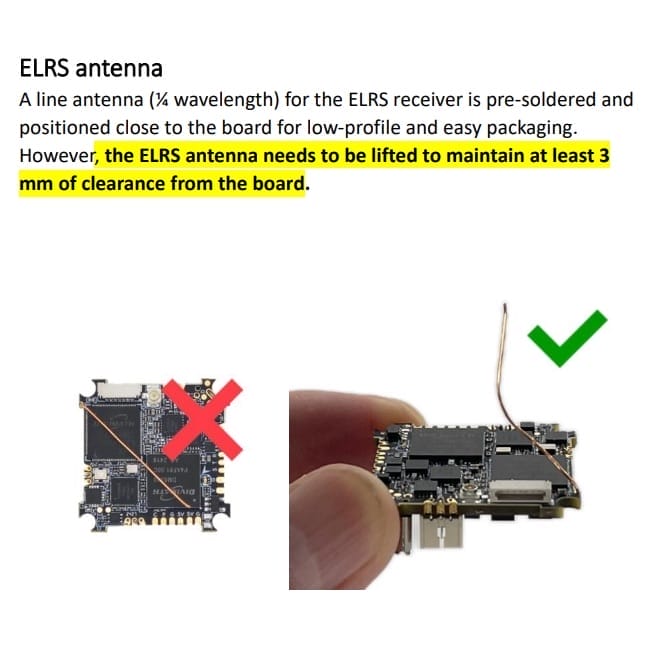

    • Pre-soldered enamel wire antenna
    • Telemetry output power: <12dBm
  • Built-in 5V 1A BEC
  • Flight controller firmware target: CRAZYBEEF4SX1280
  • Power supply: 1S battery (2.5V – 4.35V)
  • Fully compatible with the popular whoop frames
    • Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
  • Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)

Includes

  • 1x HDZero AIO5 board
  • 1x Power cable with inverted angle A30 connector
  • 4x screws
  • 4x rubber grommets
  • 1x ultra-lite linear VTX antenna
