HDZero Gamma 45A HD-Ready AIO (HDZ55GM)
AU$157.13
The HDZero Gamma 45A HD-Ready AIO is a compact, digital-first all-in-one flight controller designed for 2.5–4 inch FPV drones using the popular 25.5×25.5mm Whoop / Toothpick mounting pattern. Built around the STM32G473 MCU, Gamma delivers strong processing headroom for modern Betaflight features while keeping builds clean, simple, and reliable.
ONLY 1 LEFT
Description
HDZero Gamma 45A HD-Ready AIO (HDZ55GM)
The HDZero Gamma 45A HD-Ready AIO is a compact, digital-first all-in-one flight controller designed for 2.5–4 inch FPV drones using the popular 25.5×25.5mm Whoop / Toothpick mounting pattern.
Built around the STM32G473 MCU, Gamma delivers strong processing headroom for modern Betaflight features while keeping builds clean, simple, and reliable.

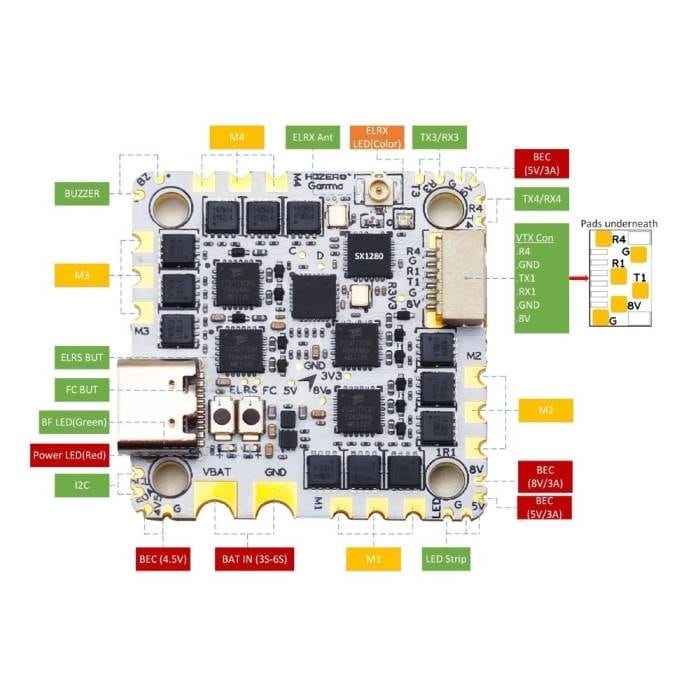

Features
- 25.5×25.5mm Whoop / Toothpick mounting pattern
- Optimised for 2.5–4 inch digital FPV builds
- STM32G473 MCU with ICM gyro
- Integrated serial ExpressLRS 2.4GHz receiver
- 45A continuous / 60A burst 32-bit AM32 4-in-1 ESC
- 8V / 3A protected BEC for digital VTXs
- 5V / 3A BEC for LEDs and peripherals
- Standard digital VTX plug
- Castellated edge pads for clean, easy soldering
Specifications
-
Mounting: 25.5 × 25.5 mm (Whoop / Toothpick), 8.4 g
-
Recommended builds: 2.5–4 inch digital FPV
-
MCU: STM32G473
-
Receiver: Integrated serial ExpressLRS 2.4 GHz
-
ESC firmware: AM32 (32-bit 4-in-1)
-
Motor output: 45 A continuous / 60 A burst (per output), 3–6 s
-
Digital VTX power: Protected 8 V / 3 A BEC
-
Peripheral power: 5 V / 3 A BEC
-
Video integration: Standard digital VTX plug
-
OSD: Analogue OSD chip removed (digital-optimised)
Included
- HDZero Gamma 45A HD-Ready AIO
- 1x ELRS T-sharp short antenna (40mm)
- 5x M2 Rubber Grommet(5.6mm)
- 1x XT30 cable with 330uF/35V capacitor (70mm)
Applications
Ideal for 2.5–4 inch digital FPV drones, including freestyle, racing, training, and drone soccer platforms. Not recommended for heavy 5-inch builds.
Notes
- Designed for digital video systems using a standard digital VTX plug and an 8V / 3A regulated rail.
- 5V rail is intended for peripherals (LEDs, etc.). Use appropriate protection if your wiring could be shorted.
