HGLRC F405 8S Flight Controller ICM42688P
AU$66.48
HGLRC F405 8S Flight Controller with ICM42688P gyro delivers stable, responsive performance with plug-and-play modular design, 16MB BlackBox logging, and support for up to 8S high-voltage power for aggressive flying.
In stock
Description
HGLRC F405 8S Flight Controller ICM42688P
HGLRC F405 8S Flight Controller with ICM42688P gyro delivers stable, responsive performance with plug-and-play modular design, 16MB BlackBox logging, and support for up to 8S high-voltage power for aggressive flying.
Features
- 1. The flight controller gyroscope uses the high-performance ICM42688P for enhanced stability, with MPU6000 gyroscope pads reserved.
- 2. Fully modular, direct-connect design for plug-and-play operation without solder pads, enabling modularity.
- 3. A large 16MB black box ensures sufficient flight data recording.
- 4. Supports 8s of high-voltage, rapid output for extremely fast response, ensuring stable control throughout the flight, allowing for aggressive flight.

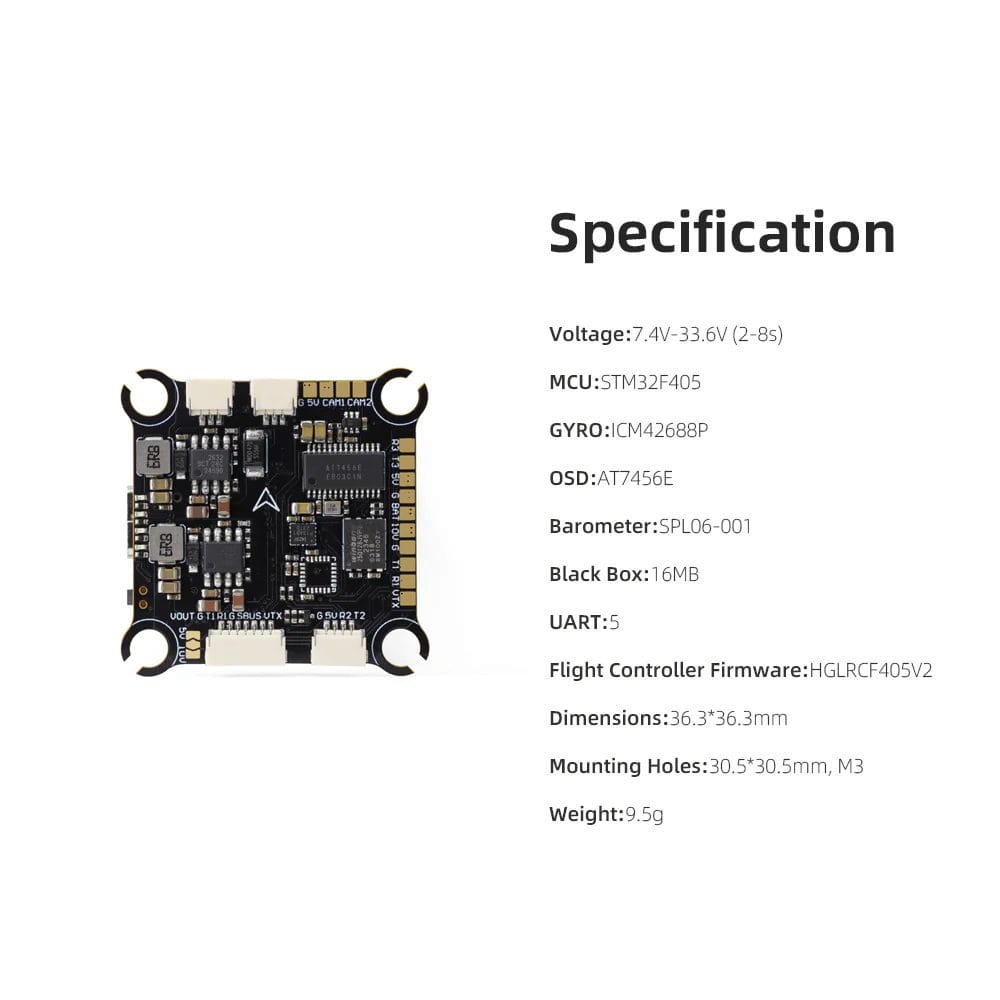

Specfications
- HGLRC F405 8S V1 Flight Controller
- Voltage: 7.4V-33.6V (2-8s)
- MCU: STM32F405
- GYRO: ICM42688P
- OSD: AT7456E
- Barometer: SPL06-001
- Black Box: 16MB
- UART: 5
- Flight Controller Firmware: HGLRCF405V2
- Dimensions: 36.3*36.3mm
- Mounting Holes: 30.5*30.5mm, M3
- Weight: 9.5g

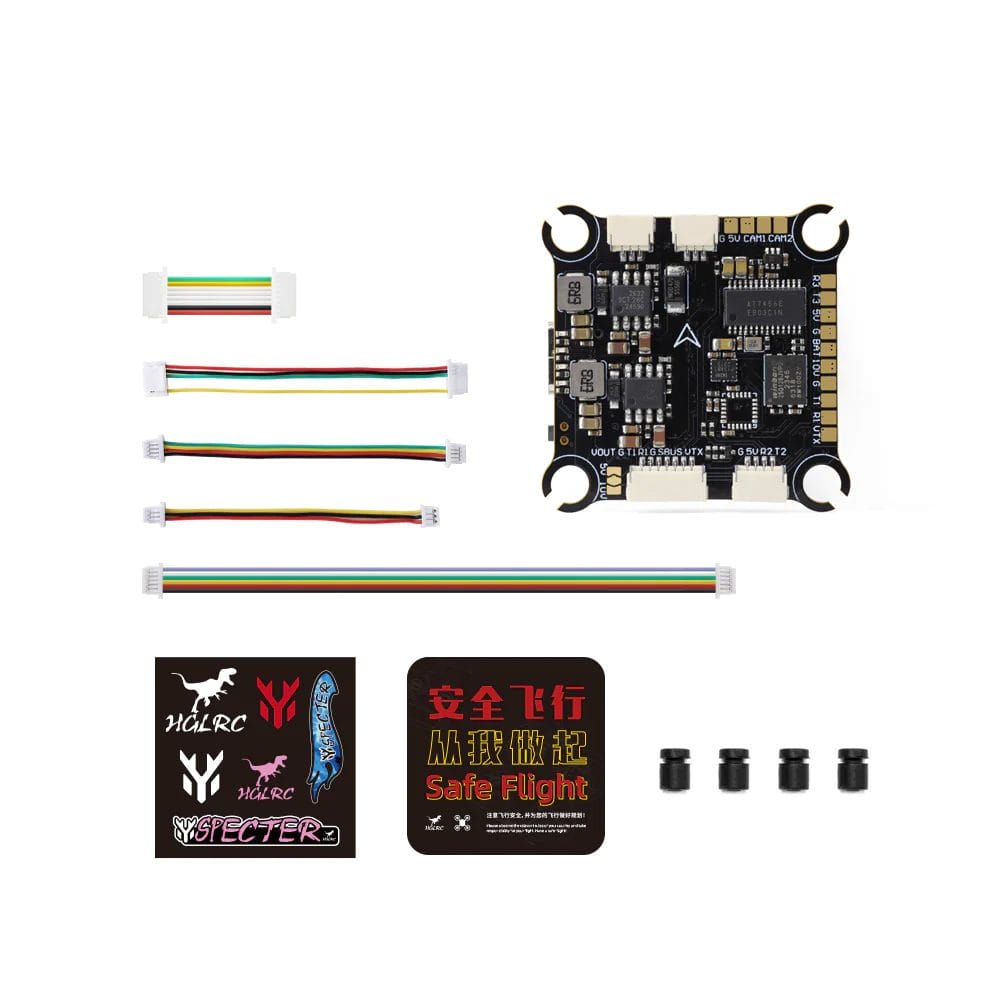

Includes
- 1x HGLRC F405 8S V1
- 1x 30AWG 25mm Dual-End SH1.0-8P Flex Cable
- 1x 30AWG, 70mm Dual-End SH1.0-4P Flex Cable
- 1x 30AWG, 60mm Single-End SH1.0-3P/Single-End SH1.25-3P
- 1x 30AWG 70mm, single-ended GH1.25-6P/single-ended SH1.0-7P
- 1x 30AWG, total length 140mm, double-ended SH1.0-6P
- 4x 3*8 shock-absorbing columns
- 1x HGLRC sticker
- 1x QR code card
