Flywoo Goku H743 PRO 30×30 Flight Controller ICM42688P
AU$103.36
The GOKU H743 Pro 32-bit Flight Controller is Flywoo’s high-end FC built for demanding FPV applications.
It runs on an STM32H743VIH6 processor (480MHz Cortex-M7) and features dual ICM42688P gyros, ensuring smooth, responsive flight performance. The board includes 512MB of blackbox storage, dual BEC outputs (10V 3A / 5V 3A), and 8 motor outputs supporting X8 configurations, making it versatile for advanced builds.
The flight controller supports Betaflight, INAV, and Ardupilot, and comes equipped with buzzer pads, dual-camera switching, GPS and receiver interfaces, analog/DJI VTX support, and dual ESC connectors for clean, straightforward wiring.
A solid choice for freestyle, racing, cinematic rigs, and high-power custom setups, offering reliability, expandability, and excellent performance headroom.
Sold out
Description
Flywoo Goku H743 PRO 30×30 Flight Controller ICM42688P
The GOKU H743 Pro 32-bit Flight Controller is Flywoo’s high-end FC built for demanding FPV applications. It runs on an STM32H743VIH6 processor (480MHz Cortex-M7) and features dual ICM42688P gyros, ensuring smooth, responsive flight performance. The board includes 512MB of blackbox storage, dual BEC outputs (10V 3A / 5V 3A), and 8 motor outputs supporting X8 configurations, making it versatile for advanced builds.
The flight controller supports Betaflight, INAV, and Ardupilot, and comes equipped with buzzer pads, dual-camera switching, GPS and receiver interfaces, analog/DJI VTX support, and dual ESC connectors for clean, straightforward wiring.
A solid choice for freestyle, racing, cinematic rigs, and high-power custom setups, offering reliability, expandability, and excellent performance headroom.
Features
- Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
- Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.

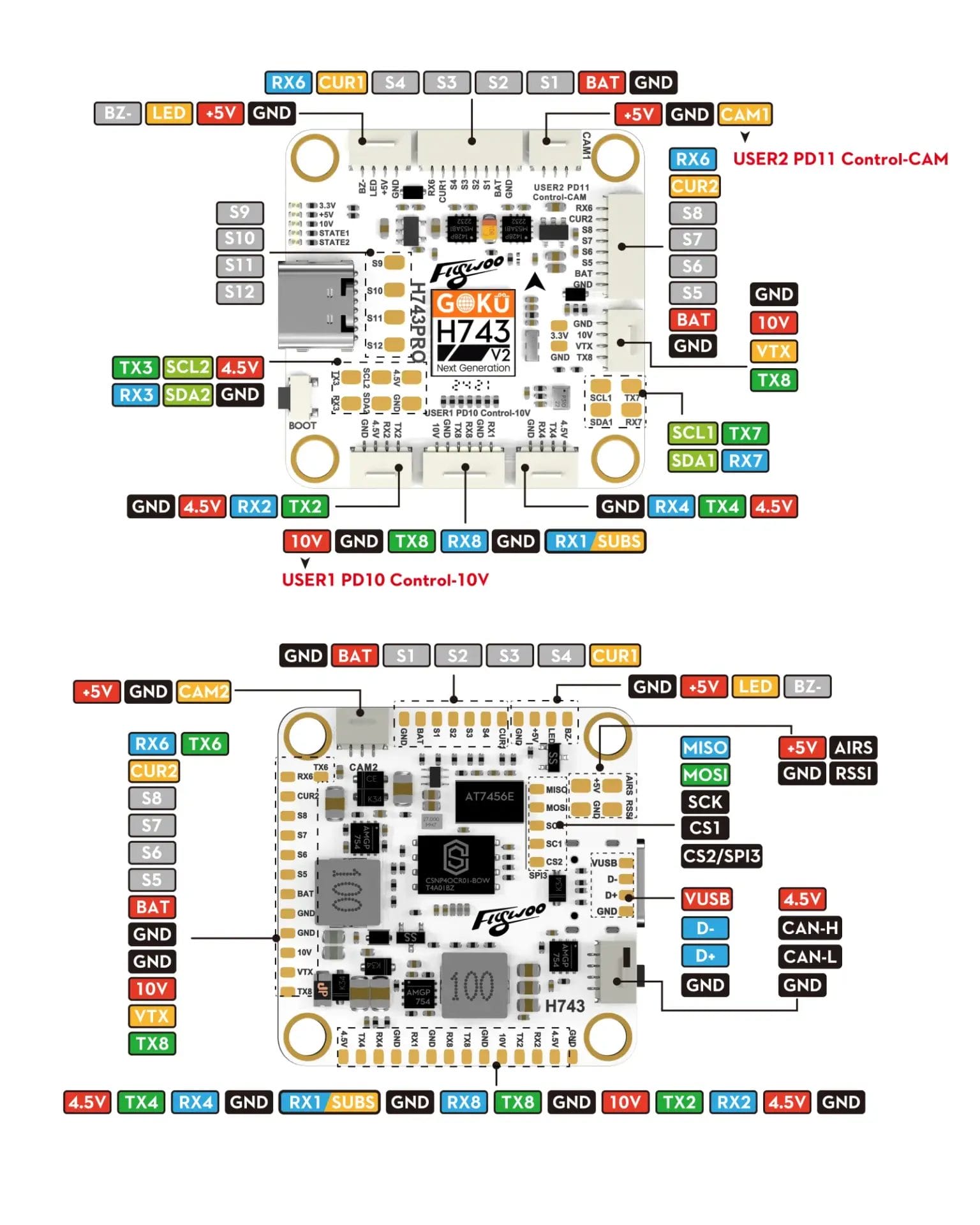

- Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware:Flywoo H743PRO
- Flash: 2MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C:2
- PWM:12
- Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
- BEC: 10V3A/5V3A
- Camera support：CAM1,CAM2
- Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
- Mounting Holes: M3 30x30mm
- Weight: 9.9g
Includes
- 1 x FC&ESC Connection Cable
- 1 x DJI O4/O4P Connection Cable
- 1 x Buzzer Connection Cable
- 1 x Receiver Connection Cable
- 1 x GPS Connection Cable
- 2 x Camera Connection Cable
- 1 x Analog VTX Connection cable
