Matek H743 Mini Wing V3 Flight Controller
AU$148.95

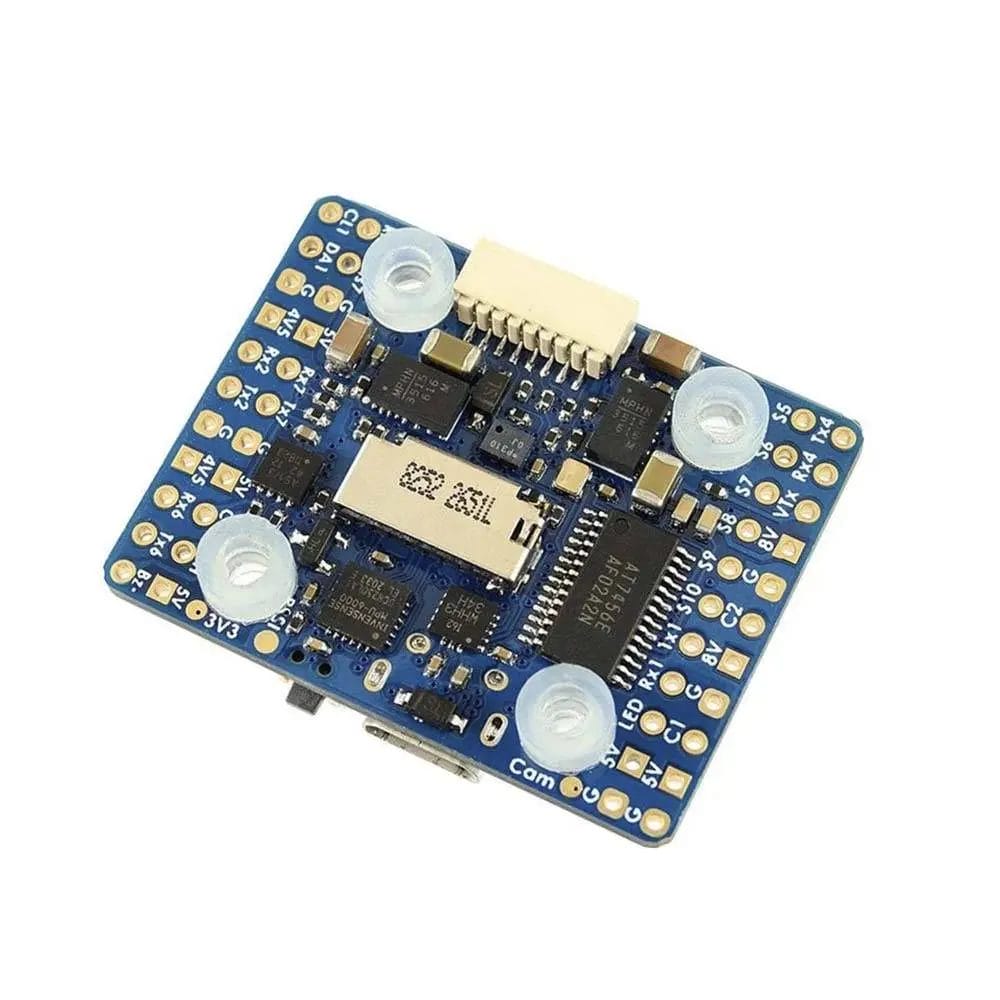

The Matek H743-Mini V3 FC is a powerful flight controller using the HSTM32H743VIT6 MCU running at 480MHz. It is matched with dual gyros ( ICM42688P & ICM42605 ), an Infineon DPS310 barometer, and 11 PWM outputs. Measuring 36x28x6.5mm, this is a full-featured and very worthy choice for anyone looking for a flight controller that can work on quads or wings.
In stock
Description
Matek H743 Mini Wing V3 Flight Controller
The Matek H743-Mini V3 FC is a powerful flight controller using the HSTM32H743VIT6 MCU running at 480MHz. It is matched with dual gyros ( ICM42688P & ICM42605 ), an Infineon DPS310 barometer, and 11 PWM outputs. Measuring 36x28x6.5mm, this is a full-featured and very worthy choice for anyone looking for a flight controller that can work on quads or wings.
Features
- Designed for Stability and Precision
- Firmware Compatibility
- Extensive Connectivity
- Versatile Applications
- Advanced H743 MCU
- Integrated OSD
- Dual IMUs
Specificiations
- MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
- Board V3 IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
- Baro: Infineon DPS310 (I2C2)
- OSD: AT7456E (SPI2)
- Blackbox: MicroSD card socket (SDIO)
- 5.5x Uarts (1,2,4,6,7, Rx8)
- 11x PWM outputs
- 2x I2C (I2C1/DA1 CL1 pads, no I2C2 breakout)
- 1x CAN (C-H, C-L pads)
- 5x ADC (VBAT, Current, RSSI, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- Dual Camera Inputs switch
- 8V power ON/OFF switch

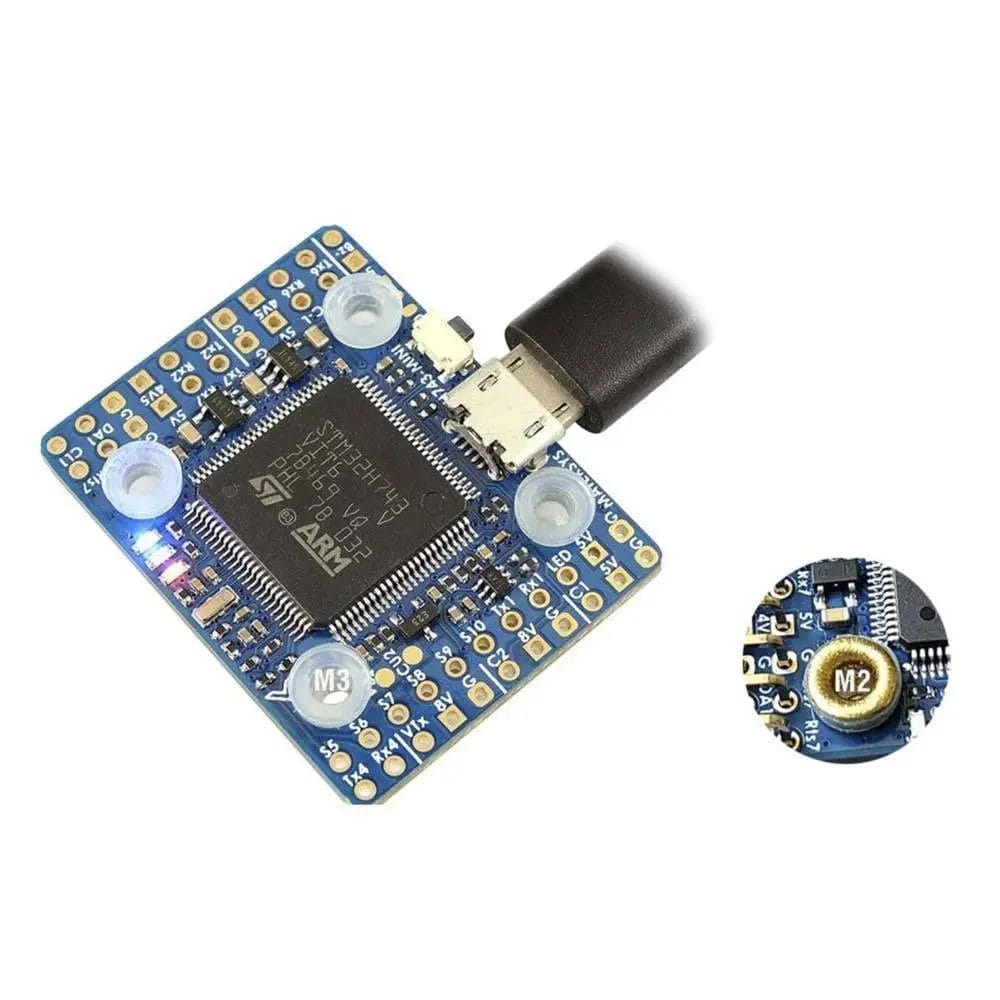

Mounting
- 20 x 20mm/Φ3mm with Silicon Grommets
- 20 x 20mm/Φ2mm with Silicon & Brass Grommets
- Dimensions: 36 x 28 x 6.5mm
- Weight: 7g
POWER
- Vbat Input: 6.3~36V (2~8S LiPo)
- BEC: 5V 1.5A cont. (Max.2A)
- BEC: 8V 1.5A cont. (Max.2A), 8V outputs stable when Vbat>=10V, 8V outputs 80% of Vbat when Vbat< 10V
- LDO 3.3V: 200mA
- VB2 pad supports Max. 69V (voltage divider 1K:20K)
- Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
FC Firmware
- ArduPilot(ChiBiOS): MATEKH743
- BetaFlight: MATEKH743
- INAV: MATEKH743
Includes
- 1x Matek H743-Mini V3 20×20 Flight Controller
- 6x Silicon Grommets M4 to M3
- 6x Brass Grommets M3 to M2
- 1x JST-SH1.0_8pin Cable, 5cm
- 2x JST_SH1.0_8pin Connectors
