Holybro X650 Development Kit Pixhawk 6C M10 433Mhz
AU$2,998.07

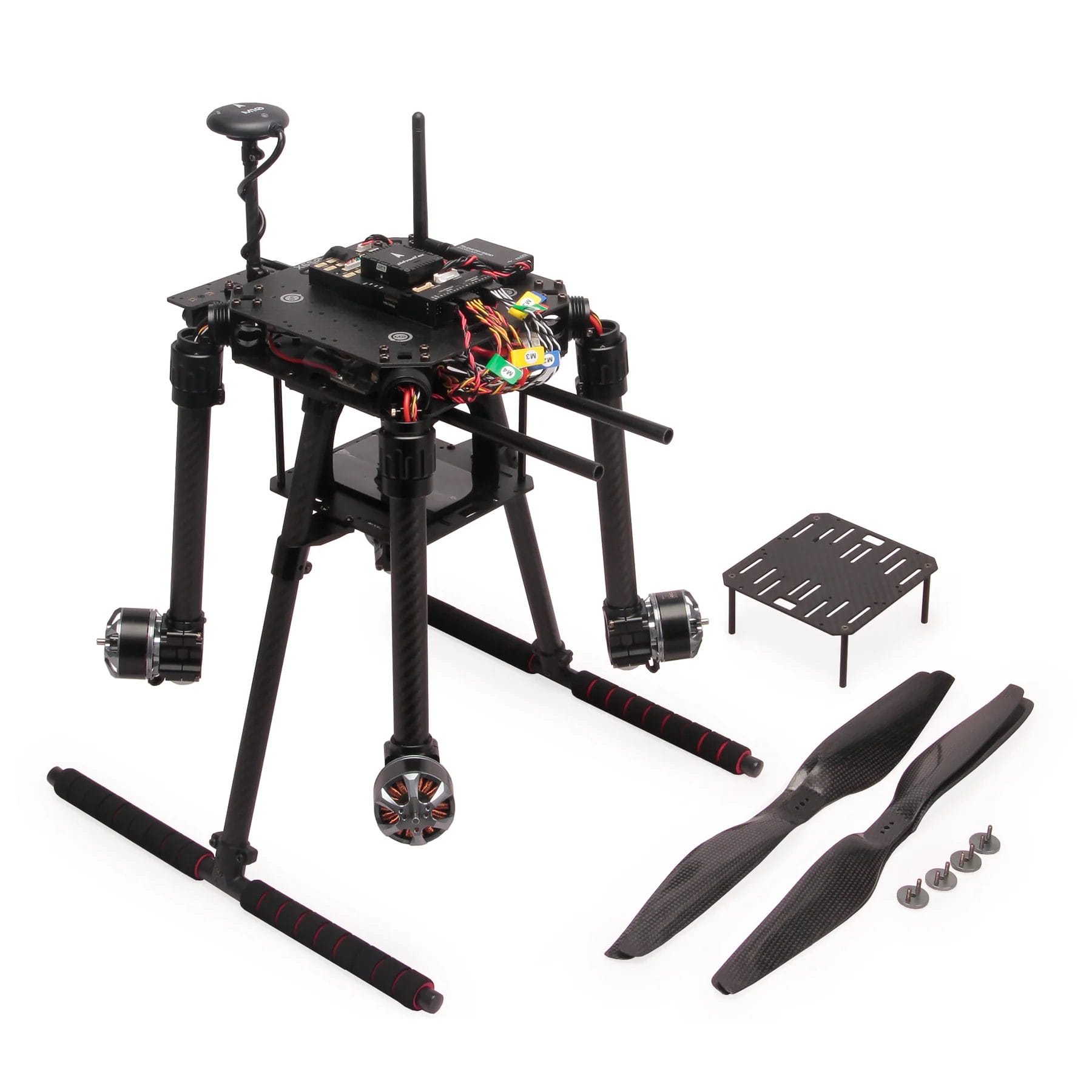

The X650 Development Kit is a robust, easy-to-assemble, and affordable professional drone development platform, designed for enthusiasts, researchers, and developers. Featuring a full carbon fibre frame, Pixhawk 6C or 6X flight controller, M10 GPS, and plug-and-play SiK Telemetry Radio, the X650 makes building and flying your drone quick, simple, and solder free.
Sold out
Description
Holybro X650 Development Kit Pixhawk 6C M10 433Mhz
Professional Drone Development Kit
The X650 Development Kit is a robust, easy-to-assemble, and affordable professional drone development platform, designed for enthusiasts, researchers, and developers. Featuring a full carbon fibre frame, Pixhawk 6C or 6X flight controller, M10 GPS, and plug-and-play SiK Telemetry Radio, the X650 makes building and flying your drone quick, simple, and solder-free.
Features
- Advanced Flight Control – Comes with the Pixhawk 6C or Pixhawk 6X flight controller, compatible with PX4 and ArduPilot firmware.

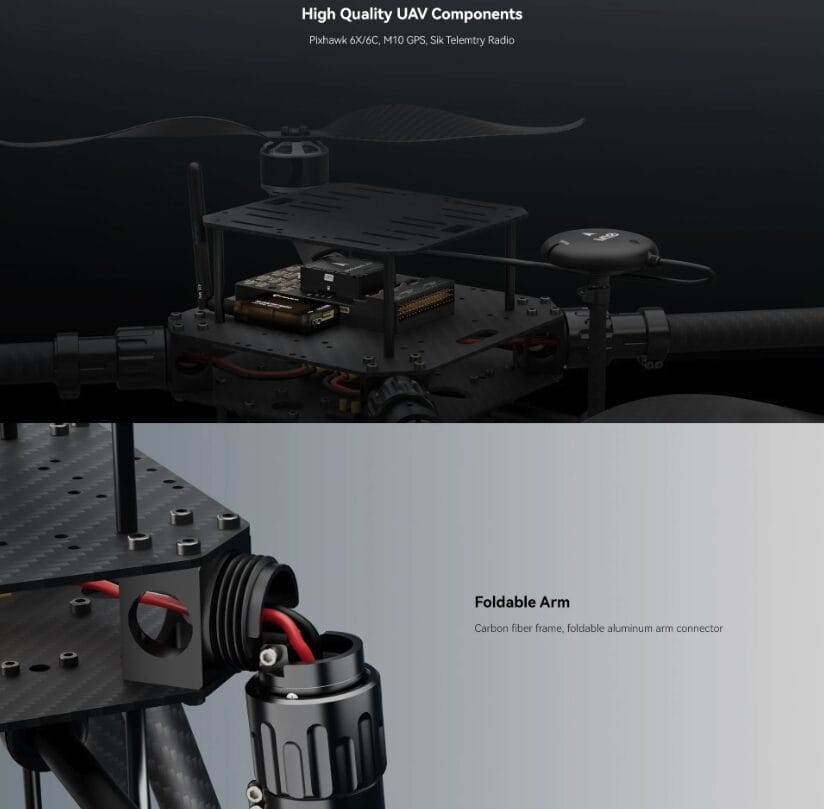

- Premium Carbon Fibre Frame – Durable, lightweight, and designed with foldable aluminium arm connectors.

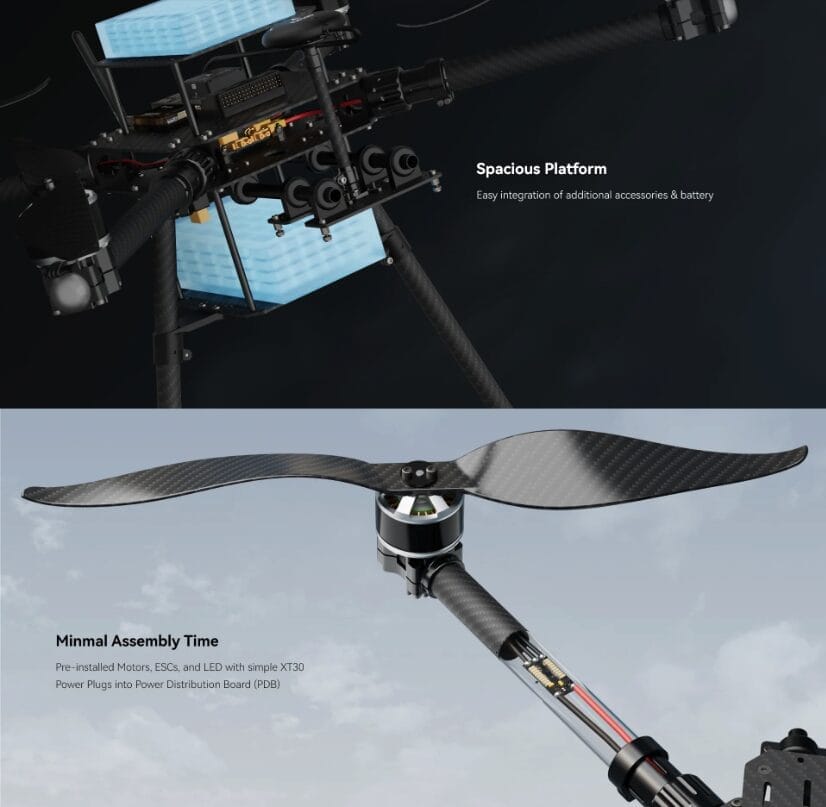

- Solder-Free Assembly – Pre-installed motors, ESCs, and LEDs with plug-and-play XT30 connectors for quick setup.
- Spacious & Versatile Platform – Large mounting plates for batteries, companion computers, cameras, and accessories.
- Optional Depth Camera Mount – Compatible with Intel RealSense and Structure Core depth cameras.
- Ready for Integration – Built-in mounting holes for Pixhawk Jetson baseboards and popular companion computers like Raspberry Pi 4 and Jetson Nano.
- Complete Installation Kit – All required tools are included.
Includes
- Flight Controller: Pixhawk 6C (Plastic Case) + PM02 V3 or Pixhawk 6X v2A + PM02D
- GPS Module: M10 GPS
- Telemetry: SiK Telemetry Radio V3 (433/MHz)
- Frame: X650 V2 Carbon Fibre Frame Kit
- Preinstalled Components:
- 4 × T-Motor MN4014 KV330 Motors (XT30)
- 4 × Tekko32 F4 45A ESCs (XT30)
- 4 × NeoPixel WS2812 LEDs
- 4 × Gemfan 1555 Carbon Fibre Propellers

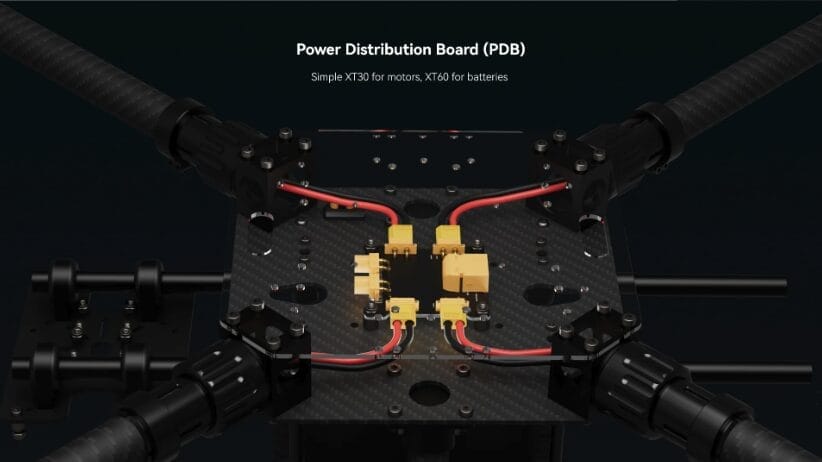

- Power Distribution Board (XT60 for battery, XT30 for ESCs & peripherals)
Frame Specifications
- Wheelbase: 650 mm
- Motor Mount Pattern: 16–25 mm
- Body: 2 mm full carbon fibre top & bottom plates (160 × 160 mm)
- Arms: 20 mm carbon fibre tubes with reinforced aluminium foldable mounts
- Landing Gear: 16 mm & 10 mm carbon fibre tubes with improved connectors
- Upper & Battery Plate: 120 × 128 mm carbon fibre plates for batteries, gimbals, or payloads
- Platform Board: Mounting holes for GPS and companion computers
- Rail System: Dual 10 mm Ø rods, 320 mm length, compatible with various gimbals and mounts
- Installation Tools: Included
Performance & Payload
- Flight Time: Up to 30 minutes (with 6S 10,000 mAh battery, no payload)
- Full Kit Weight: ~2000 g (without battery)
- Payload Capacity:
- 4.3 kg (without battery)
- 3.5 kg (with 5200 mAh / 750 g battery)
- 3.1 kg (with 10,000 mAh / 1200 g battery)
- Takeoff Weight Limit: 6300 g (at 70% throttle)
- Recommended Battery: 6S 5000–12,000 mAh LiPo (XT60 connector, not included)
Firmware Compatibility
- Fully compatible with PX4 and ArduPilot.
- Ships with PX4 pre-installed.
- Switch to ArduPilot easily via Mission Planner or QGroundControl.
