iFlight Nazgul DC5 Full Frame Kit including TPU
AU$124.75
The iFlight Nazgul DC5 frame is a 5″ freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5″ prop control.
ONLY 1 LEFT
Description

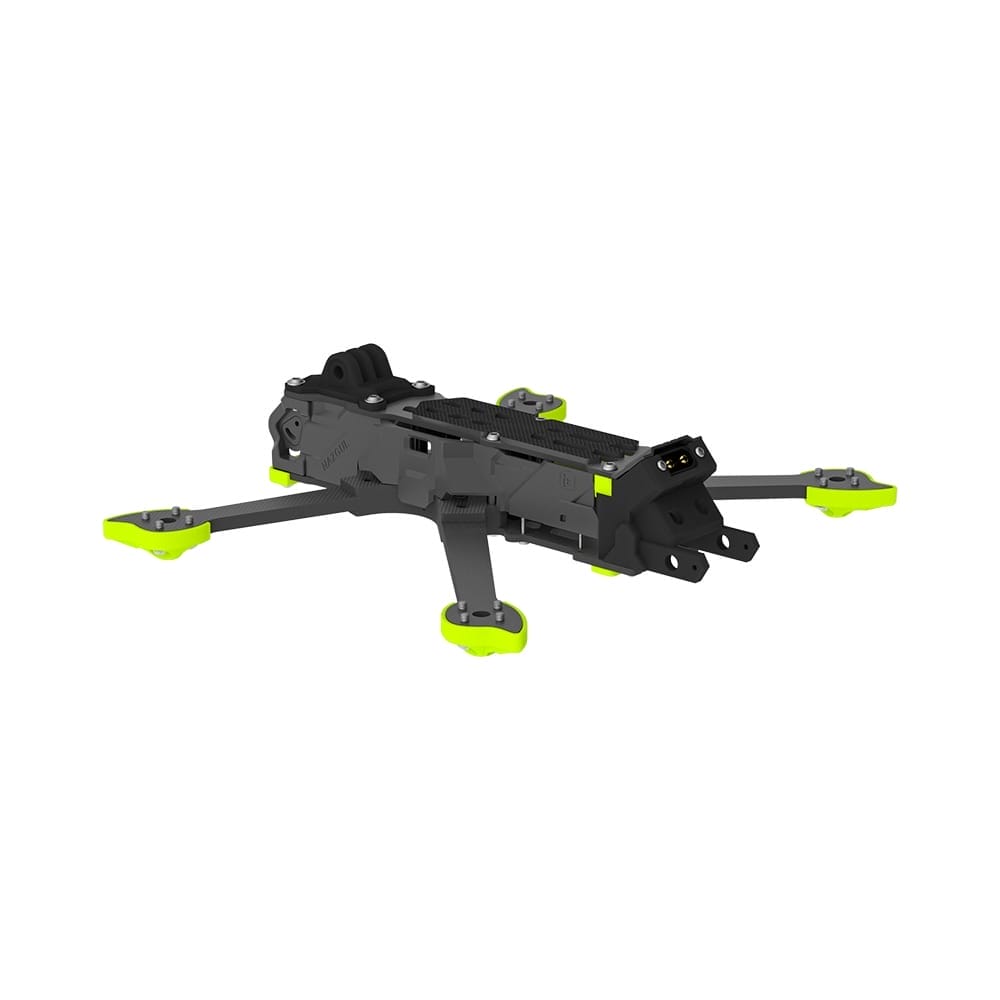

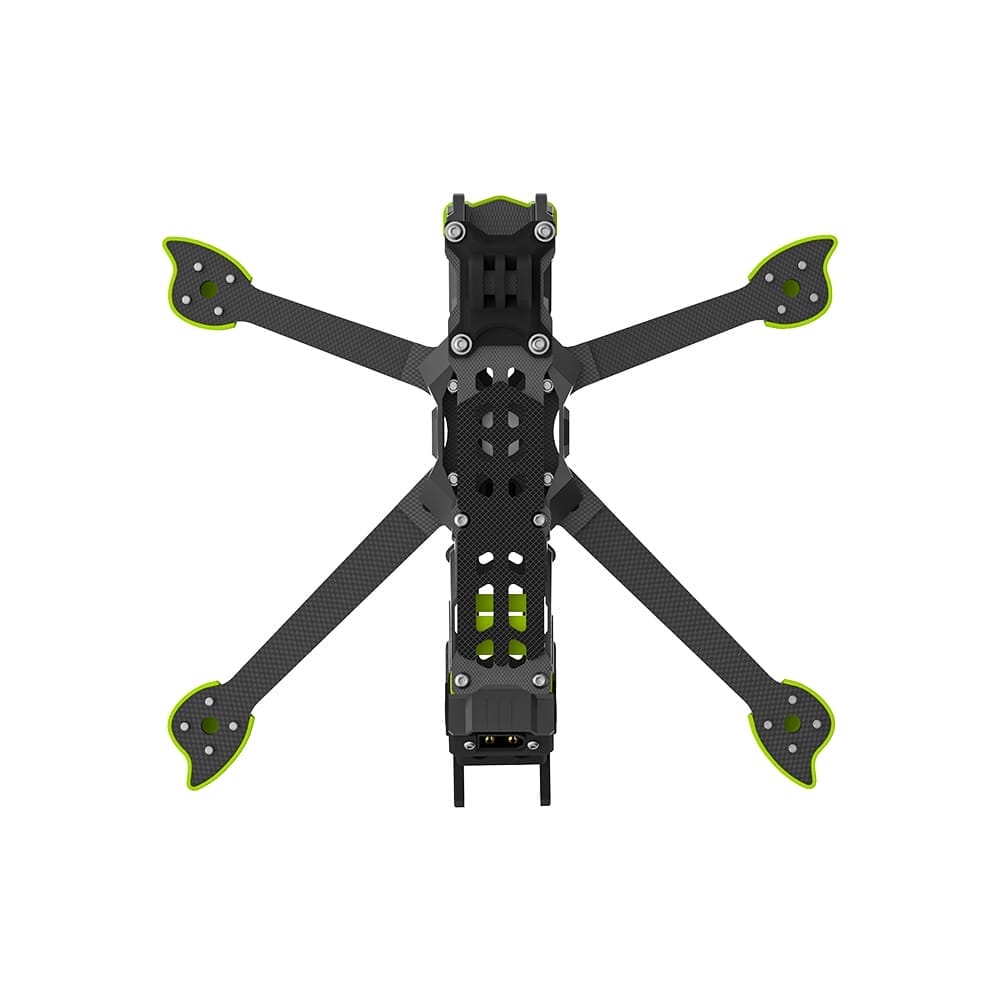

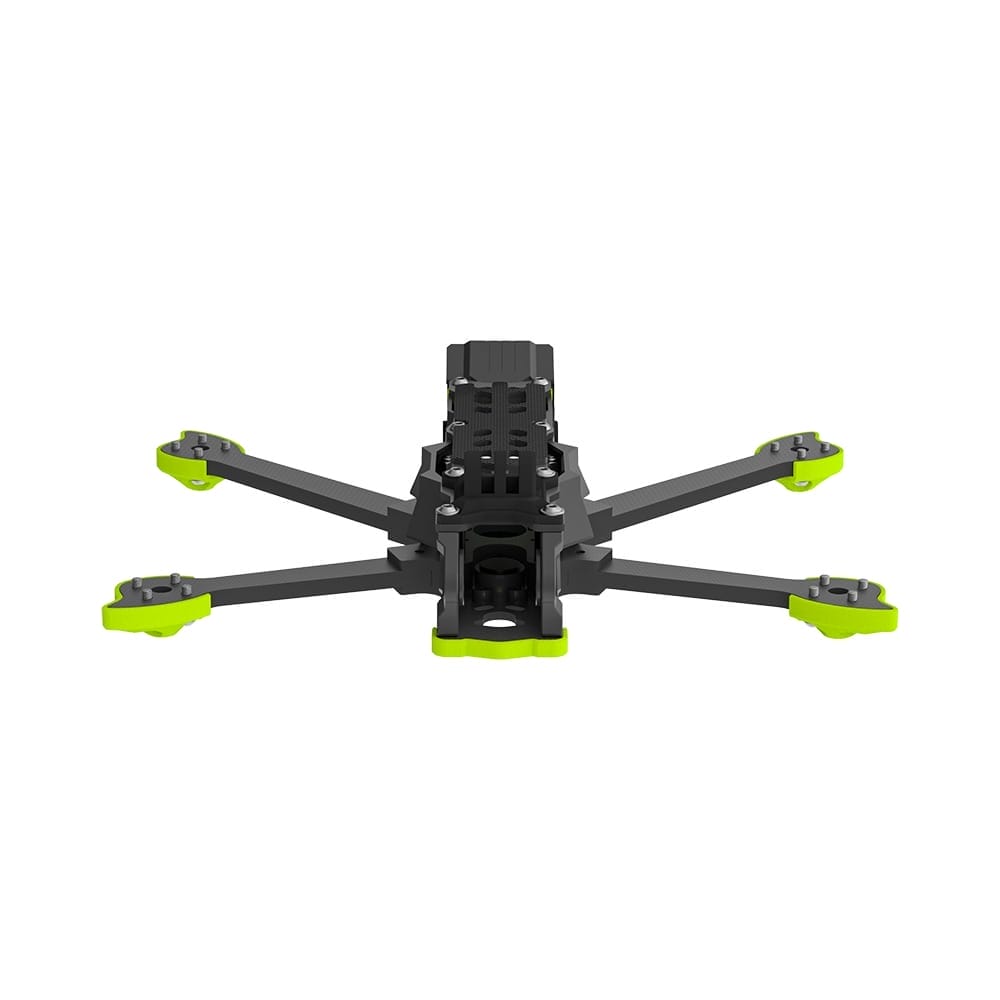

iFlight Nazgul DC5 Full Frame Kit including TPU
The iFlight Nazgul DC5 frame is a 5″ freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5″ prop control. No Props or frame in view! Nazgul DC5 and Nazgul DC5 ECO use the same Frame kit.
Change log:
- July 15, 2024: Battery Plug mount updated to a fixed form. The frame kit was upgraded to V1.1.
- Sept. 10, 2024: Product upgrade, the side panels will be installed by default.
- Sept. 18, 2024: Top Plate upgrade, same as the top plate of Nazgul5 V3 and Nazgul XL5.
Specifications
- Product Name: Nazgul DC5 V1.1 Frame Kit
- Geometry: DC (DeadCat)
- Wheelbase: 240mm
- Frame Dimension: 193*144*34mm
- Arm Thickness: 5mm
- Bottom Plate Thickness: 2.5mm
- Upper Plate Thickness: 3mm
- Internal space height: 29mm
- Max Flight Stack Height: 22mm
- Max VTX Height: 29mm
- FC Mounting: 20*20/Φ2mm 30*30/Φ3mm
- Motor Mounting: 16*16/Φ3mm
- VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ2mm
- Weight: 233g
Includes
- 1 x Nazgul DC5 V1.1 Frame Kit
- 1 x TPU set (Inclu. GoPro TPU Base Mount)
- 1 x Screw Bag
- 2 x Anti-slip Battery Pad
- 4 x Motor Wire Shield Tube
- 2 x Battery Strap(20*250mm)
