TBS Source One V5 5inch FPV frame kit
$14.95 – $54.95

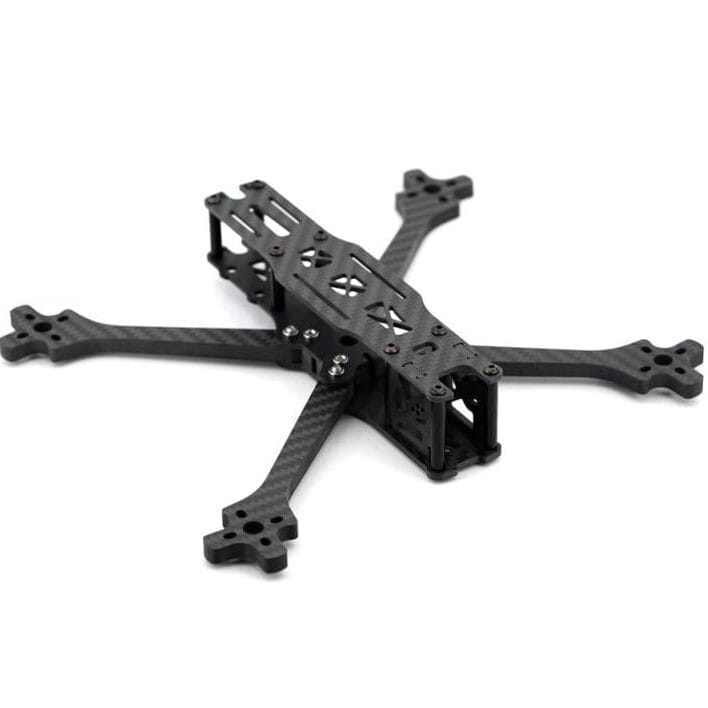

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for lightweight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
Description
TBS Source One V5 5inch FPV frame kit
The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
The SOURCE ONE project is a first-of-its-kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Specifications
- Wheelbase: 226
- Top Plate: 2mm
- Middle Plate: 2mm
- Bottom Plate: 2.5mm
- Arms Spacer: 6mm
- Camera plate: 2mm
- Standoff height: 30 and 22mm
- Arm thickness: 6mm
- Stack Mounting: 30.5×30.5mm & 20x20mm
- Weight: 123.5g
Hardware
- 16X M3x10 Allen screw
- 4X M3x12 Allen screw
- 4X M3x14 Allen screw
- 4X OD 5mm M3 30mm standoff
- 4X OD 5mm M3 22mm standoff
- 8x M3 press insert nut
Optional
- Adding 3D printed parts is an additional option. Please add the frame kit to your cart, and then specify your preferred 3D print base combo. Printing is done on-demand.
Get involved
- Project discussion: https://discordapp.com/invite/ZJGkHwF
- Project files: https://github.com/tbs-trappy/source_one
- Interactive Manual
- 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
- 3D Printed Parts (STL) also avaialble on github!
Additional information
| Brand | |
|---|---|
| Please Choose | Frame kit only (no 3D prints), w/arm bumpers 3D, w/GoPro base mount adapter, Replacement arm (2 pack) |
