NewBeeDrone HummingBird Whoop RaceSpec V2 AIO ELRS 2.4G 400mW VTX
AU$118.47

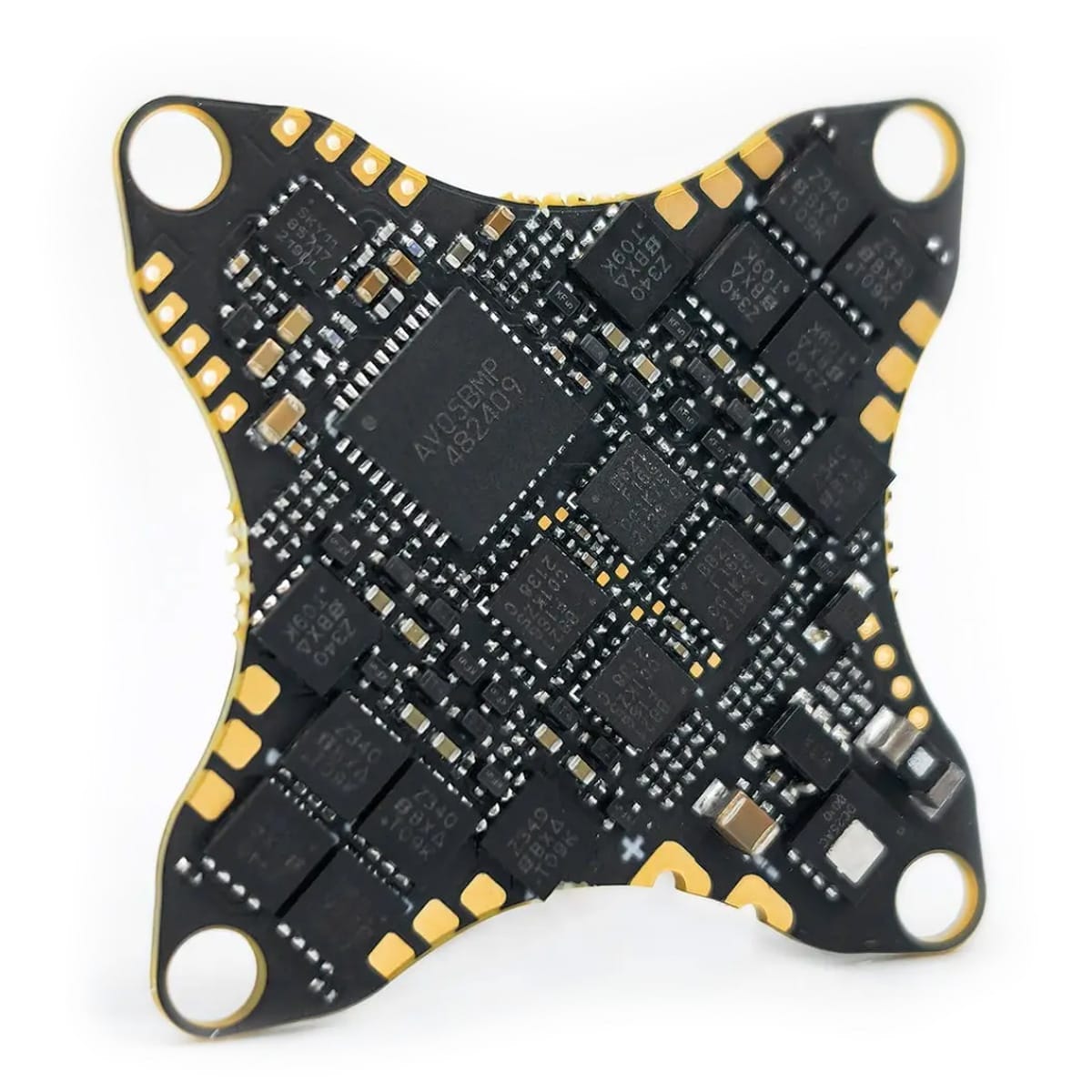

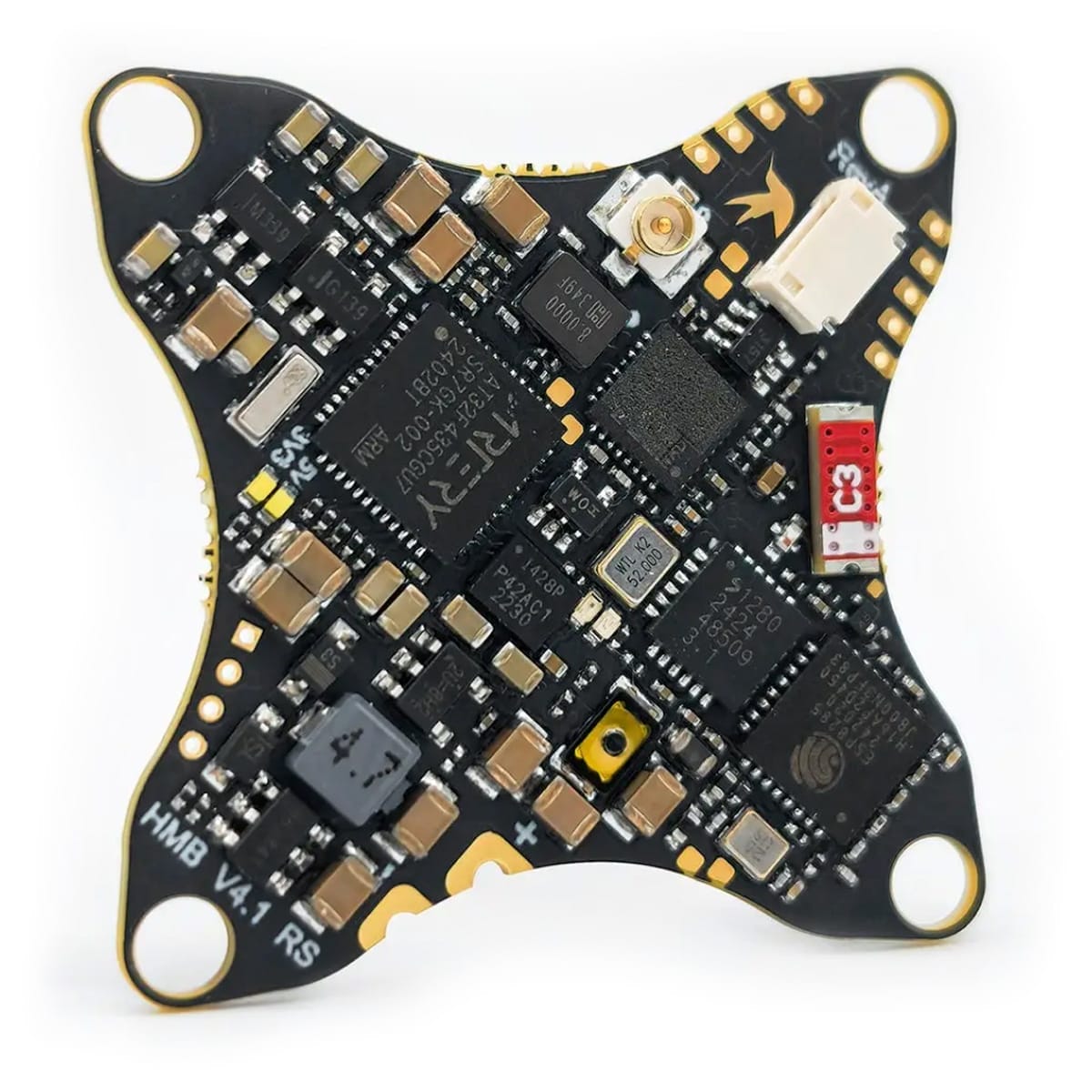

The Hummingbird Whoop RaceSpec V2 AIO Flight Controller with ELRS 2.4G and SmartMax VTX is a refined upgrade to the V3.1 platform, built for serious FPV racers. It now runs an AT32F4 MCU at 216MHz for improved stability under race stress, and features a new double N-channel MOSFET ESC design delivering 18A per channel with cooler, more efficient performance. The ESCs come pre-flashed with Bluejay for smooth throttle control.
ONLY 5 LEFT
Description
NewBeeDrone HummingBird Whoop RaceSpec V2 AIO ELRS 2.4G 400mW VTX
The Hummingbird Whoop RaceSpec V2 AIO Flight Controller with ELRS 2.4G and SmartMax VTX is a refined upgrade to the V3.1 platform, built for serious FPV racers. It now runs an AT32F4 MCU at 216MHz for improved stability under race stress, and features a new double N-channel MOSFET ESC design delivering 18A per channel with cooler, more efficient performance. The ESCs come pre-flashed with Bluejay for smooth throttle control.

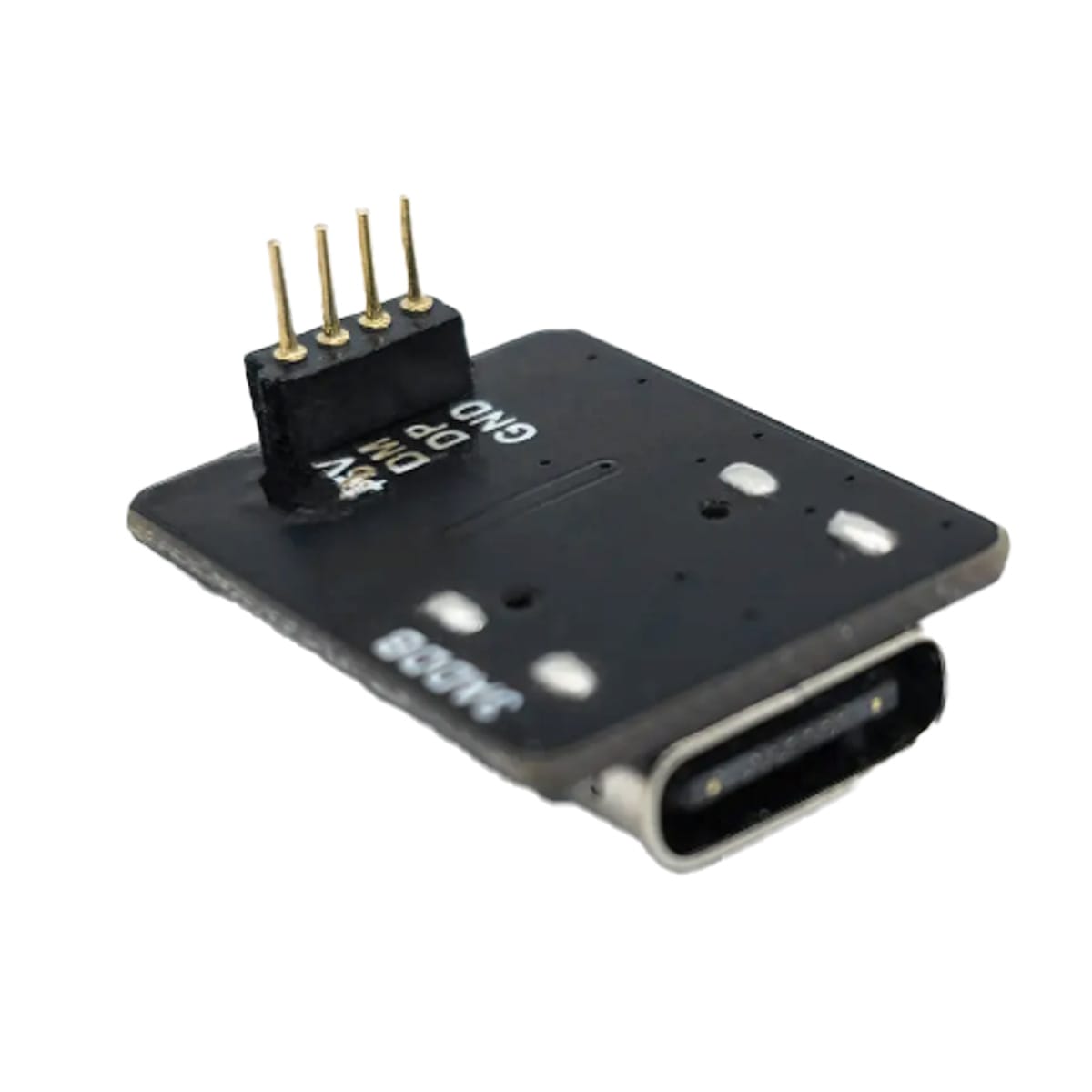

To boost durability and save weight, the V2 removes the onboard USB port and includes a lightweight USB-C adapter, reducing crash-prone failure points. The integrated SmartMax VTX outputs up to 400mW with thermal protection and offers a precise 25mW race-legal mode.

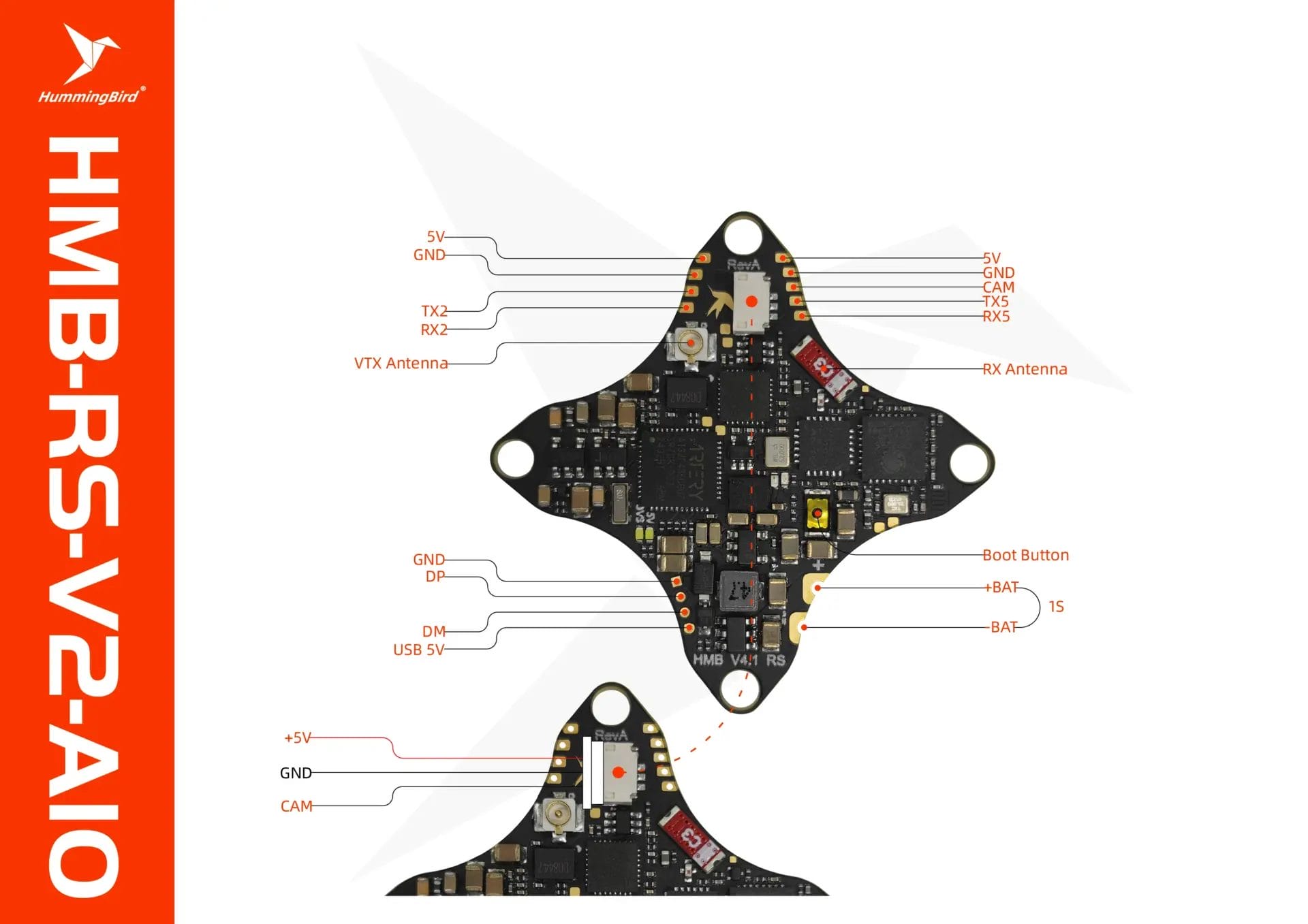

A UART-based ExpressLRS receiver with a ceramic SMT antenna provides race mode and Wi-Fi configuration (ESP8285-based, manual firmware updates required). Larger solder pads replace motor plugs for maximum reliability, and reverse-polarity protection adds peace of mind.
Pair with the BeeEye V2 camera and Betaflight 4.5.1 RacePro for a lightweight 25.5×25.5mm build ready to compete at the highest level.
Specifications
- MCU: AT32F4
- GYRO：42688
- VTX: True 25mw and up to 400mw SmartMax 5.8g Analog VTX
- ESC: 18A pre-flashed with Bluejay 0.19.2 48kHz
- ESC Connector: direct solder Pad Recommend Whoop RaceWire
- OSD: NBD7456 graphical OSD compatible with Betaflight OSD Perfect Edition
- Receiver: Uart ExpressLRS 2.4G with SMT Antenna (ESP8285)
- Flight Controller Weight: 4.71g (Include antennas and battery connector)
- Flight Controller Size: Outer dimensions: 29x29x7.6mm
- Flight Controller Holes: 25.5×25.5mm
- Battery input: 1S Only（Recommend 300mAh 1S 3.8V）
- Uart1:free
- Uart2:free
- Power Plug: GNB A30 Connector compatible with BT2.0
Includes
- 1x HummingBird Whoop RaceSpec V2 Flight Controller
- 1x GNB A30 connector compatible with BT2.0
- 4x Grommet
- 5x Screws
Note:
The Hummingbird Whoop RaceSpec V2 AIO Flight Controller is designed exclusively as a replacement for theHummingbird Whoop RaceSpec V2 BNF Whoop. It is not intended for DIY projects or use with third-party components. Each unit is rigorously tested and double-checked at the factory to ensure flawless operation. We do not provide technical support for this product, and any issues after purchase are considered user error. By purchasing this product, you accept full responsibility for its installation and use. This is a professional-grade product, and we cannot guarantee compatibility or provide support for custom builds.
