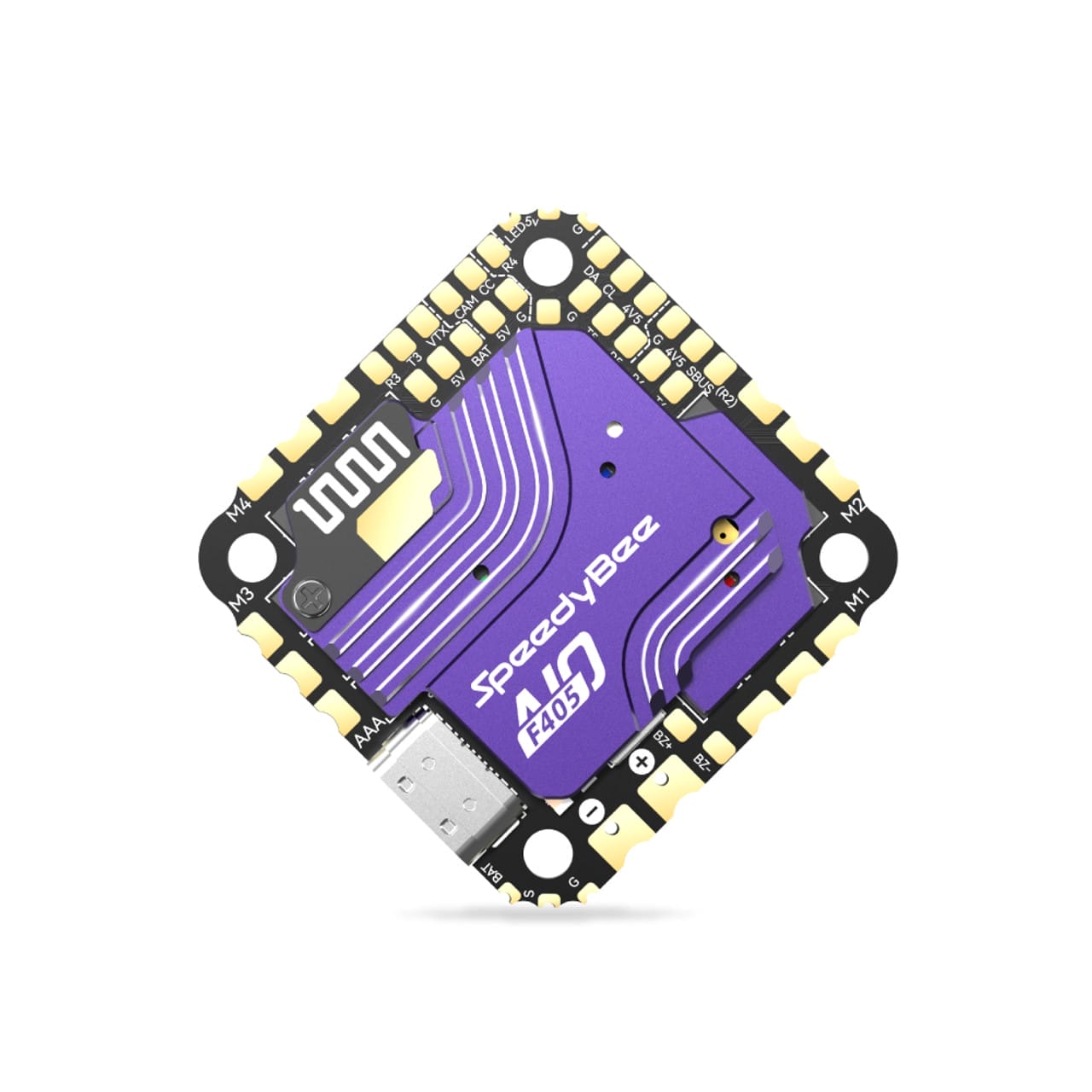

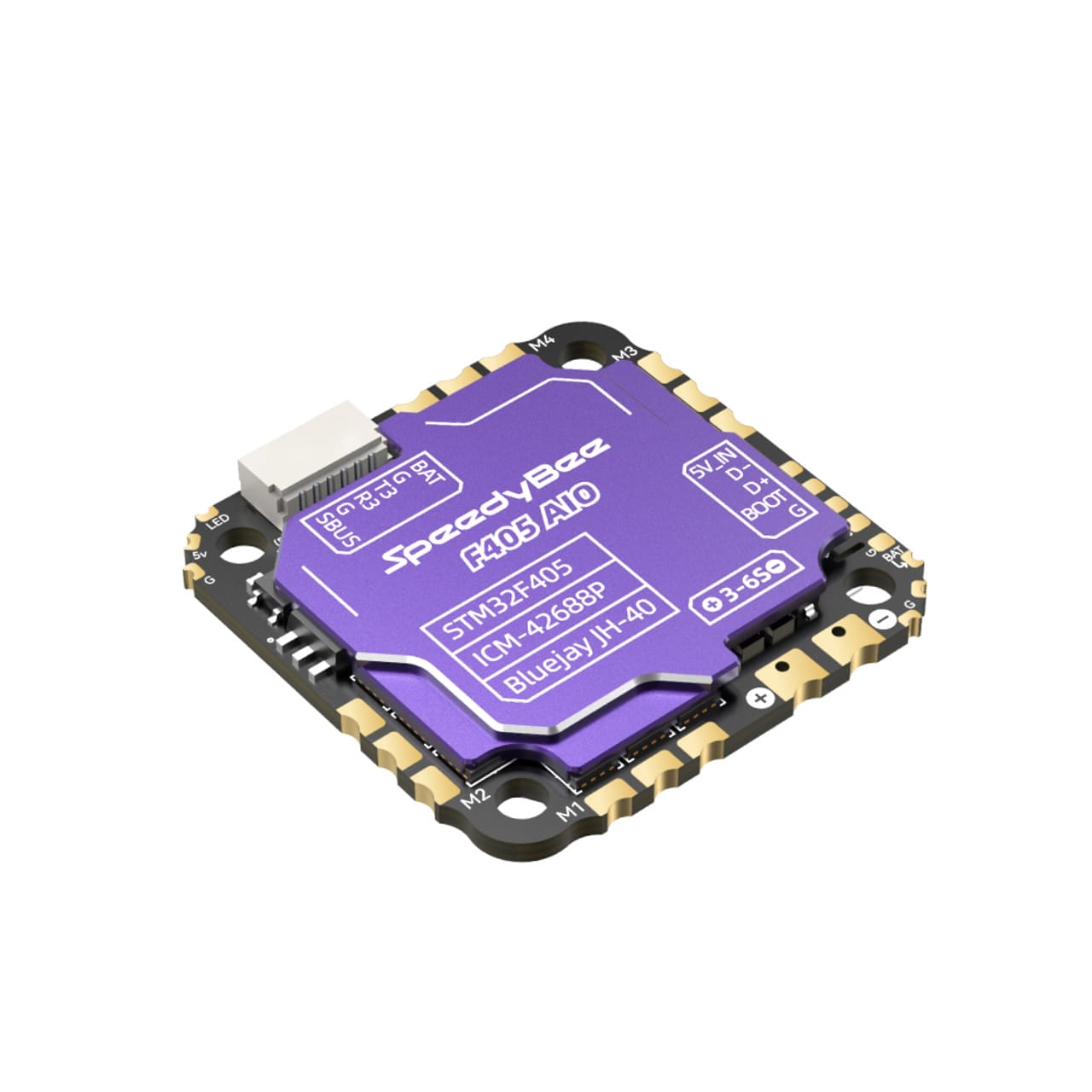

SpeedyBee F405 AIO 40A Bluejay 25.5×25.5 3-6S Flight Controller
Description
SpeedyBee F405 AIO 40A Bluejay 25.5×25.5 3-6S Flight Controller
The SpeedyBee F405 AIO is a compact flight controller with an integrated 40A ESC, supporting 3S–6S LiPo, Betaflight/INAV firmware, Bluetooth configuration, and seamless DJI compatibility for smooth FPV performance.
Specifications
Flight Controller (FC):
- MCU: STM32F405
- Gyro: ICM-42688P
- USB Port: Type-C
- Barometer: SPA06-003
- OSD: Supported
- Bluetooth BLE: Supported (Bluetooth speed enhancement 2.0)
- Wireless Firmware Update: Supported (no physical BOOT button needed)
- Wireless BlackBox Download & Analysis: Not supported
- DJI Air Unit Connection: 6-pin direct insertion or soldering
- 6-pin DJI Sky Port: Directly connects to DJI O3 / RunCam Link / Caddx Vista without rewiring
- BlackBox Flash: 8MB
- Betaflight CC Pads: Supported (camera parameter adjustment)
- Input Voltage: 3S–6S LiPo
- 4V5 Output: 2 outputs, total 1A
- 5V BEC Output: 3 outputs, total 2A (shared with 4V5)

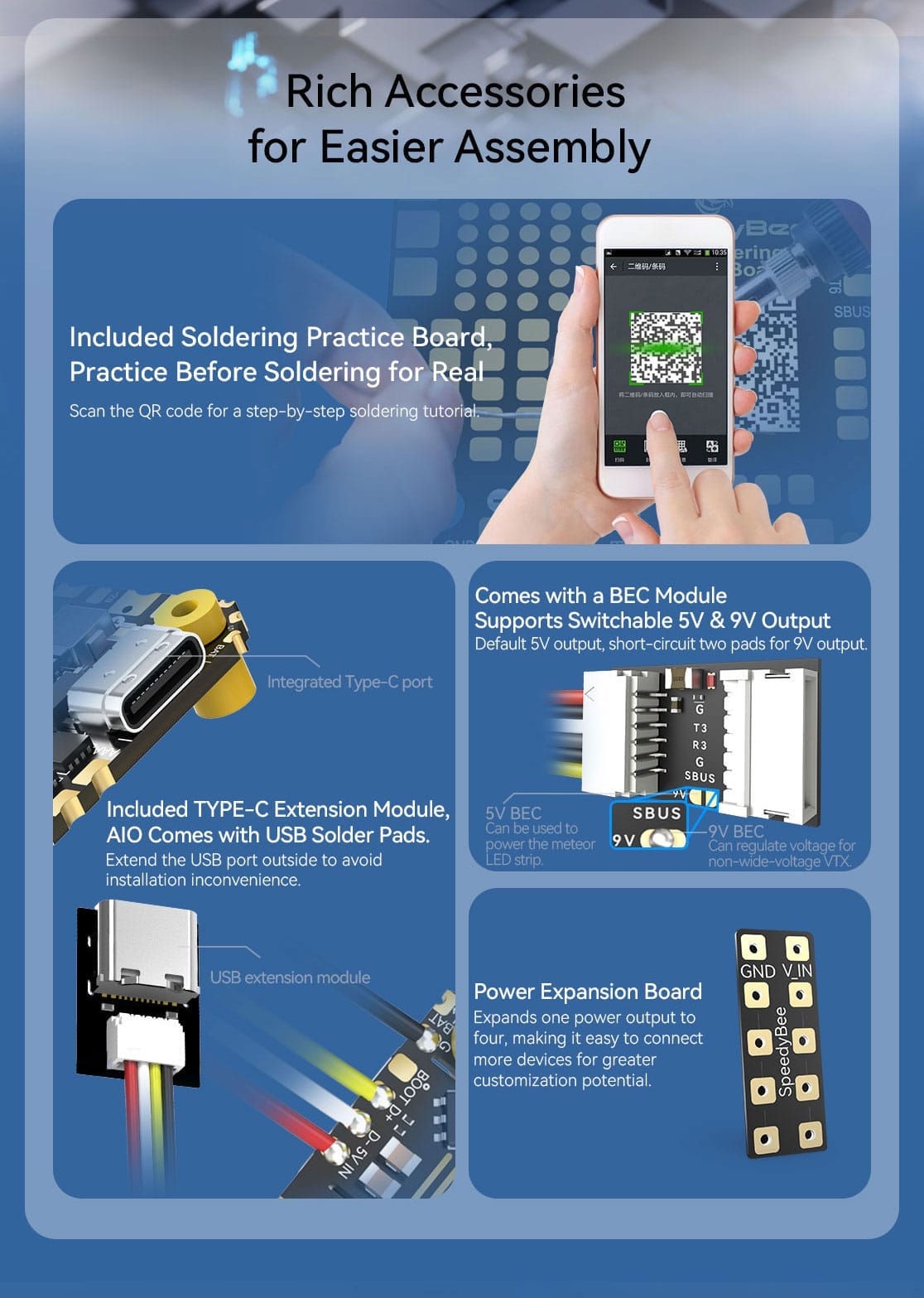

- 9V BEC Output: External BEC module included (switchable 5V/9V, 2A)
- Motor Outputs: M1–M4

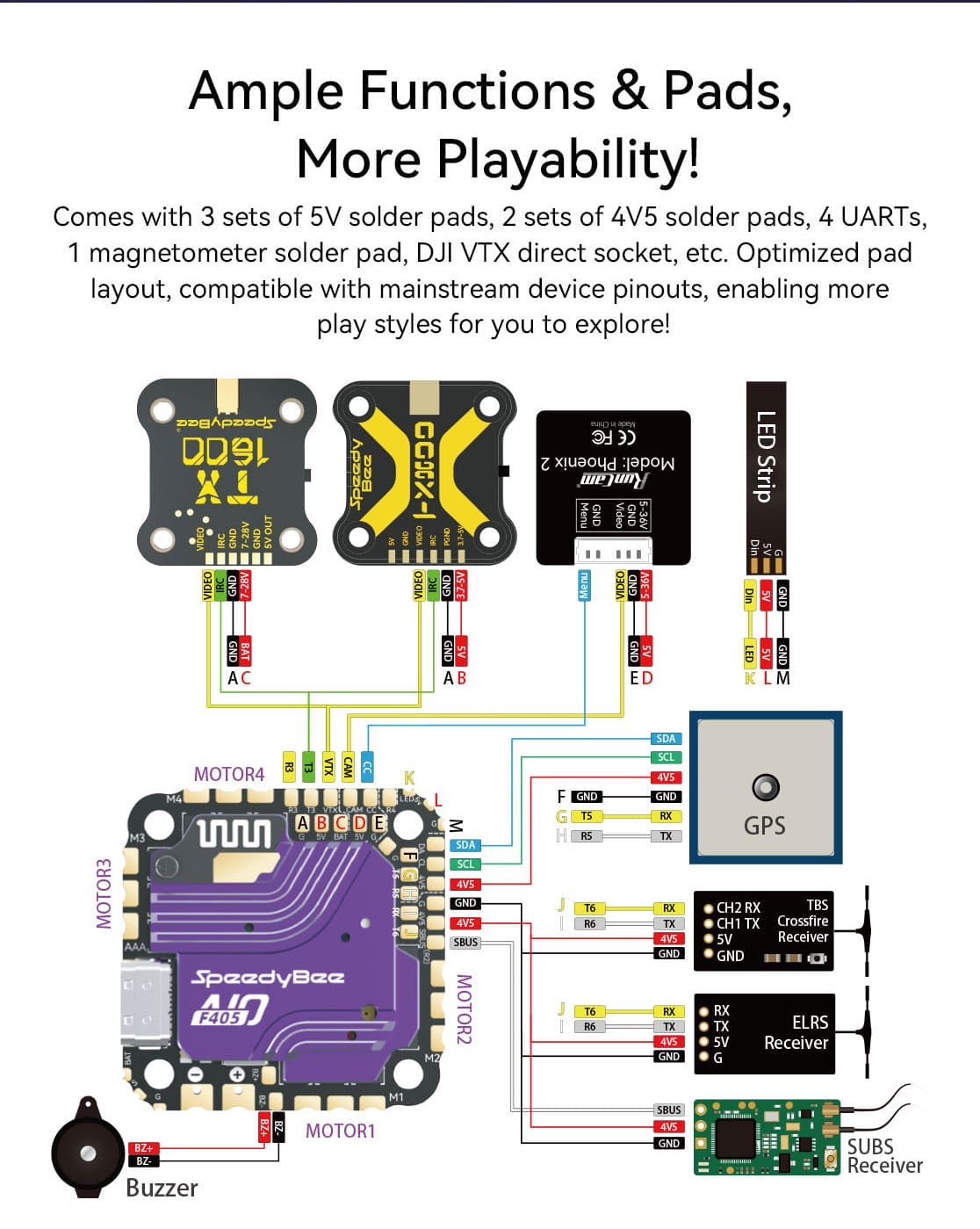

- UART Ports: 4 full-function (UART3, UART4, UART5, UART6 + SBUS[R2])
- ESC Telemetry: None
- I2C Support: Yes
- LED Pads: Supported (WS2812 LEDs)
- Buzzer Pads: Supported (BZ+ / BZ-)
- BOOT Button: Supported (press and hold for DFU recovery)
- RSSI Pads: None
- SmartPort: Not supported
- Supported Firmware: Betaflight (default), INAV
- Firmware Target: SPEEDYBEE F405AIO
- Mounting: 25.5 × 25.5 mm (2 mm hole diameter)
- Dimensions: 33 × 33 × 8 mm
- Weight: 13.6 g (with CNC)
Electronic Speed Controller (ESC):
- Input Voltage: 3S–6S LiPo

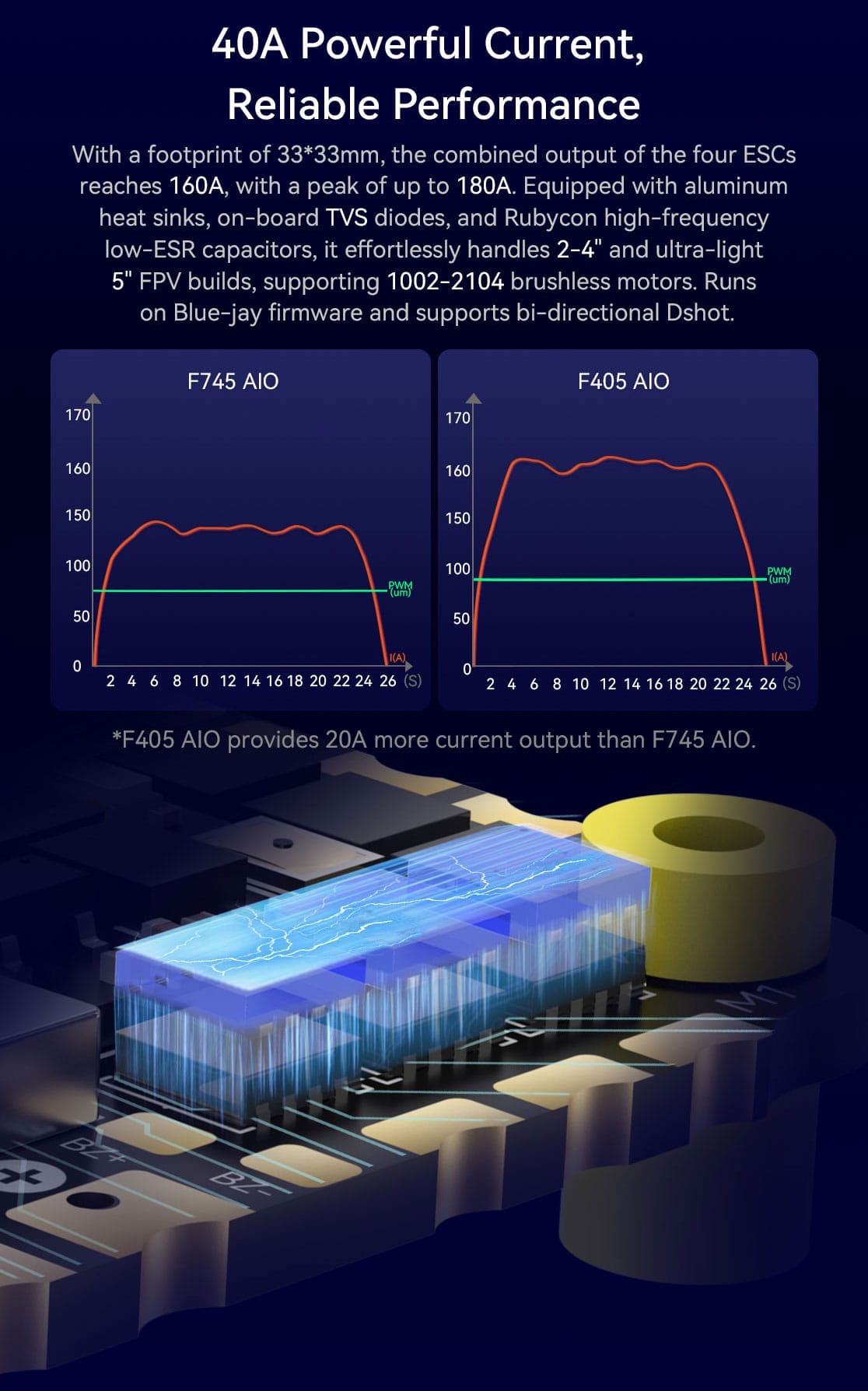

- Continuous Current: 40A
- Burst Current: 45A (10 seconds)
- ESC Protocols: Supports DSHOT600 / DSHOT300 (others may cause errors)
- Output Voltage: VBAT battery voltage (powers the FC)
- Current Sensor: Supported (Scale: 254, Offset: 0)
- Firmware: Bluejay JH-40 @ 48kHz

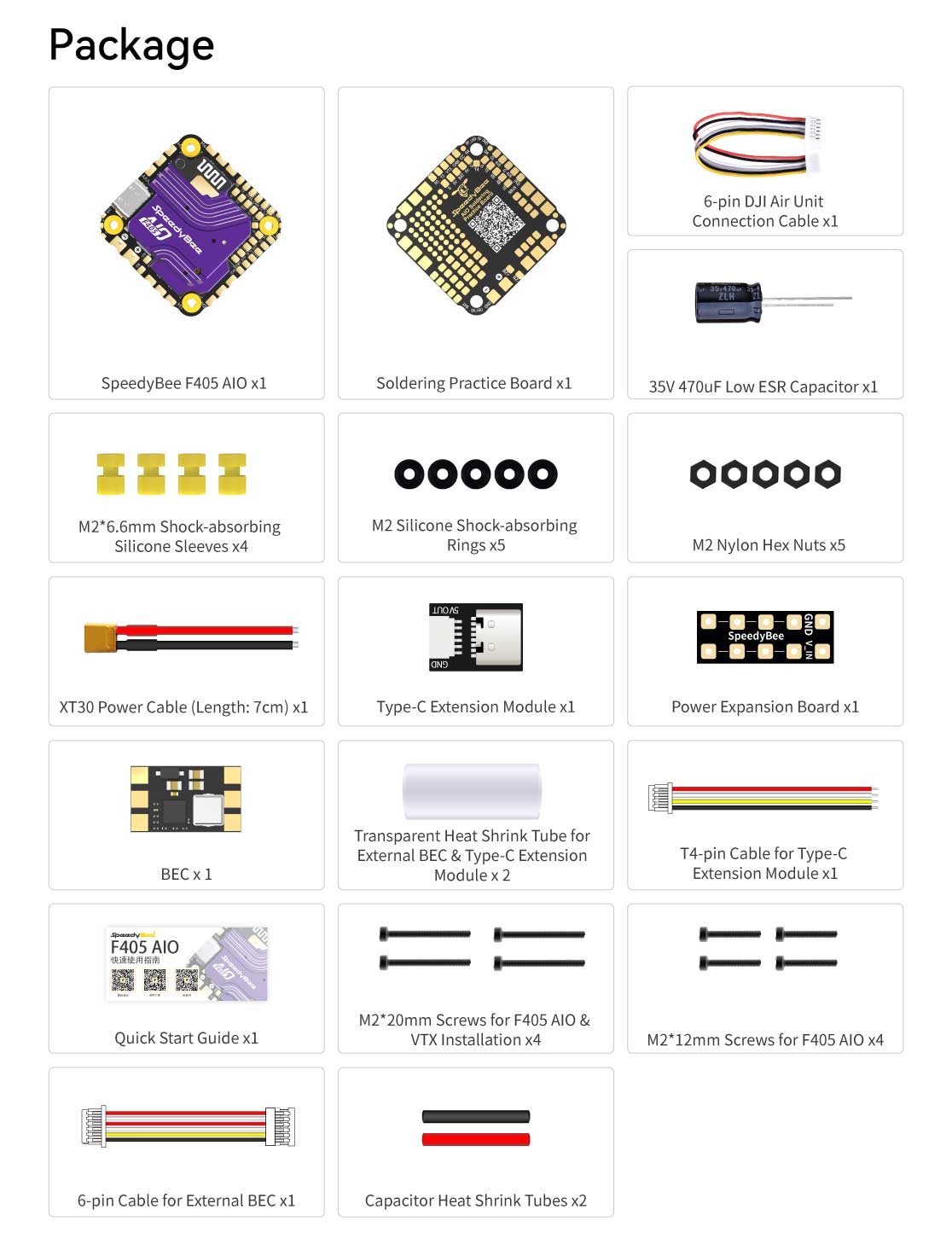

Includes
- 1x SpeedyBee F405 AIO 40A Bluejay 25.5×25.5 3-6S Flight Controller
