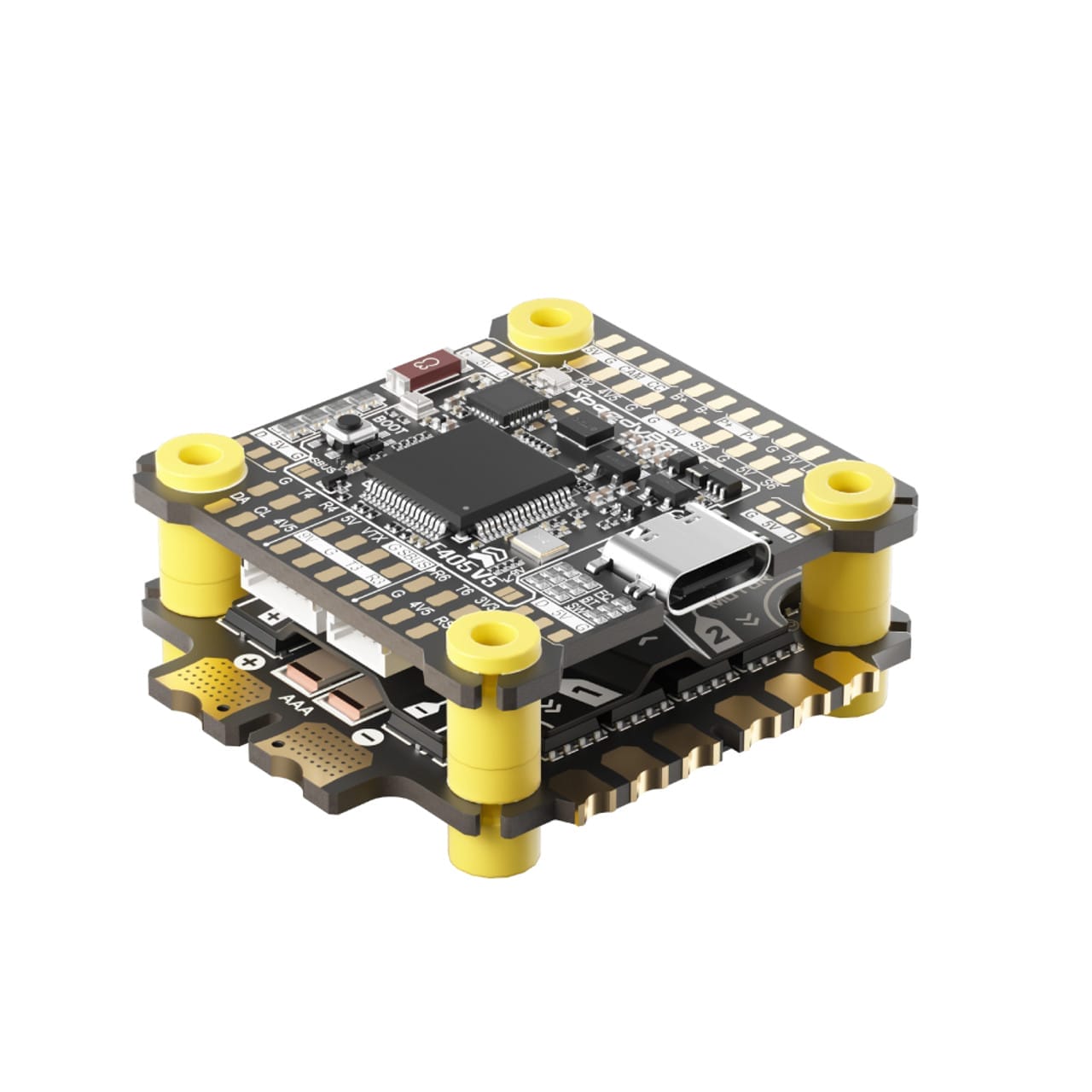

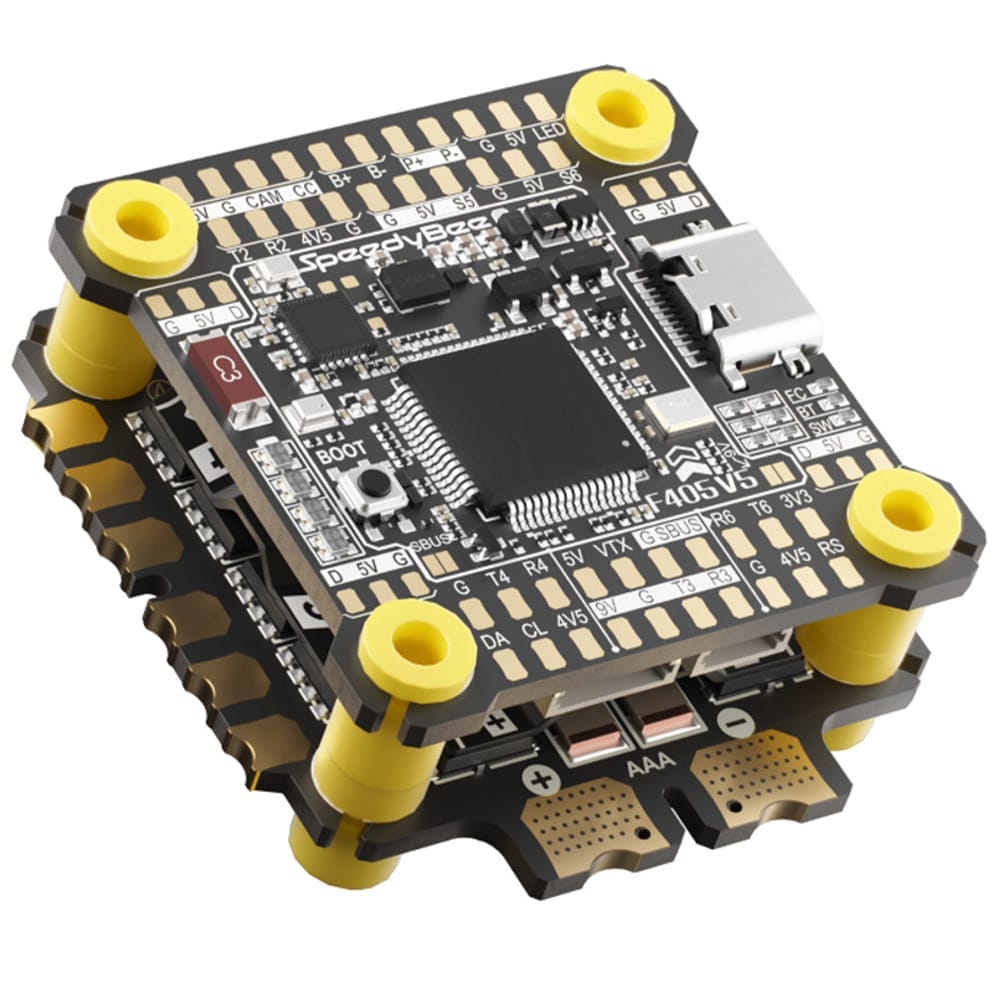

SpeedyBee F405 V5 OX32 55A Stack 30x30mm Standard
AU$183.60
A powerful FC and ESC combo built for performance. The F405 V5 offers Bluetooth tuning, wireless updates, DJI plug-and-play, and 16MB blackbox storage. Paired with the OX32 55A ESC delivering 55A continuous (70A burst) per channel, with TVS protection and a 1000µF capacitor, this stack is perfect for reliable 3–6S freestyle, racing, or cinematic builds.
ONLY 2 LEFT
Description
SpeedyBee F405 V5 OX32 55A Stack 30x30mm Standard
A powerful FC and ESC combo built for performance. The F405 V5 offers Bluetooth tuning, wireless updates, DJI plug-and-play, and 16MB blackbox storage. Paired with the OX32 55A ESC delivering 55A continuous (70A burst) per channel, with TVS protection and a 1000µF capacitor, this stack is perfect for reliable 3–6S freestyle, racing, or cinematic builds.
Specifiations

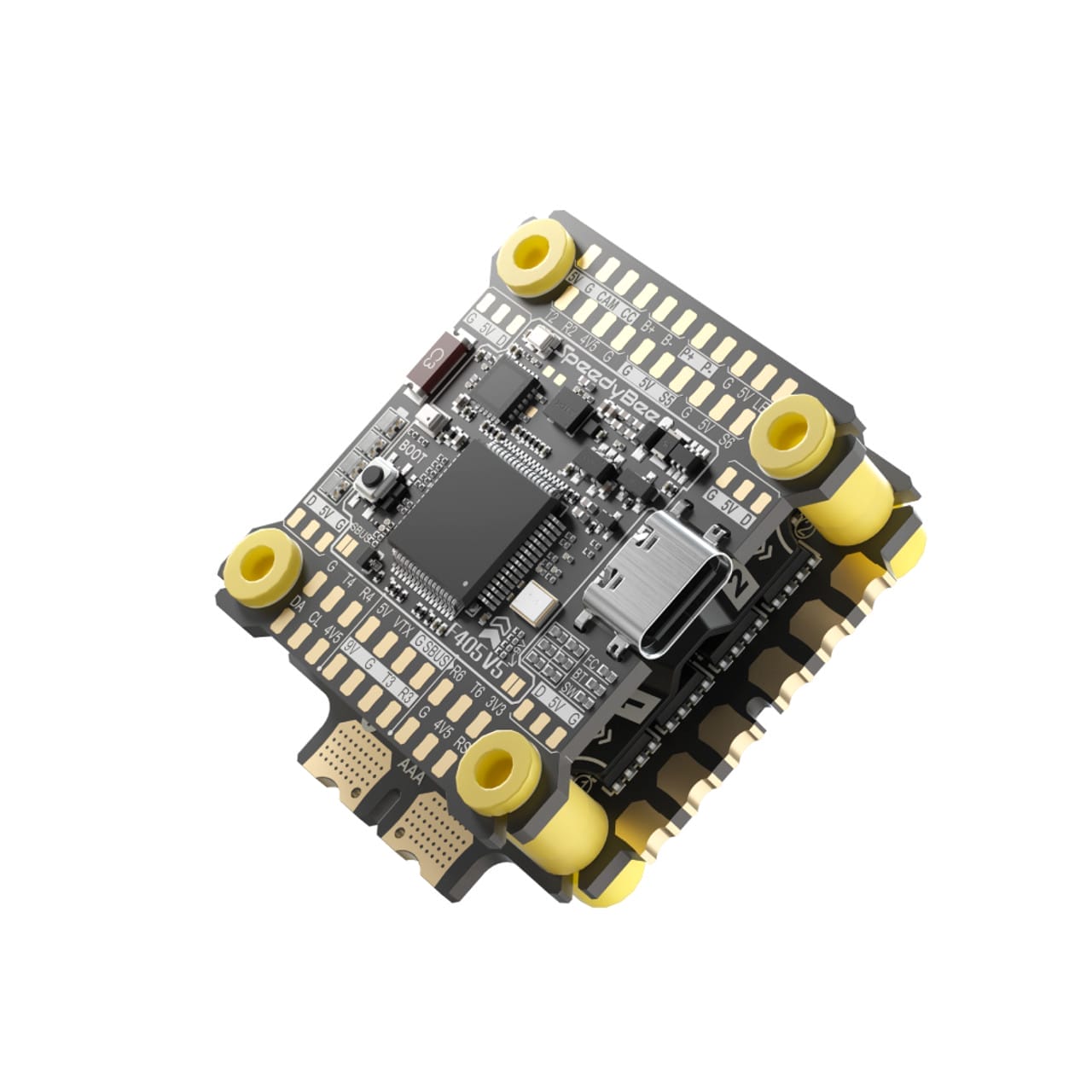

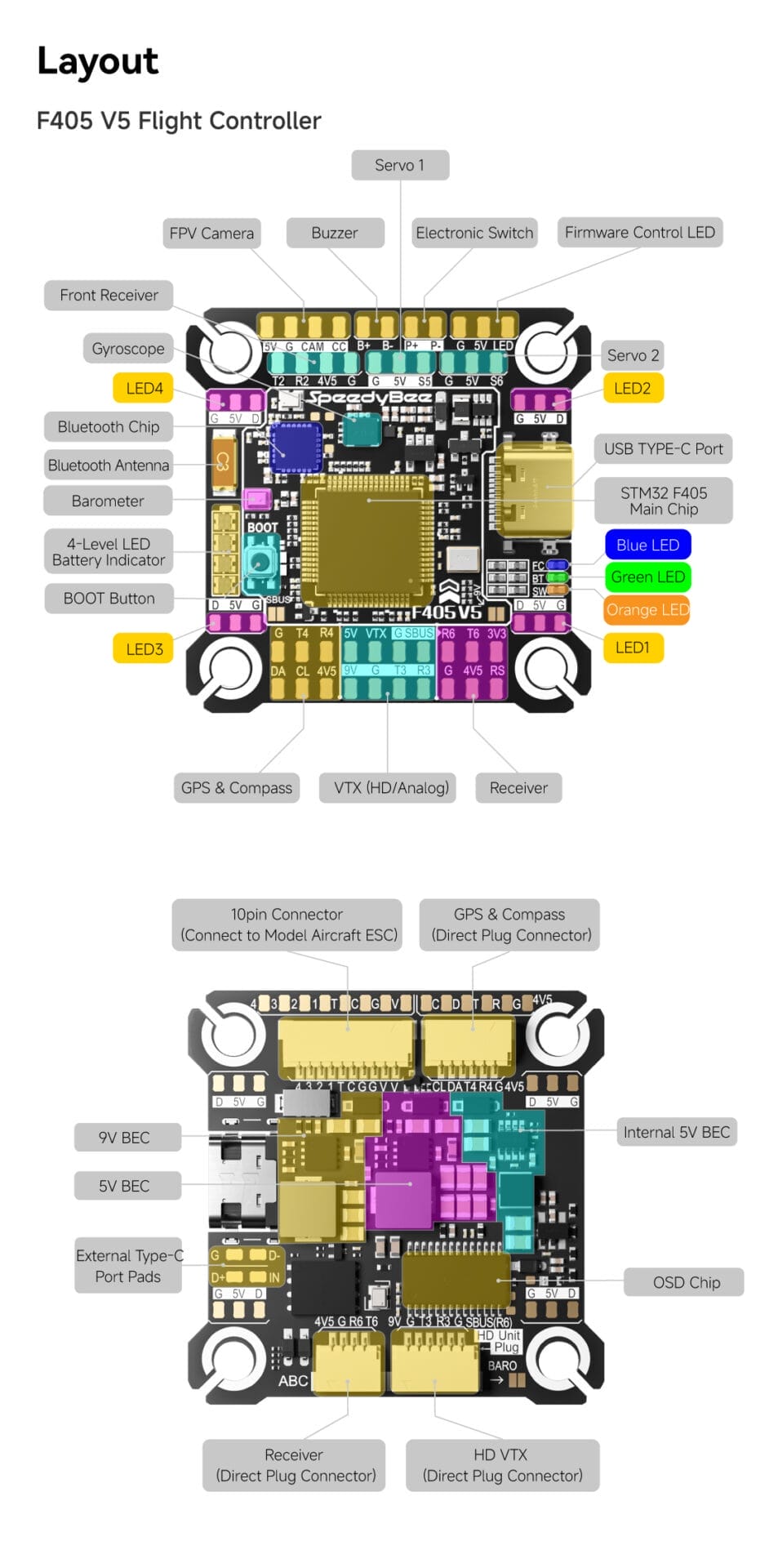

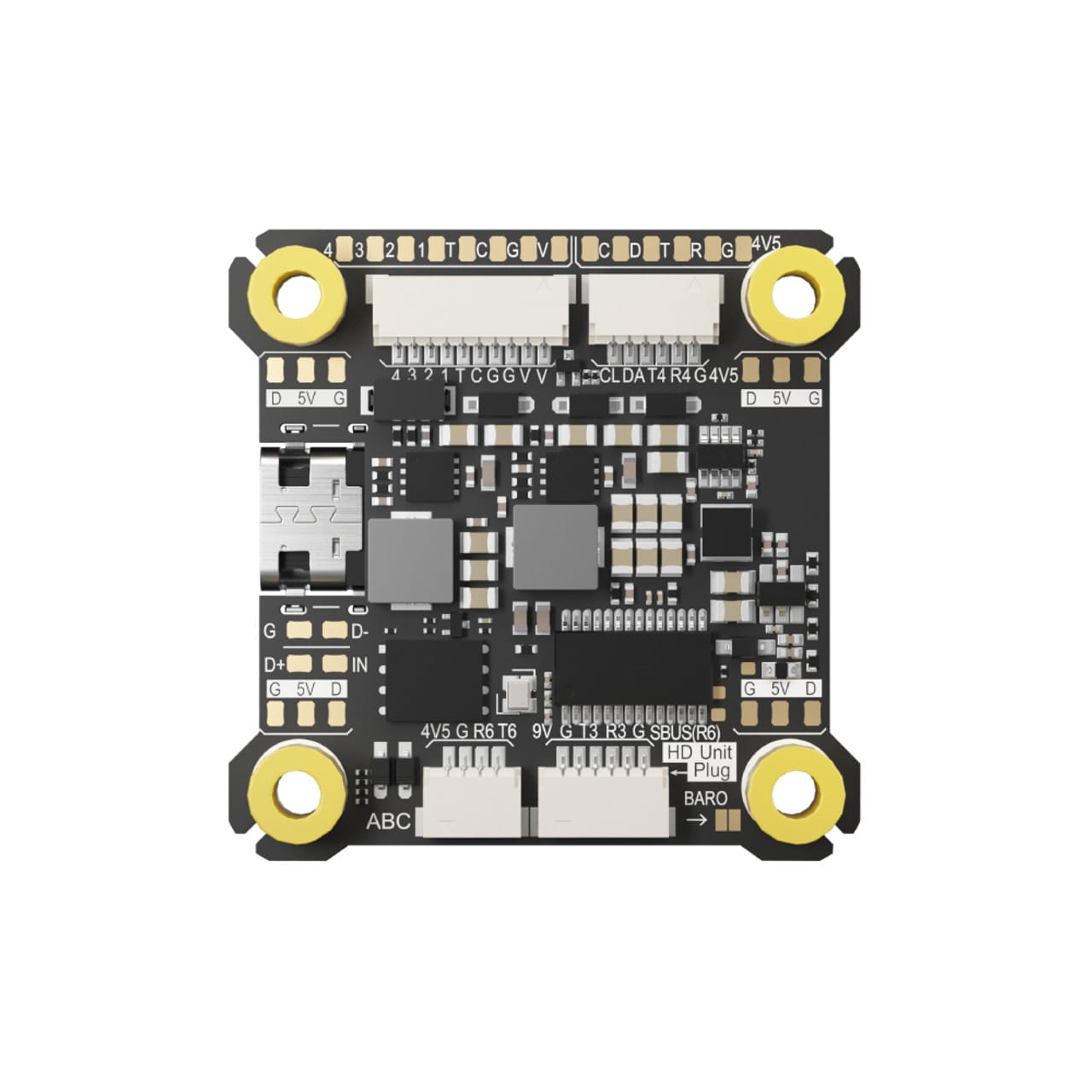

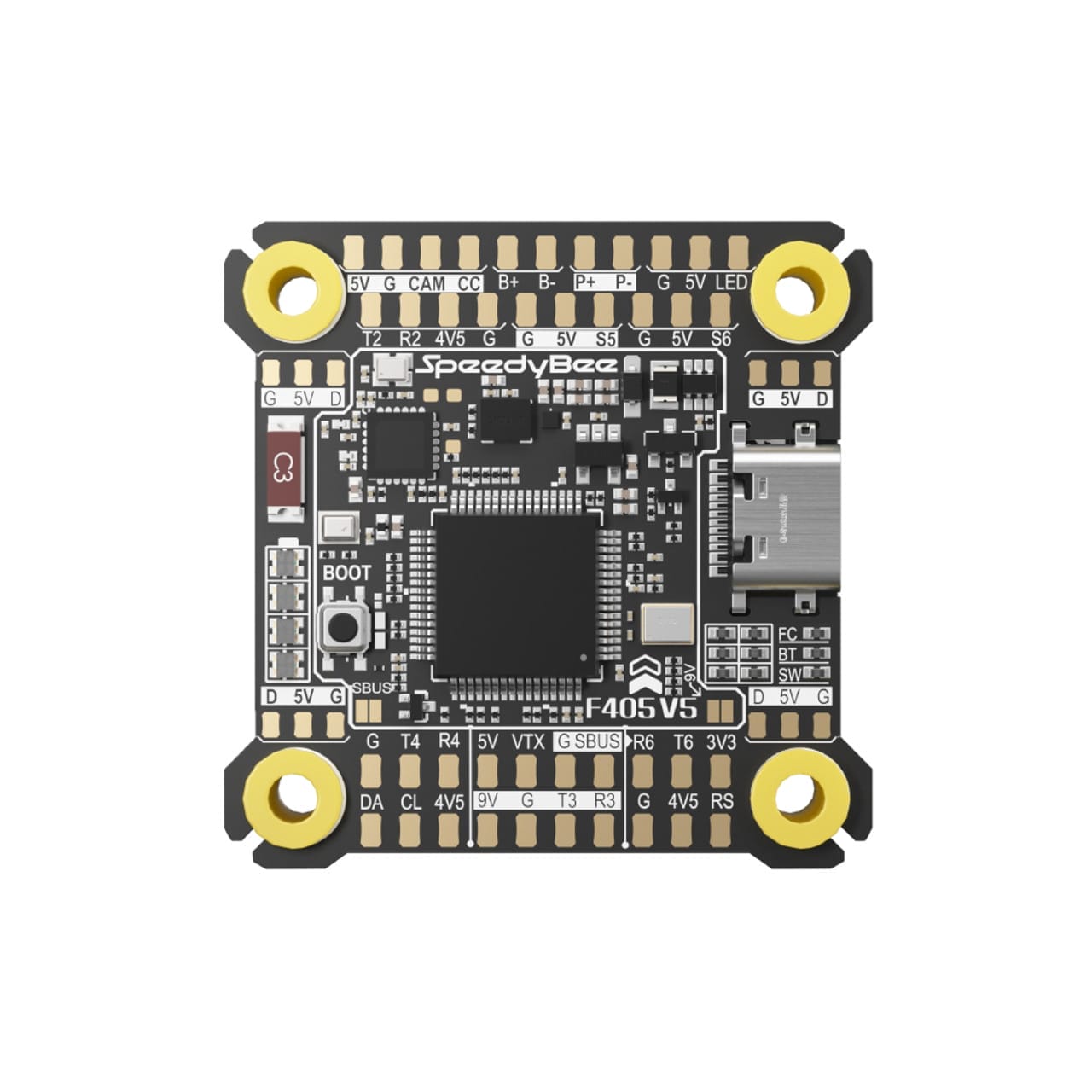

SpeedyBee F405 V5 30×30 Flight Controller

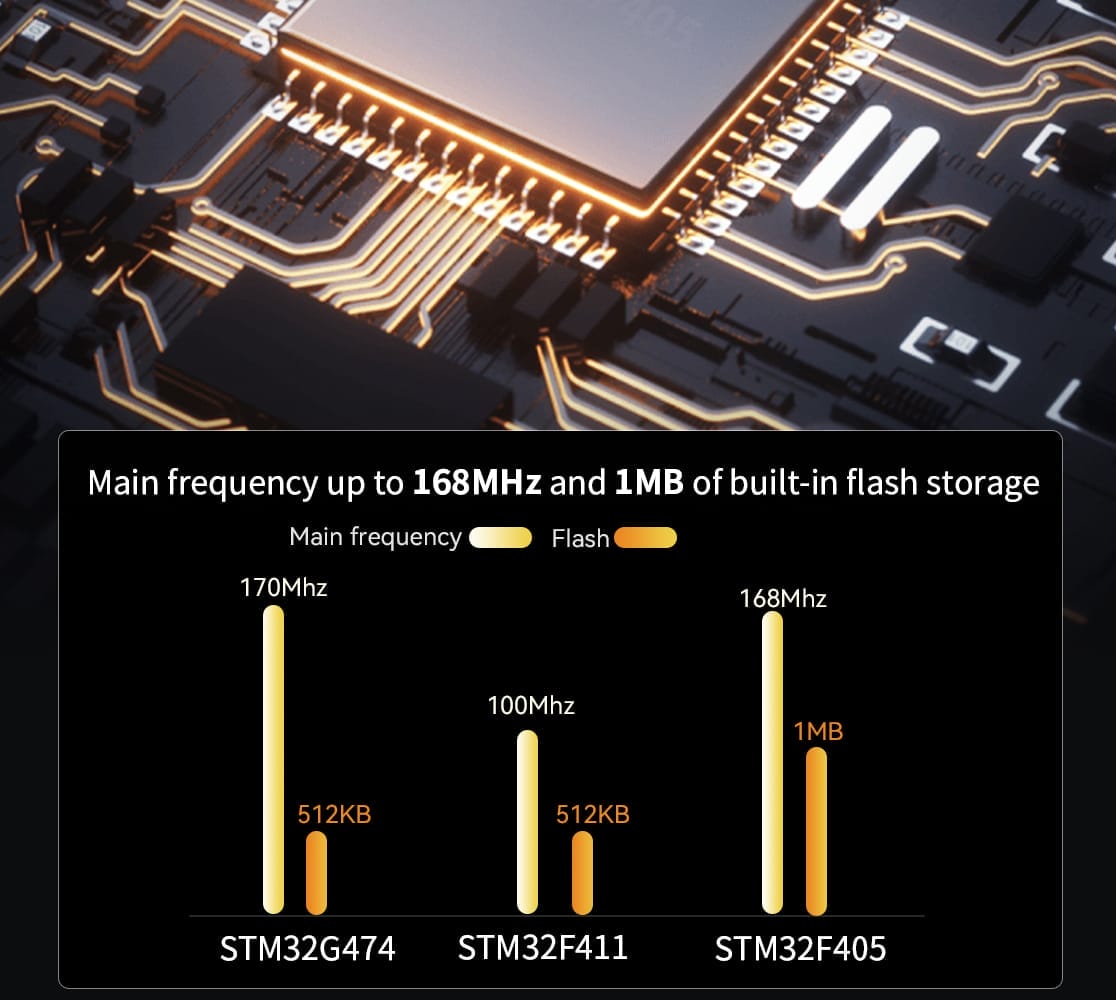

- MCU: STM32F405
- IMU (Gyro): ICM42688P

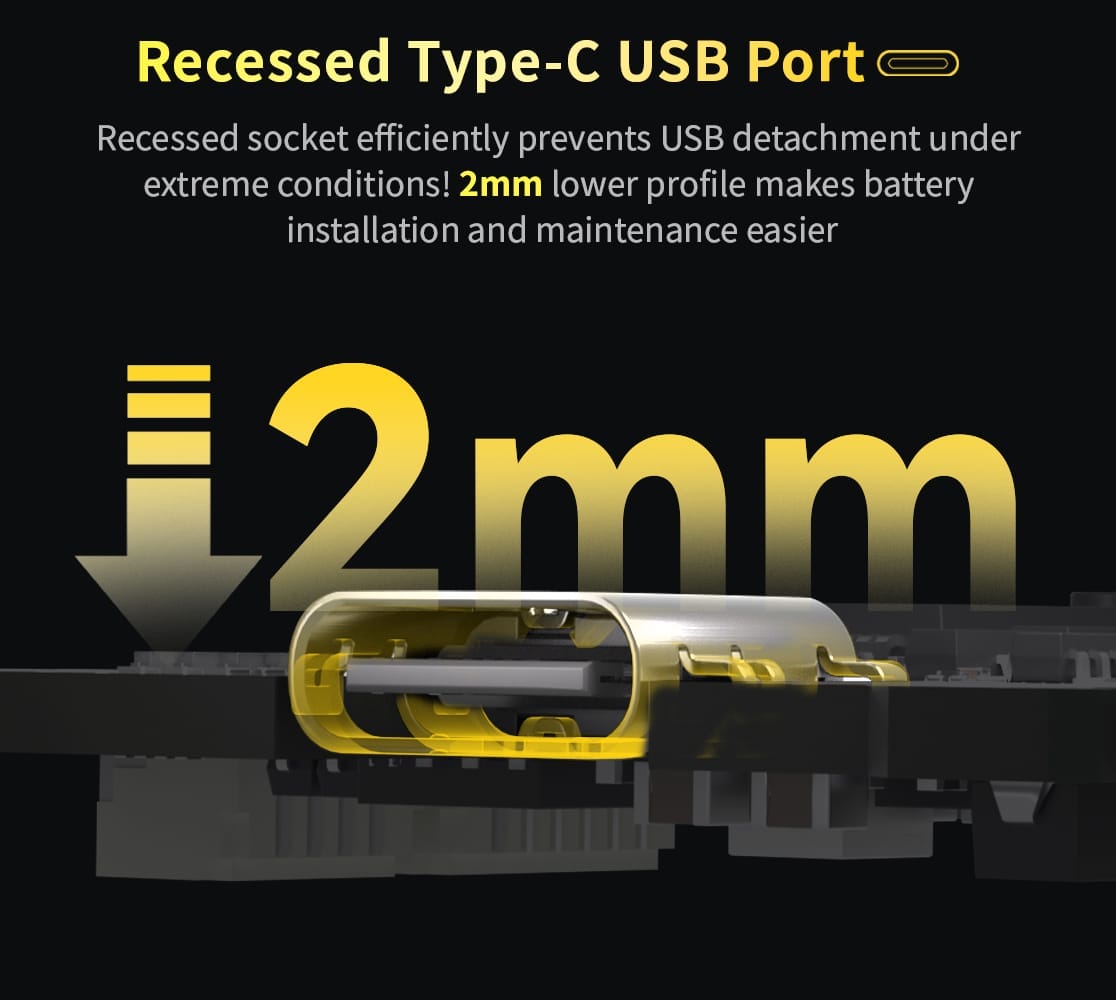

- USB Port Type: New Type-C interface
- Barometer: SPA06-003
- OSD Chip: AT7456E
- Full-featured Bluetooth Tuning: Supported (via SpeedyBee App for FC firmware flashing & parameter tuning)
- Wireless FC Firmware Upgrade: Supported
- DJI Air Unit Connection: 6-pin direct plug-in or solder connection
- Blackbox: Supported, built-in 16MB storage chip
- Input Voltage (FC): 3–6S LiPo battery
- Independent 5V BEC Output: 9 groups
- 4× +5V pads (front)
- 1× BZ+ buzzer pad
- 4× +5V pads (corners, external LEDs)
- Total: 1.5A
- Independent 9V BEC Output: 2 groups
- 1× 9V pad (front)
- 1× 9V output (rear connector)
- Total: 3A, supports PINIO remote on/off
- MCU & Gyro Power: Independent LDO
- 3.3V Output: 1× pad (front)
- 4.5V Output: 3× pads (front), up to 1A
- Supported FC Firmware: Betaflight, INAV, Ardupilot
- Firmware Target Name: SPEEDYBEEF405V5
- Factory Firmware Version: Betaflight 4.5.2
- Configurator Version: Betaflight 10.10.0
- Mounting Holes: 30.5 × 30.5mm (Ø4mm), side opening

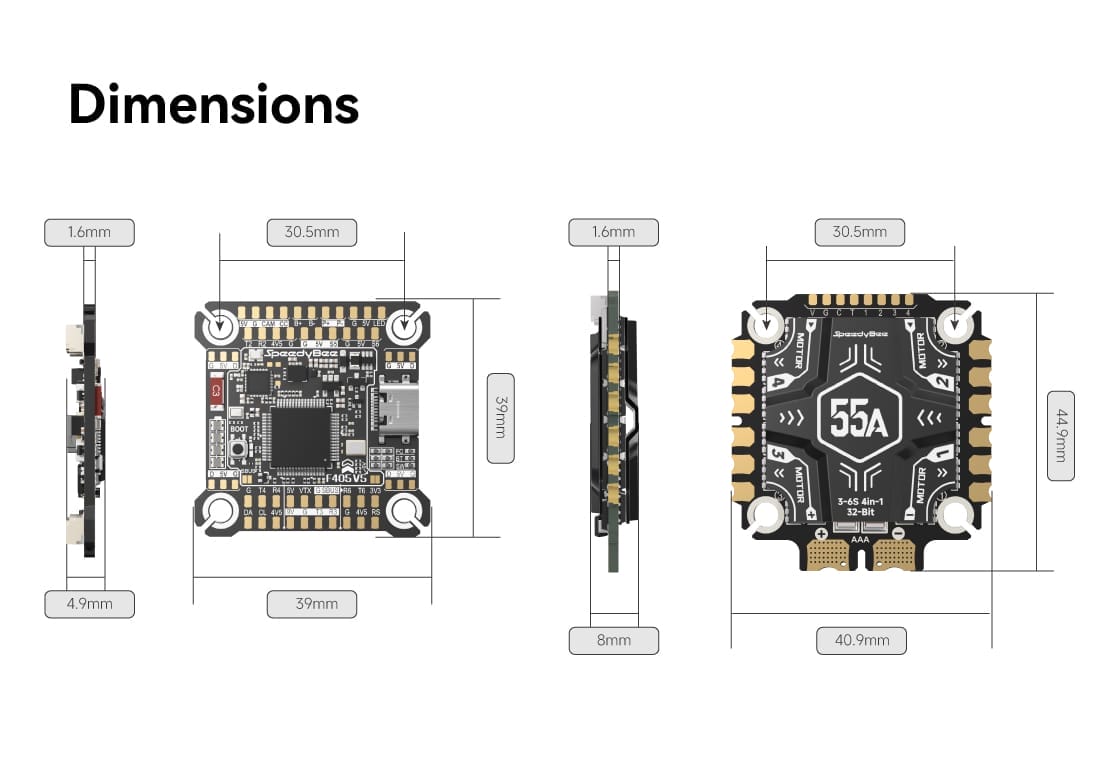

- Dimensions: 39 × 39 × 4.9mm
- Weight: 8.1g

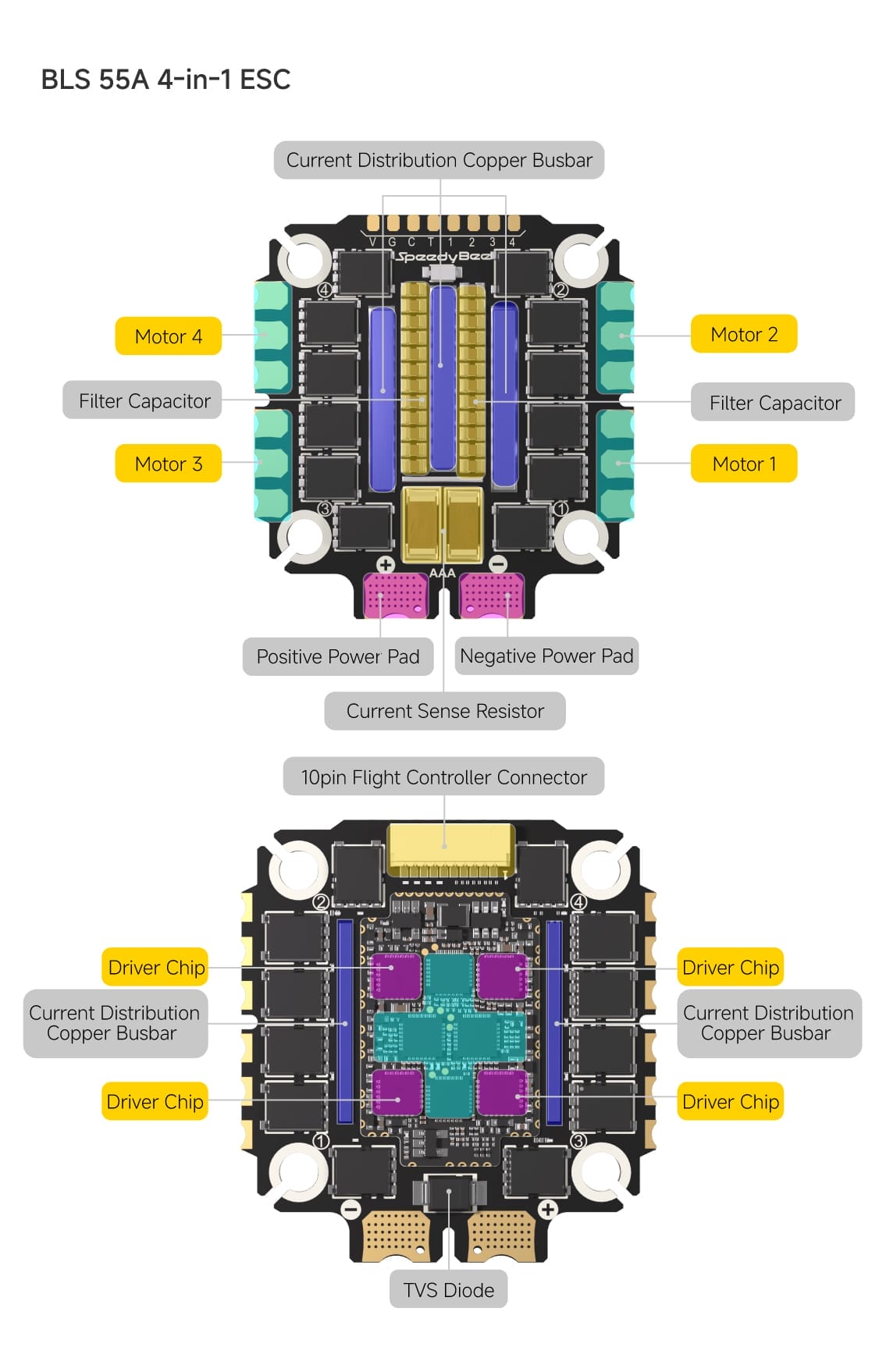

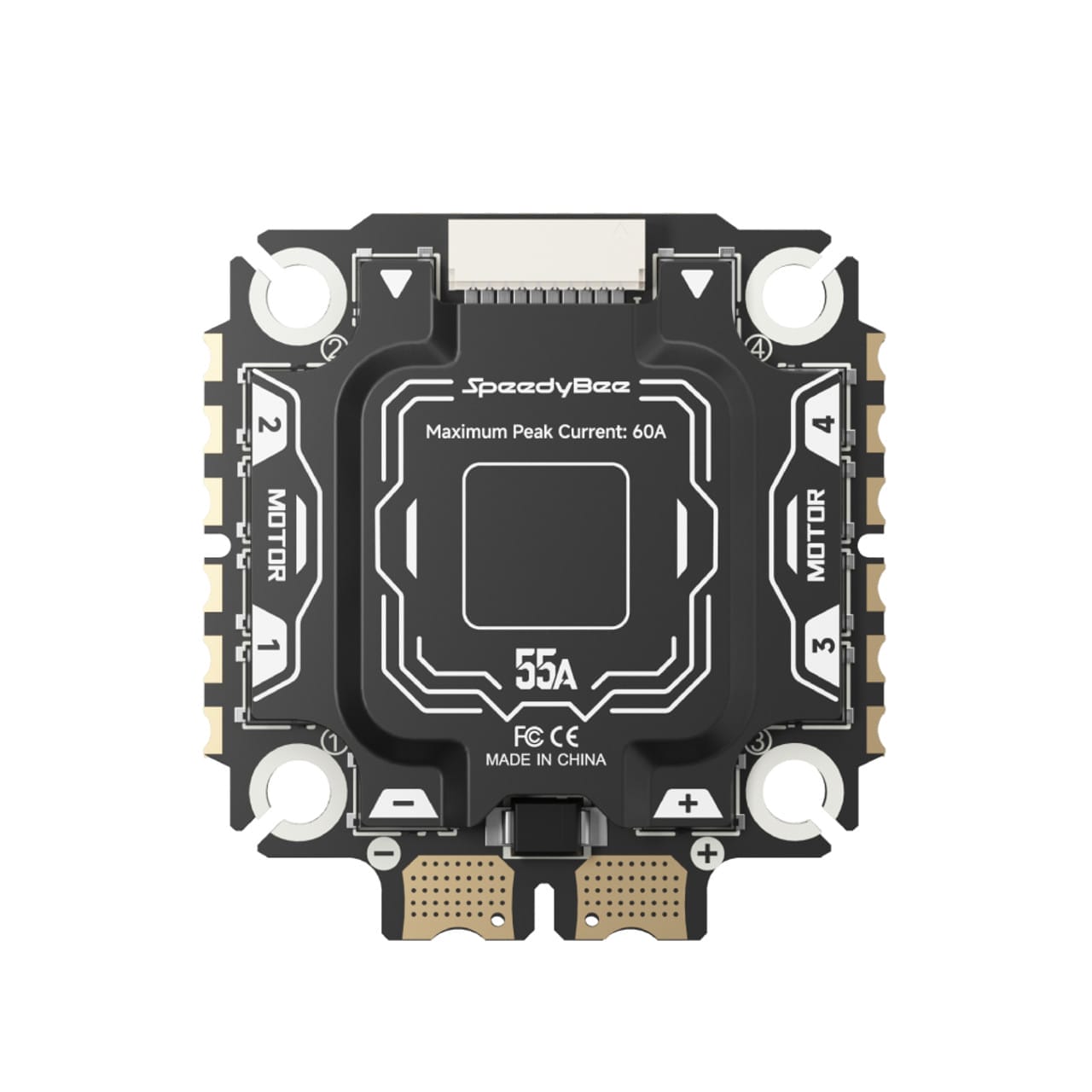

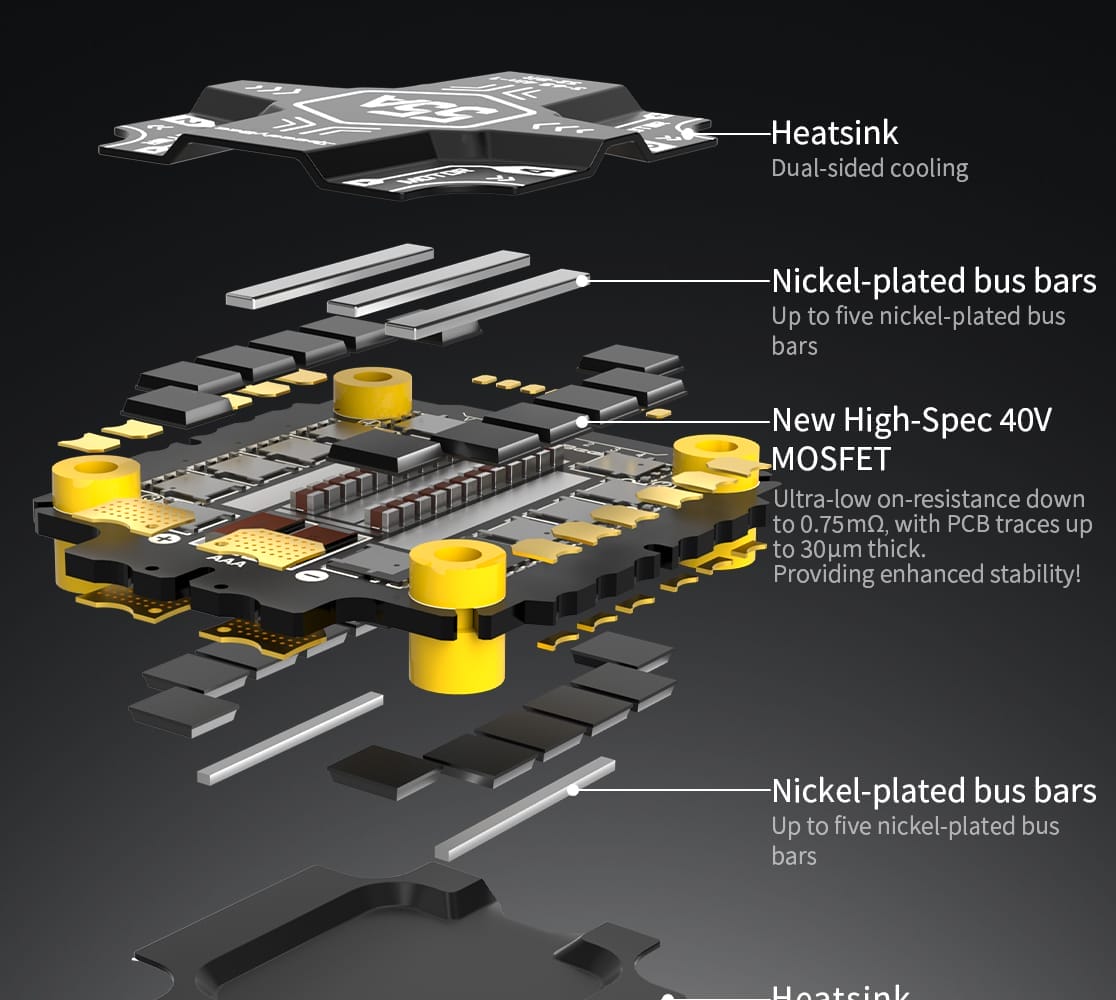

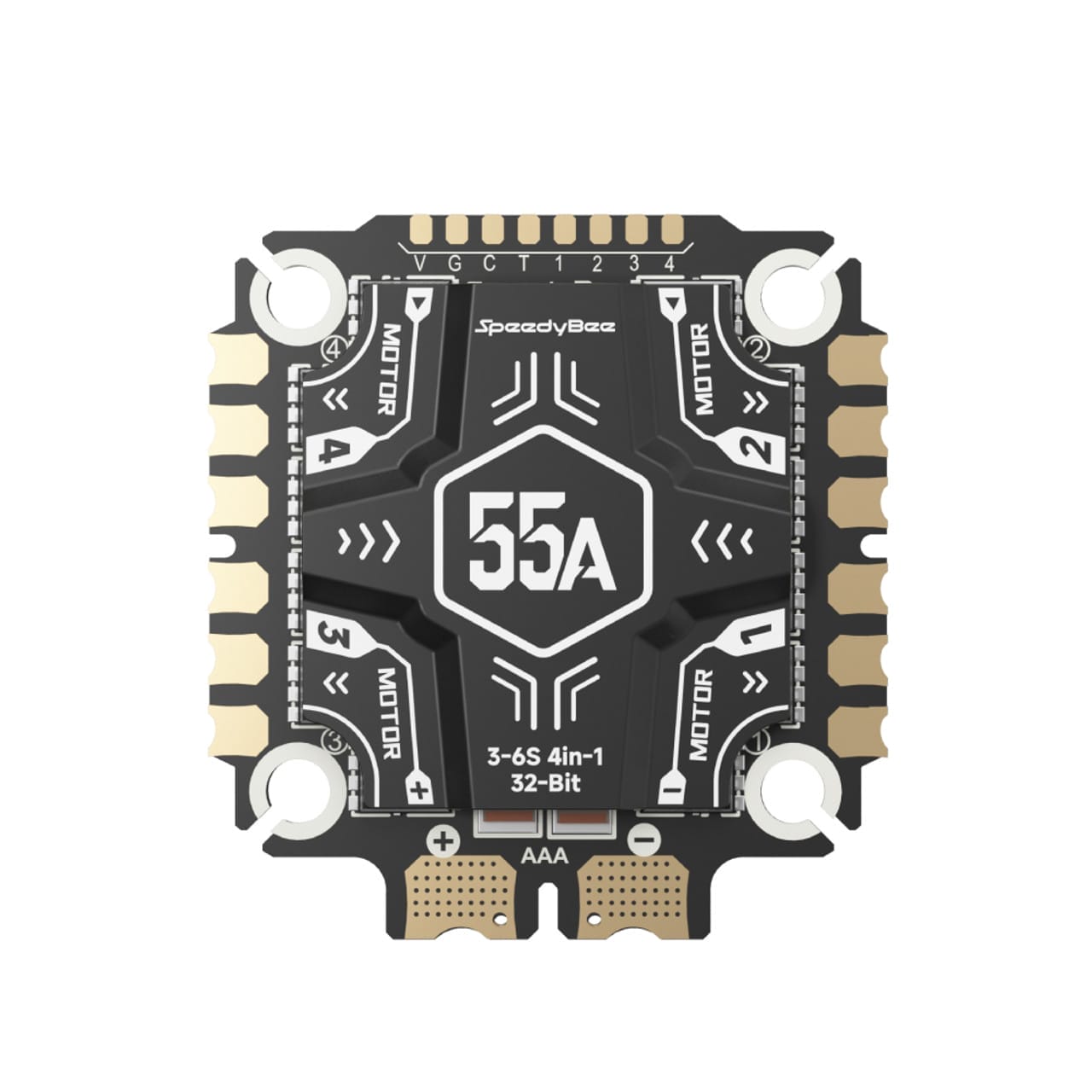

OX32 55A 30×30 ESC
- Product Name: SpeedyBee OX32 55A 30.5×30.5 4-in-1 ESC
- Default Firmware: OX32
- Continuous Current: 55A (per channel) / 220A (total)
- Maximum Current: 70A (per channel) / 280A (total)
- TVS Protective Diode: Built-in

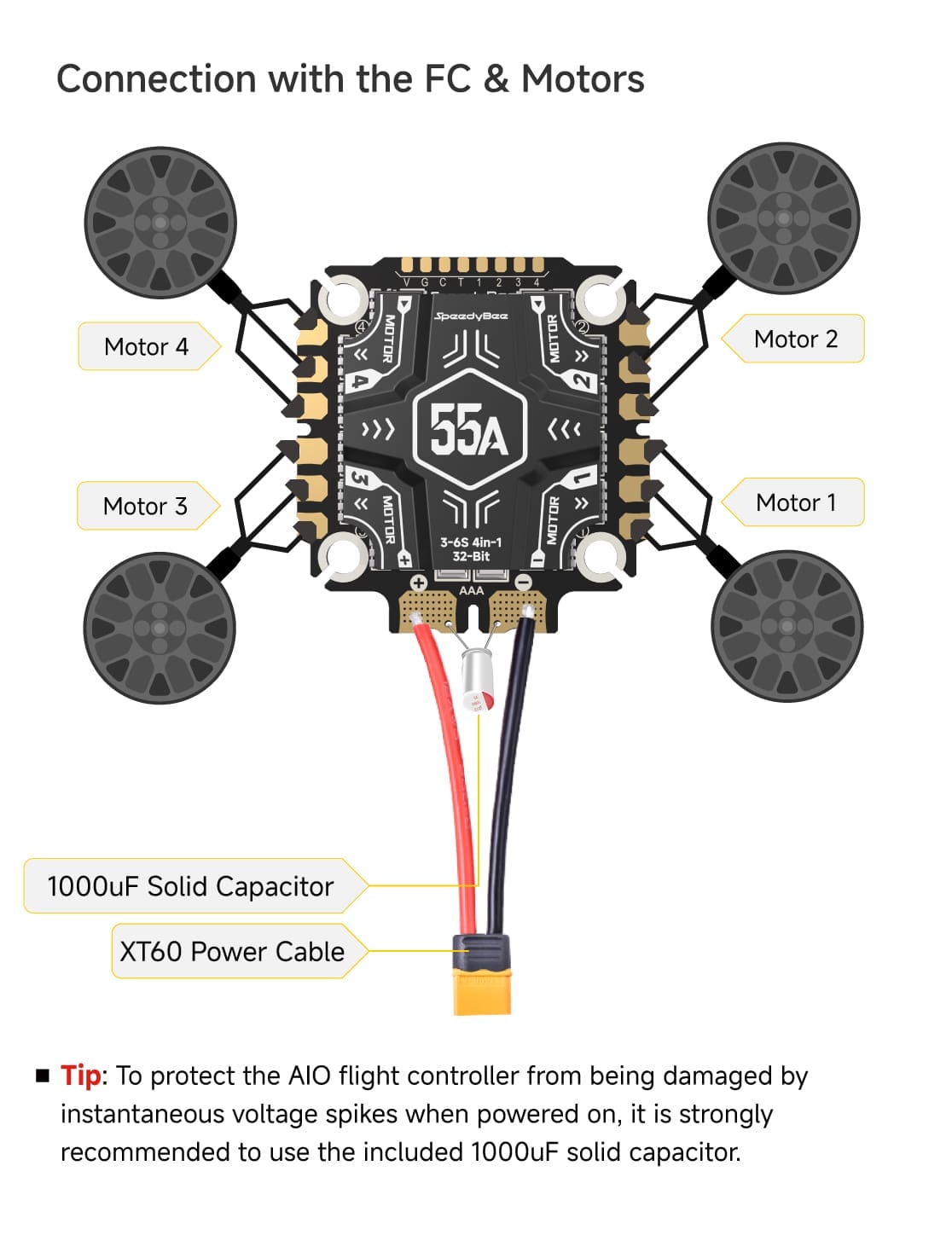

- External Capacitor: 1000µF solid capacitor (included)
- ESC/Motor Protocol: DSHOT300 / 600
- Input Voltage: 3–6S LiPo
- Power Output: VBAT
- Current Sensor: Supported
- ESC Telemetry: Supported
- Mounting Holes: 30.5 × 30.5mm (Ø4mm), side opening
- Dimensions: 40.9 × 44.9 × 8.0mm (incl. heatsink)
- Weight: 19.1g
- ESC Webpage: ox32.oxbot.com
- Current Meter Note: Supported (Scale = 27, Offset = -2644)
Includes
- 1x SpeedyBee F405 V5 OX32 55A 30×30 Flight Controller Stack Standard
