Flywoo Goku F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO ICM42688
AU$126.63
The F405 AIO Flight Controller features a powerful STM32F405 BGA chipset in a compact, lightweight design for reliable high-performance flight control. It includes 5 UART ports, I2C compass support, and a built-in ExpressLRS 2.4G receiver for fast, low-latency control.
Integrated 400mW 5.8GHz VTX, 8MB blackbox storage, and 1S ESC support make it an all-in-one solution for micro and HD builds. With advanced gyro, barometer, and wide ESC protocol compatibility, it delivers precise control and easy setup for modern FPV drones.
ONLY 4 LEFT
Description

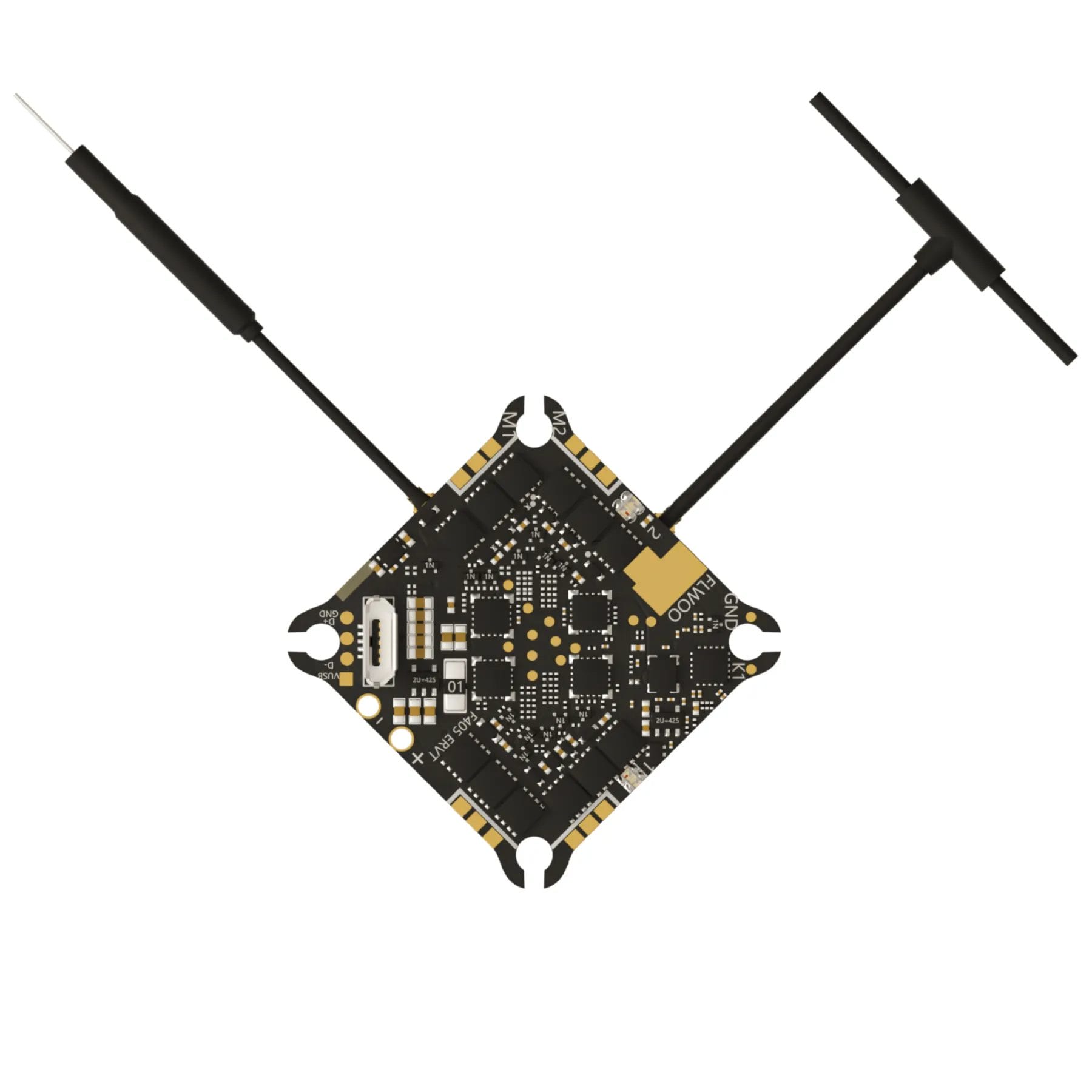

Flywoo Goku F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
The F405 AIO Flight Controller features a powerful STM32F405 BGA chipset in a compact, lightweight design for reliable high-performance flight control. It includes 5 UART ports, I2C compass support, and a built-in ExpressLRS 2.4G receiver for fast, low-latency control. Integrated 400mW 5.8GHz VTX, 8MB blackbox storage, and 1S ESC support make it an all-in-one solution for micro and HD builds. With advanced gyro, barometer, and wide ESC protocol compatibility, it delivers precise control and easy setup for modern FPV drones.
Features
- F405 BGA chipUtilizes the powerfulfor enhanced computational processing power and asmaller form factor
- Equipped with 5 UART serial ports for effortless connectivity with various devices andmodules.
- Supports 12C compass input, providing accurate navigation and positioning capabilitiesExpressLRS 2.4G·Built-inreceiver(UART) with a lightweight design, convenient for WiFiupgrades.
- Built-in 400mw 5.8Gvideo transmitter for an extended signal transmission range·Built-in 8MB black boxstorage for easy access to flight status data.
Specifications
- BF Flight Controller Firmware: FLYWOOF405S_AIO
- INAV Firmware: FLYWOOF405HD
- MCU: STM32F405BGA
- BEC: 5V 2A/9V 2A
- Flash: 8M
- LED: 2*WS2812
- Barometer: DPS310/SPL06
- Gyro: ICM42688P

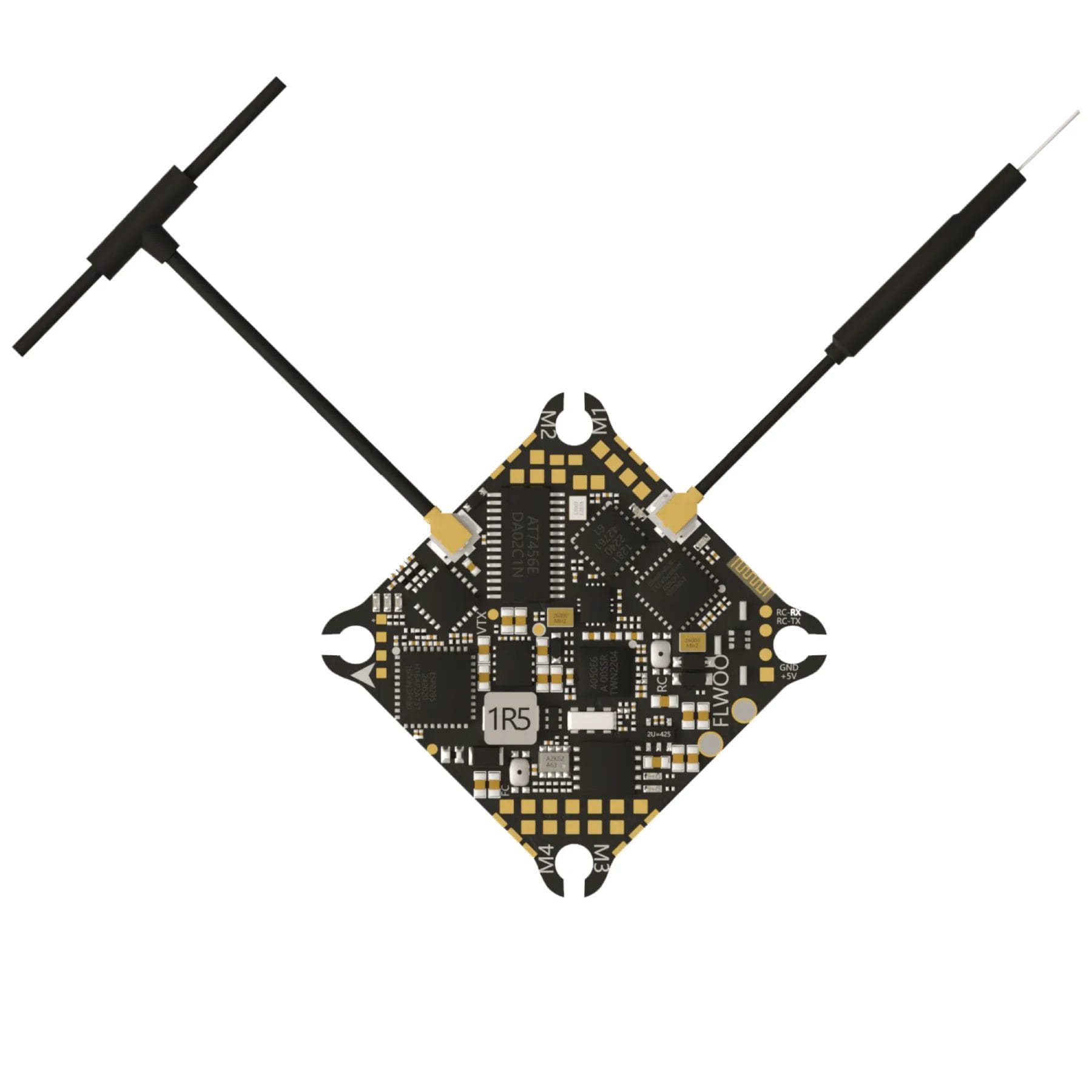

- Motor: M1-M4 OUTPUT I2C: SCL/SDA
- Uarts: 1,2,3,4,5,6
- connector： Type-C
- OSD: NO
- Hole: 25.5*25.5-3mm

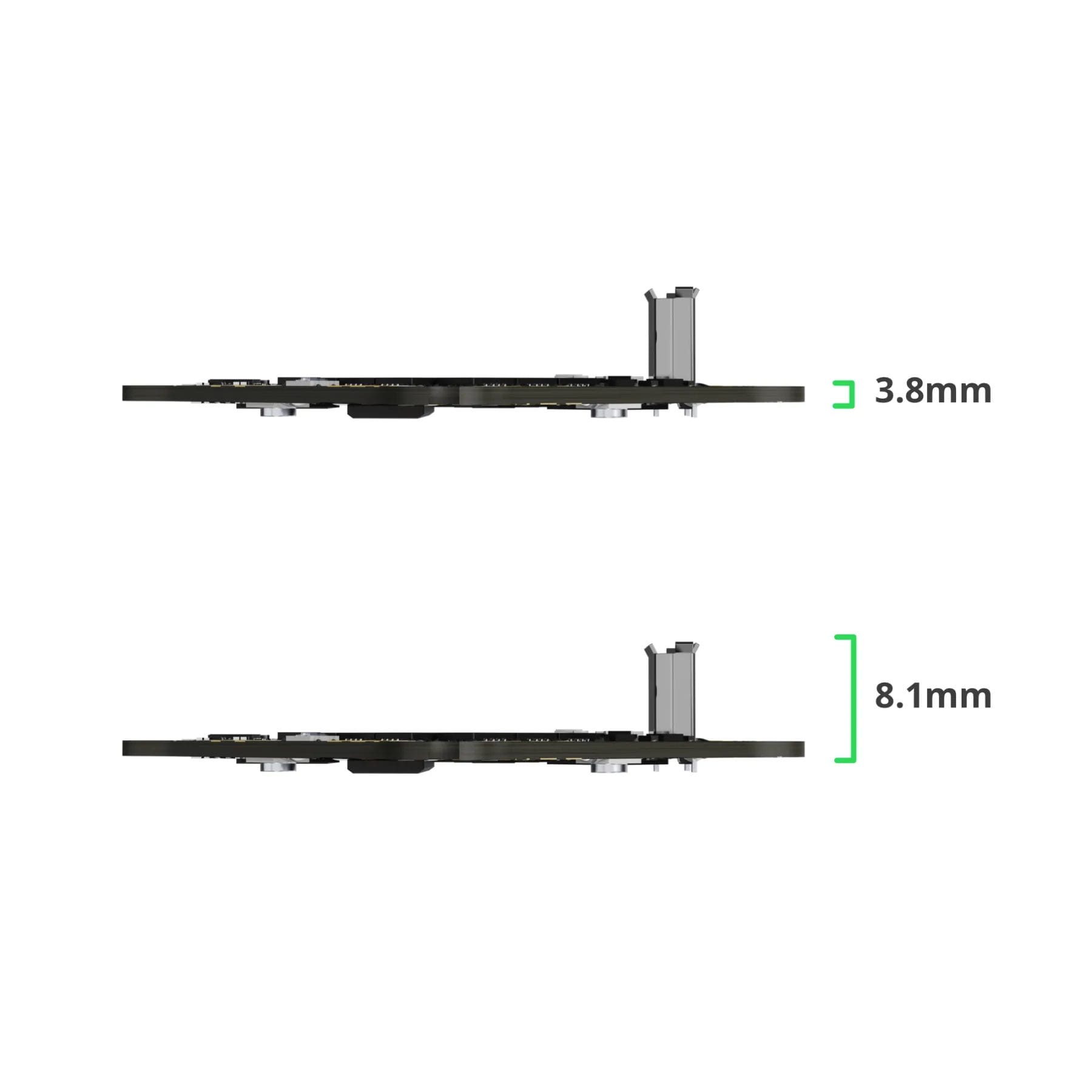

- Size: 30*30mm

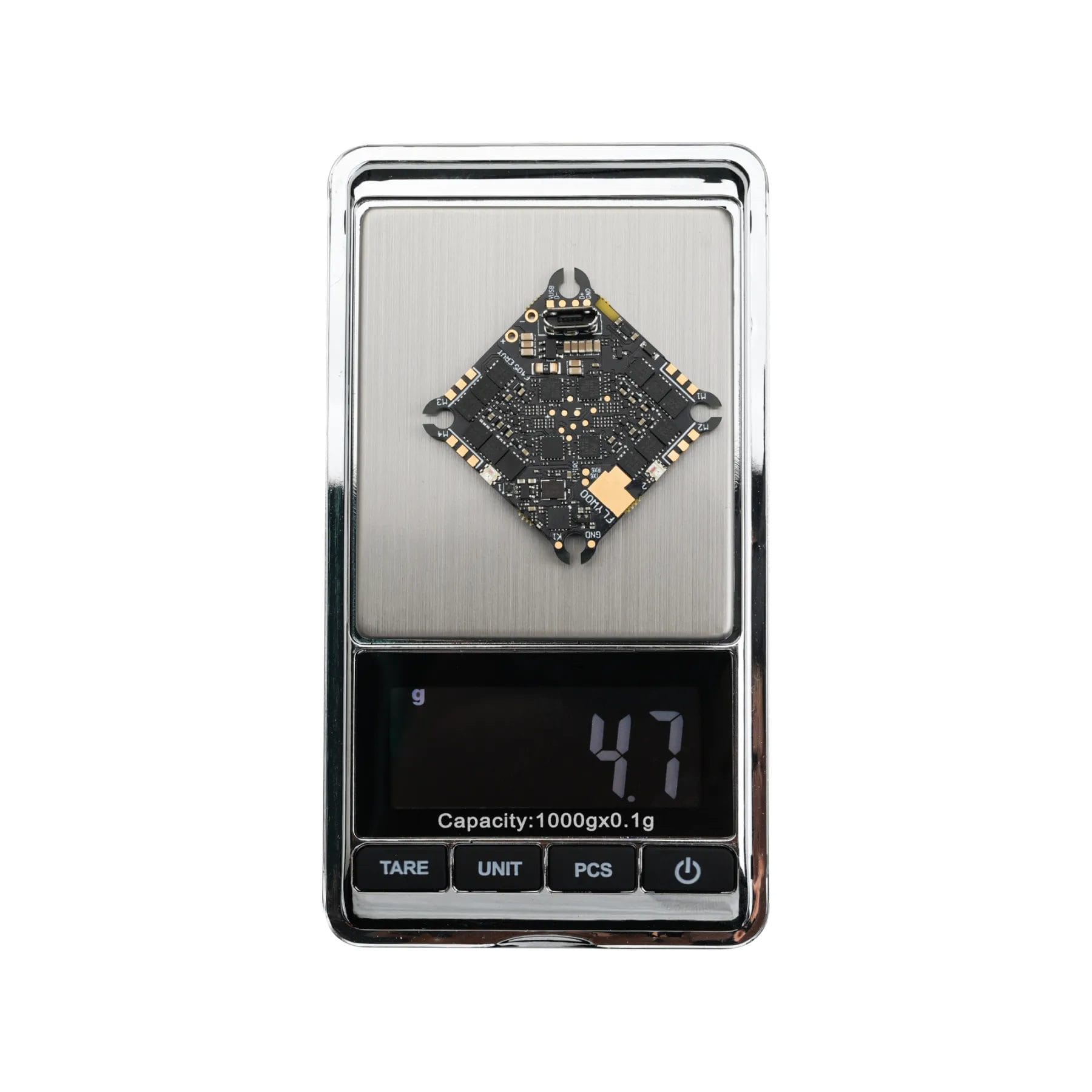

- Weight: 4.9g
- Built-in 1S/
- Support Oneshot125, Oneshot42, Multishot,
- Dshot150, Dshot300, Dshot600
- Input Voltage: 1S Lipo
- Firmware: BLHELI_S
- Firmware: Z_H_30_REV16.7
Includes
- 1x GOKU Versatile F405 5IN1 AIO
- 1x 25V 220UF Capacitor
- 1x 5.8G Antenna
- 1x PH20 Connector
- 1x Amass XT30 Connector
- 1x Hardware Set
- 1x ELRS 24g T Antenna
