The GOKU F722 PRO Mini V2 is a powerful and compact flight controller, featuring a high-performance 32-bit STM32F722 processor and an ultra-stable ICM42688 gyroscope. It supports up to eight motor outputs and dual 4-in-1 ESC ports, with user-friendly modular socket design for streamlined integration.

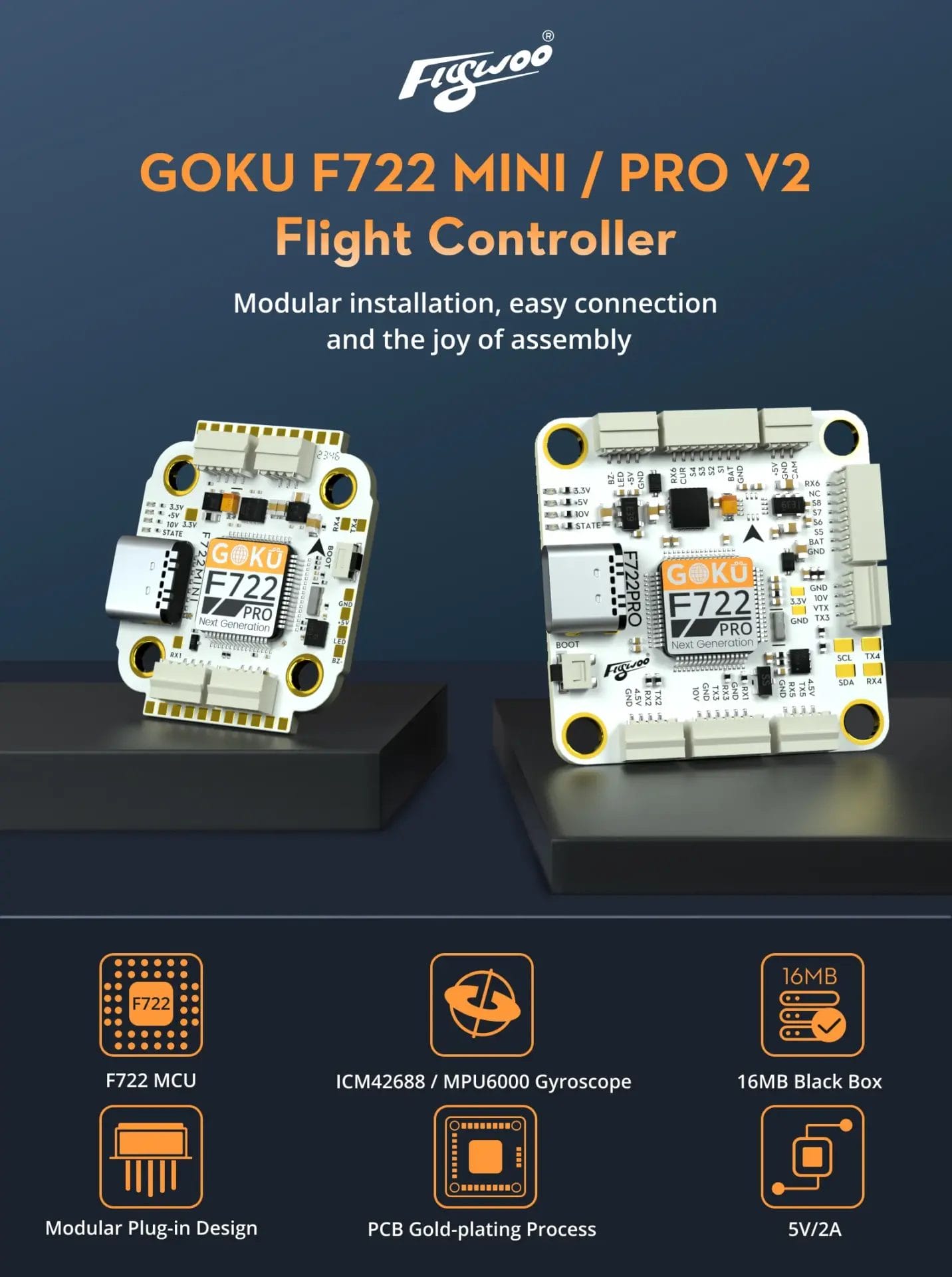

Flywoo Goku F722 PRO Mini V2 20×20 ICM42688

The GOKU F722 PRO Mini V2 is a powerful and compact flight controller, featuring a high-performance 32-bit STM32F722 processor and an ultra-stable ICM42688 gyroscope. It supports up to eight motor outputs and dual 4-in-1 ESC ports, with user-friendly modular socket design for streamlined integration.

Equipped with a 16 MB Blackbox for flight data, dual (10 V/2 A and 5 V/2 A) BEC outputs, onboard OSD, and barometer, the GOKU F722 PRO Mini V2 delivers reliable performance and easy setup—ideal for both beginners and advanced FPV pilots.

Features

• High-Performance MCU: STM32F722 at 216 MHz for fast, responsive processing.
• Precision Gyro: ICM42688 provides improved stability and flight precision.

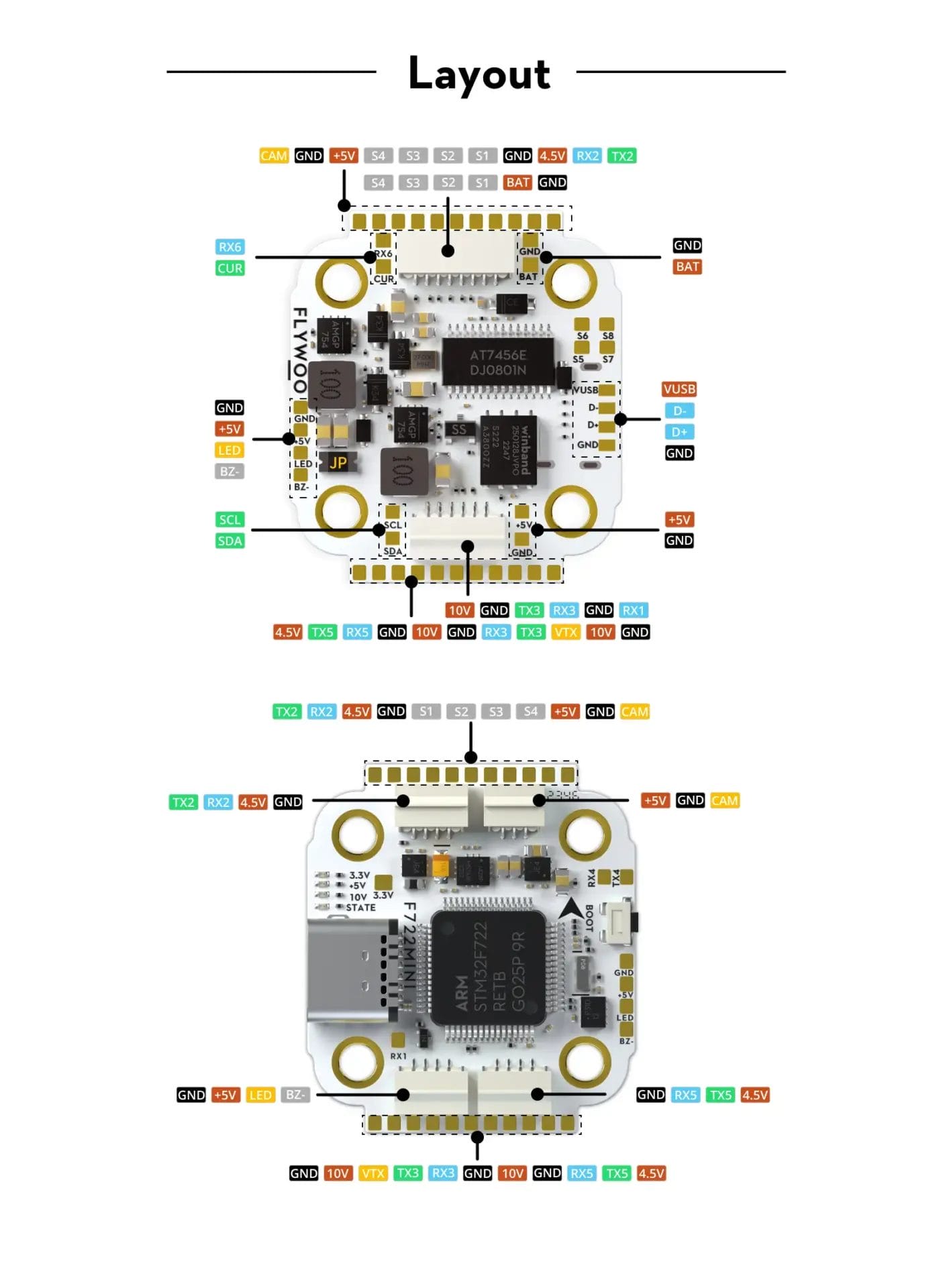

• Modular & Flexible: Snap-lock sockets plus solder pads for customizable wiring.
• Inclusive Integration: Plug-and-play support for the DJI O3 Air Unit, onboard OSD, barometer, and 16 MB Blackbox.

Specifications

• Firmware: Flywoo F722PRO (Betaflight & INAV supported)
• MCU: STM32F722
• Gyroscope: ICM42688
• OSD: AT7456E
• Barometer: DP310 (or SPL06 variant)
• Blackbox: 16 MB
• BEC Outputs: 10 V/2 A and 5 V/2 A
• UARTs: UART1–UART6
• Input Voltage: 7.4 V – 26 V (2–6S LiPo)
• Dimensions: 32 × 29 × 20 mm
• Mounting Pattern: M2, 20 × 20 mm
• Weight: ~9.9 g

Includes

• 1 × Flywoo Goku F722 PRO Mini V2 Flight Controller (ICM42688)
• 1 × FC & ESC Connection Cable
• 1 × Buzzer Connection Cable
• 1 × GPS Connection Cable
• 1 × DJI O3 Connection Cable
• 1 × Receiver Connection Cable
• 1 × Camera Connection Cable
• 5 × M3 Shock-Absorbing Balls
• 5 × M2 Shock-Absorbing Balls
