The GEPRC TAKER F405 BLS 60A Stack features the reliable STM32F405 processor, a high-performance 42688-P gyro, and 16MB black box storage. With a clean power supply via integrated LC filter, Type-C USB, and dual BEC outputs (12V@2.5A + 5V@3A), it’s plug-and-play with DJI Air Units. Paired with the 65A 4-in-1 ESC, it delivers smooth flight performance and stable gyro operation thanks to its shock-absorbing, easy-to-install design.

GEPRC TAKER F405 BLS 100A 8S Stack

The GEPRC TAKER F405 BLS 60A Stack features the reliable STM32F405 processor, a high-performance 42688-P gyro, and 16MB black box storage. With a clean power supply via integrated LC filter, Type-C USB, and dual BEC outputs (12V@2.5A + 5V@3A), it’s plug-and-play with DJI Air Units. Paired with the 65A 4-in-1 ESC, it delivers smooth flight performance and stable gyro operation thanks to its shock-absorbing, easy-to-install design.

Feature

• Use mainstream STM32F405 chip
• Equipped with the latest 42688-P gyroscope
• 16M black box storage
• Integrated LC filter
• Upgrade type-C USB interface
• Directly plugged into the DJI Air Unit
• With TAKER H100_8S_BLS 100A 4IN1 ESC, Dual MOS, high current, silky flight
• Supports 8S Lipo battery
• Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
• 12V@3A + 5V@3A dual independent BEC

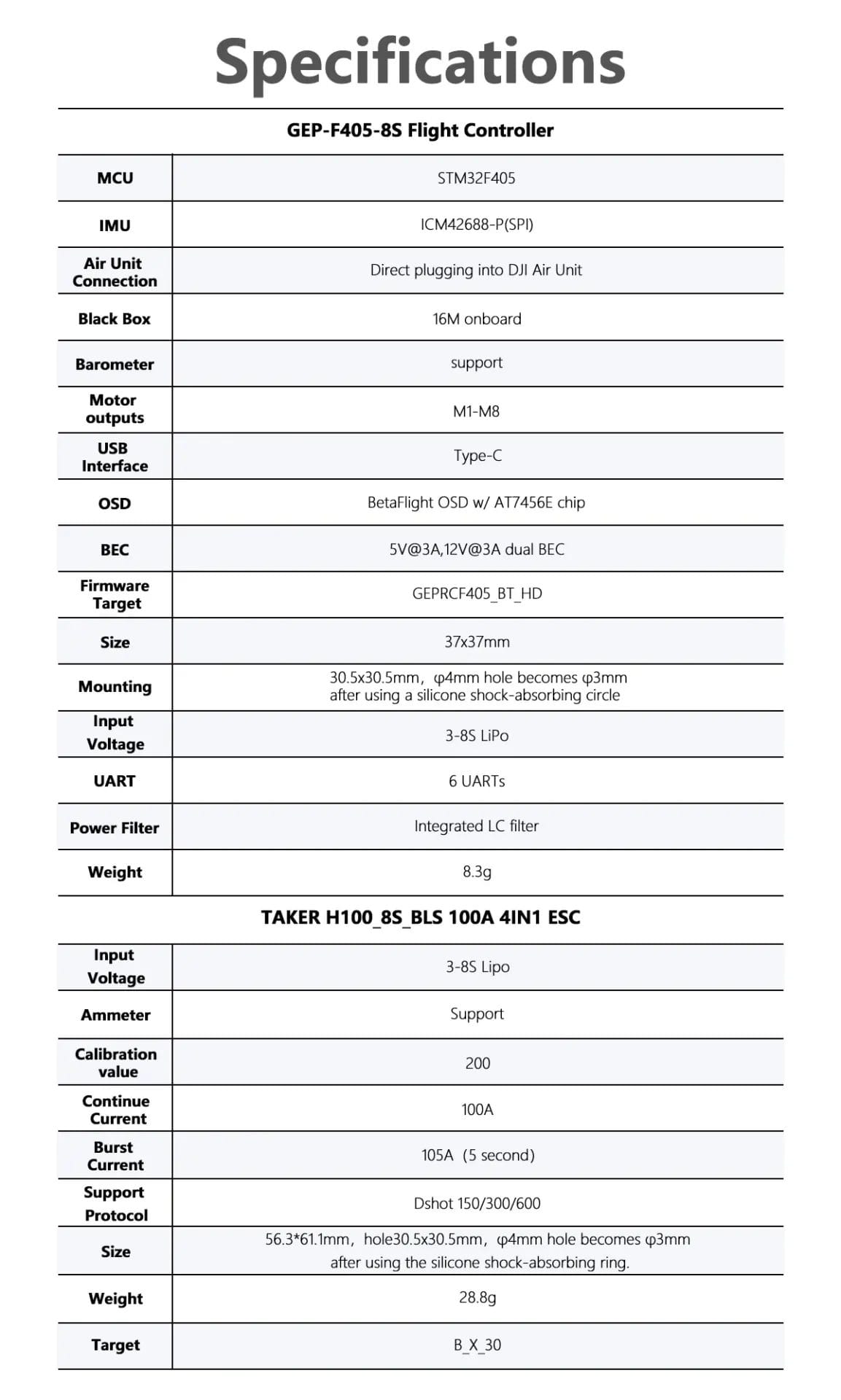

Specifications

GEP-F405-8S Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• Barometer: support
• Motor outputs：M1-M8
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,12V@3A dual BEC
• Firmware Target：GEPRCF405_BT_HD
• Size：37x37mm
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage：3-8S LiPo
• UART：6 UARTs
• Power Filter：Integrated LC filter
• Weight：8.3g

TAKER H100_8S_BLS 100A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Calibration value：200
• Continue Current：100A
• Burst Current：105A（5 second）
• Support Protocol: Dshot 150/300/600
• Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 28.8g
• Target: B_X_3

Includes

• 1 x FC board
• 1 x ESC board
• 1 x Capacitor
• 1 x O3 3-in-1 connection cable
• 2 x FC adapter cable
• 1 x sh1.0 4pin silicone cable
• 1 x Camera connection cable
• 1 x VTX connection cable
• 1 x XT90 power cable
• 4 x M3*30 screws
• 4 x M3*25 screws
• 8 x Nylon nuts
• 12 x Silicone anti-shake pads
