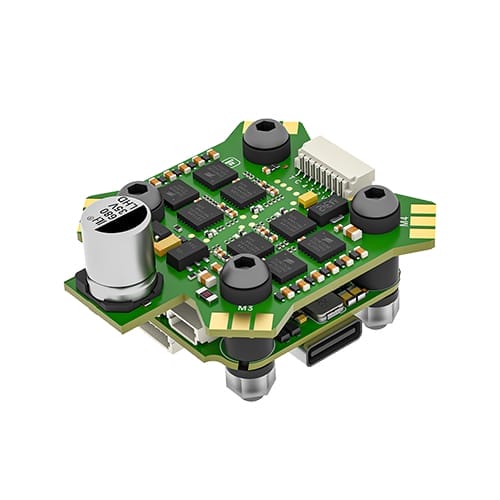

iFlight Blitz Mini F745 Stack (E55 Mini 4in1 ESC + F745 FC)

iflight blitz mini f745 stack e55 mini 4in1 esc f745 fc mantisfpv australia product showcase drone product green learn fpv e1720678366138
iflight blitz mini f745 stack e55 mini 4in1 esc f745 fc mantisfpv australia product showcase drone product green learn
iflight blitz mini f745 stack e55 mini 4in1 esc f745 fc mantisfpv australia product showcase drone product green learn fpv size

AU$219.95

The BLITZ Mini F7 V1.1 Flight Controller and E55 4-IN-1 2-6S ESC combo pack offers advanced flight control technology with plug-and-play simplicity, featuring visual debugging via FC indicator LEDs and support for a wide range of protocols. Designed for precision and efficiency, this lightweight and compact setup ensures a superior flying experience with reduced electrical noise and optimized component performance.

ONLY 4 LEFT

Earn 659^ points.
Add to Wishlist
Price Match Request
SKU: MF-2666120426 Categories: ,

Description

iFlight Blitz Mini F745 Stack (E55 Mini 4in1 ESC + F745 FC)

The BLITZ Mini F7 V1.1 Flight Controller and E55 4-IN-1 2-6S ESC combo pack offers advanced flight control technology with plug-and-play simplicity, featuring visual debugging via FC indicator LEDs and support for a wide range of protocols. Designed for precision and efficiency, this lightweight and compact setup ensures a superior flying experience with reduced electrical noise and optimized component performance.



iFlight logo



FC Specifications

  • MCU: STM32 F722
  • Gyro: BMI270
  • Barometer: DPS310
  • OSD Chip: AT7456
  • Flash: 8MB (Blackbox flash)
  • UARTs: 6
  • Motor Outputs: 4x (SH1.0 connector)
  • I2C Serial: SDA / SLA pads
  • Smartaudio / IRC Tramp VTX Protocol Supported
  • LED Controller: Yes
  • Beeper Pad: Yes
  • Firmware Target: IFRC-IFLIGHT_BLITZ_F722

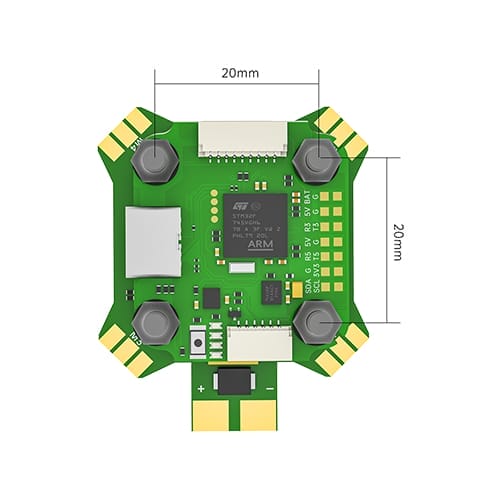

  • Mount Pattern: 20×20 mm / 4mm PCB hole diameter, silicone grommets for M3 screws
  • Dimensions: 30.5×27 mm
  • Weight: 5g

Wiring Suggestion

  • UART 1: For VTX HD / Analog
  • UART 2: For a Receiver
  • UART 3/4/5: For GPS or other sensors that require a serial port
  • UART 6: For ESC Telemetry

ESC Specifications

  • Mounting Holes: 20*20mm/Φ4mm
  • Weight: 11.3g
  • Supports: 2-6S Lipo input
  • MCU: G071
  • Constant: 55 Amps
  • Burst: 60 Amps
  • Current Sensor: Yes
  • BEC: No
  • Current Rate: 200
  • Supports: DShot150/300/600/MultiShot/OneShot etc.
  • Firmware: BLHeli 32
  • Target: IFLIGHT_BLITZ_G071_01 32.9
  • Firmware: BLHeli 32

Includes

  • 1x BLITZ Mini F7 V1.1 Flight Controller
  • 1x BLITZ Mini E55 4-IN-1 2-6S ESC
  • Silicone grommets
  • Wire harness for F7 Flight Controller

Note

If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.
