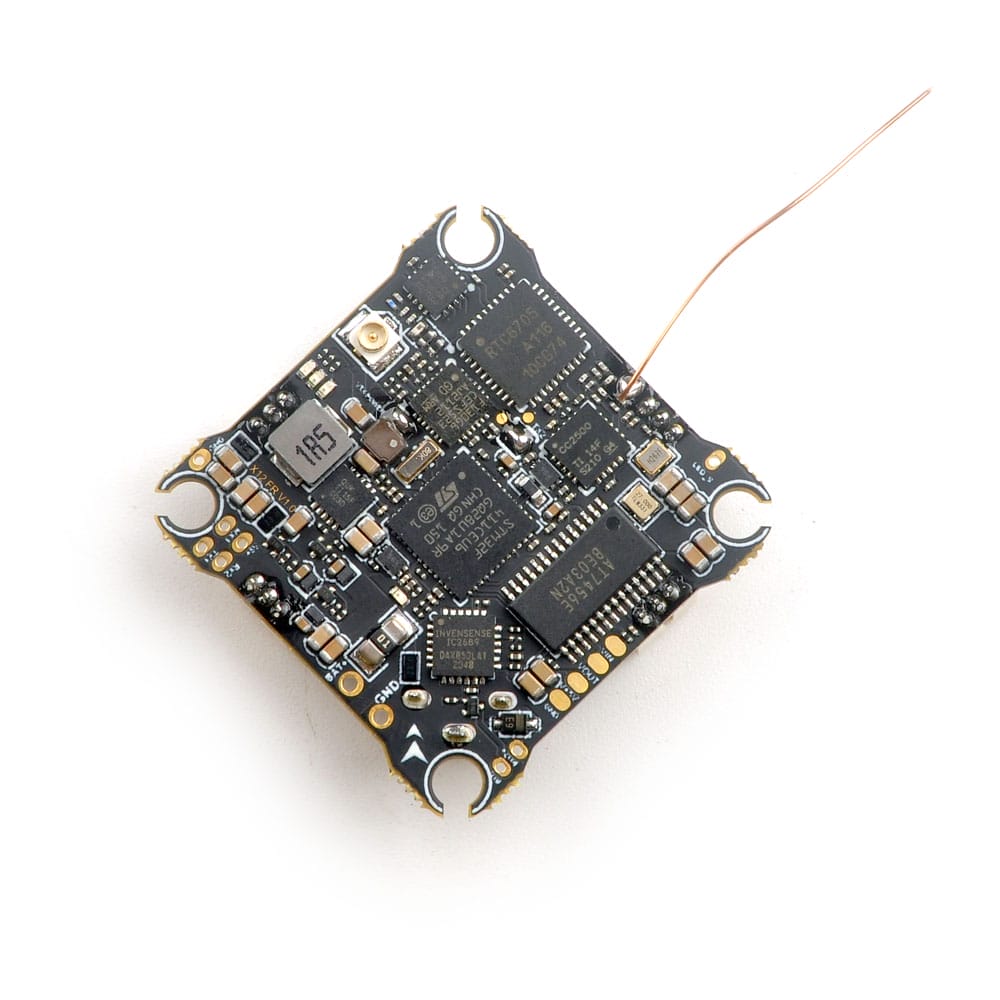

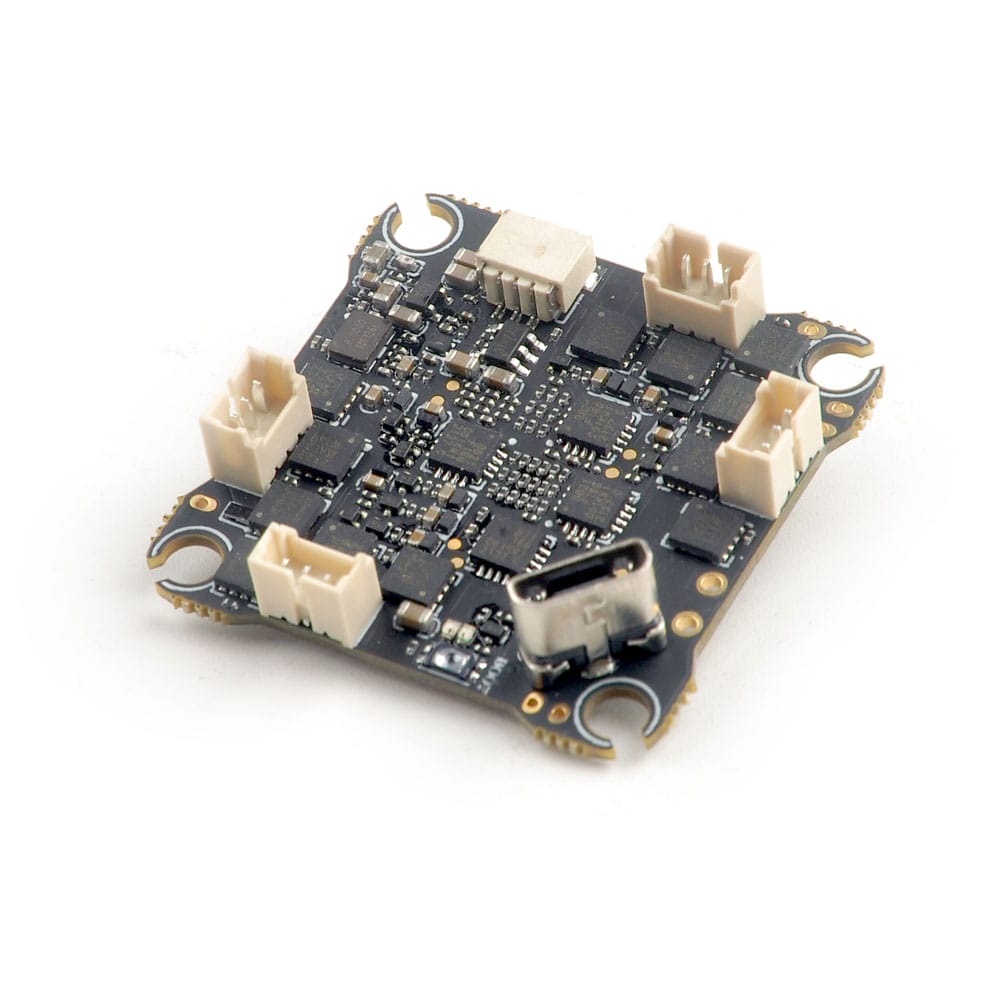

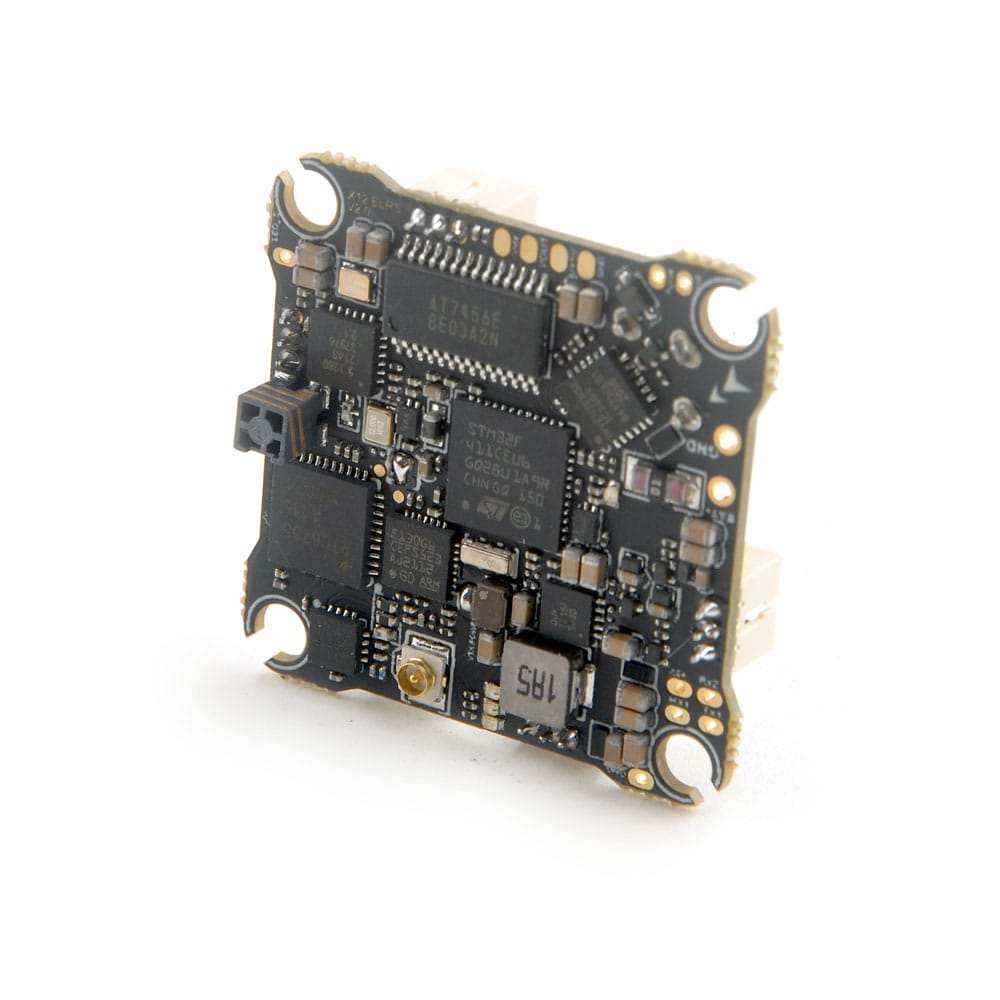

Happymodel X12 AIO 5-in-1 Board 12A Analog 400mW ELRS ICM42688
AU$129.95
The Happymodel X12 is a 5-in-1 AIO board featuring an F4 Flight Controller, onbard 12A 4-in-1 ESC, 5.8GHz OpenVTX, ELRS 2.4G. This AIO is great for brushless whoops with its great RX an VTX range!
5-in-1 AIO flight controller using OpenVTX (up to 400mW), 12A ESC (BLHeli_S ESC), onboard ELRS receiver (2.0 firmware), plugin connector for your motors and can take 1S or 2S batteries.
ONLY 2 LEFT
Description
Happymodel X12 AIO 5-in-1 Board 12A Analog 400mW ELRS ICM42688
The Happymodel X12 is a 5-in-1 AIO board featuring an F4 Flight Controller, onbard 12A 4-in-1 ESC, 5.8GHz OpenVTX, ELRS 2.4G. This AIO is great for brushless whoops with its great RX an VTX range!
5-in-1 AIO flight controller using OpenVTX (up to 400mW), 12A ESC (BLHeli_S ESC), onboard ELRS receiver (2.0 firmware), plugin connector for your motors and can take 1S or 2S batteries.
Specifications
- MCU: STM32F411CEU6 (100MHz, 512KB Flash)
- IMU Sensor: ICM20689 or BMI270 or ICM42688P (SPI)
- Mounting: 25.5mm × 25.5mm hole spacing
- Power Input: 1–2S LiPo (DC 2.9V–8.7V)
- OSD: Built-in Betaflight OSD (SPI control)
- VTX: Built-in 5.8G OpenVTX (0mW–400mW)
- Receiver Options: Built-in ExpressLRS, FrSky D8/D16, or Flysky AFHDS-2A
- Voltage Sensor: Built-in, scale: 110
- Current Sensor: Built-in, scale: 470
4-in-1 ESC (Onboard)
- Power Supply: 1–2S LiPo/LiPo HV
- Current Rating: 12A continuous, 15A peak (3 sec)
- Firmware:
Z_H_30_REV16_7.HEX(factory), supports Bluejay - Protocol: Default DSHOT300
- Bluejay Setup: Use 48kHz with startup power set to 1100/1200
Onboard SPI ExpressLRS 2.4GHz
- Packet Rates: 50Hz / 150Hz / 250Hz / 500Hz
- Firmware Version: ExpressLRS v2.0
- RF Frequency: 2.4GHz
- Antenna: SMD
- Telemetry Power: <12dBm
- Note: Not separately flashable, compatible with ELRS V2.0 TX module
Onboard 5.8G OpenVTX
- Firmware: OPENVTX
- Control: Smartaudio v2.1
- Modes: PIT, RCE
- Channels: 48ch
- Output Power: 0 / RCE / 25mW / 100mW / 400mW
- Power Supply: 5V
- Current Draw: <650mA (at 400mW)
- Connector: U.FL

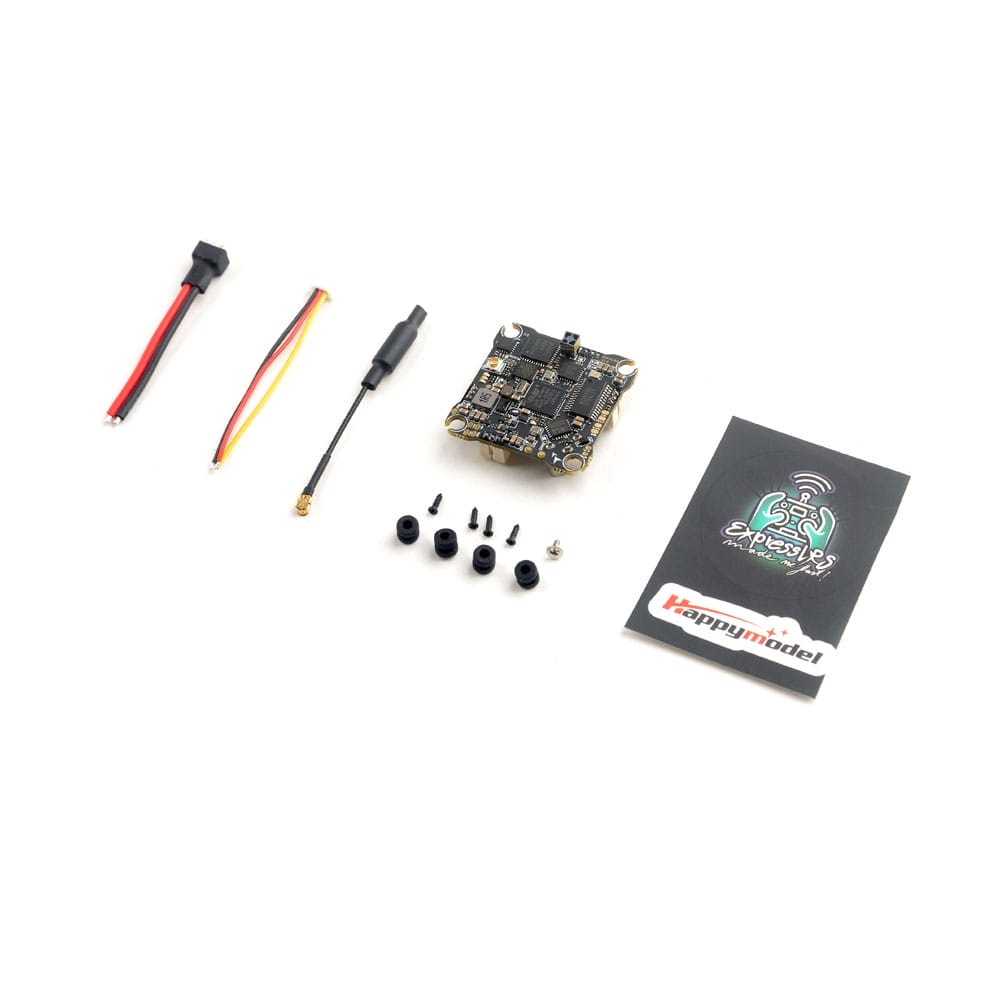

Includes
- 1x Happymodel X12 AIO 5-in-1 Board 12A Analog 400mW ELRS ICM42688
