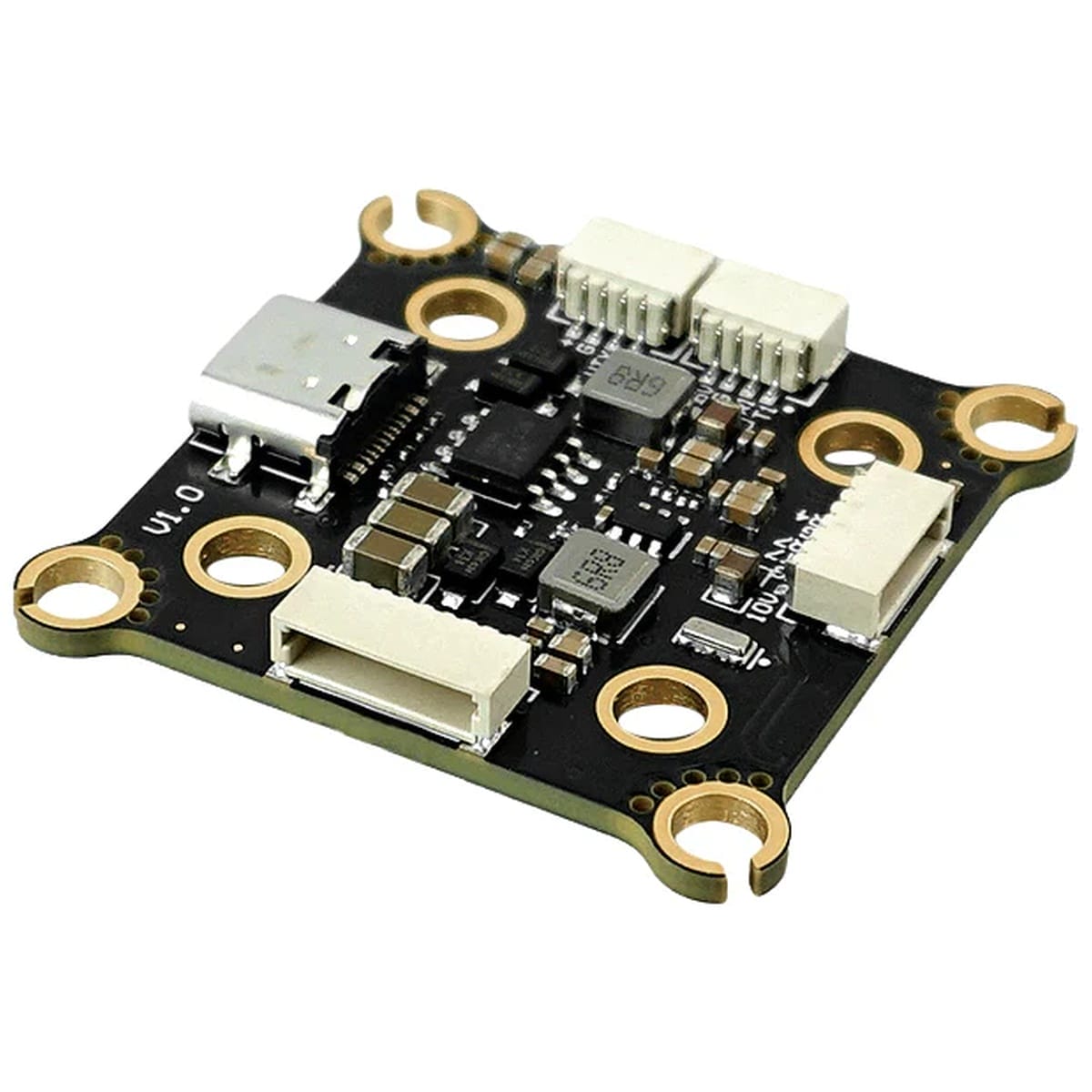

SEQURE H743 V2 ICM42688P 4-8S Dual BEC Flight Controller
AU$116.96

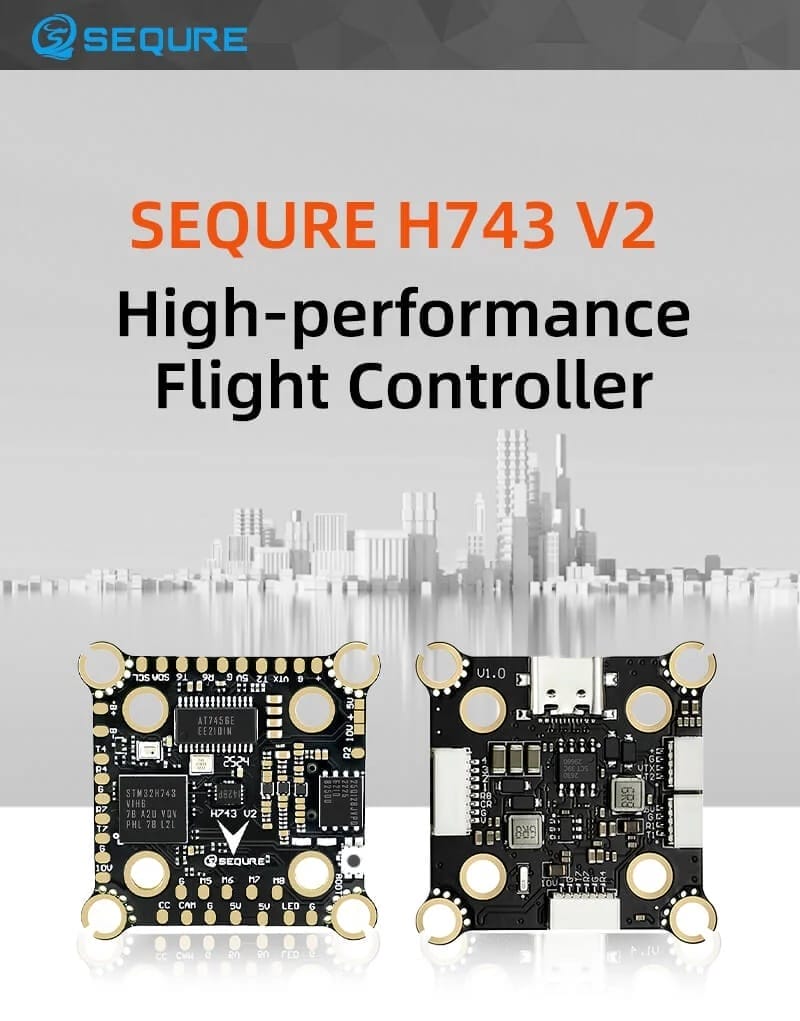

The SEQURE H743 V2 is a high-performance flight controller built around the STM32H743 480MHz processor and ICM-42688-P gyro, with dual BEC outputs (5V/2.5A + 10V/2A) for direct plug-in support of DJI O3, O4, O4 Pro and analog VTX modules. With dual 20×20mm and 30.5×30.5mm mounting, support for up to 8 motors (X8), 16MB blackbox and 6 UARTs, it’s designed to handle racing, freestyle, X8 cinelifters, and aerial photography builds.
ONLY 3 LEFT
Description
SEQURE H743 V2 ICM42688P 4-8S Dual BEC Flight Controller
The SEQURE H743 V2 is a high-performance flight controller built around the STM32H743 480MHz processor and ICM-42688-P gyro, with dual BEC outputs (5V/2.5A + 10V/2A) for direct plug-in support of DJI O3, O4, O4 Pro and analog VTX modules. With dual 20×20mm and 30.5×30.5mm mounting, support for up to 8 motors (X8), 16MB blackbox and 6 UARTs, it’s designed to handle racing, freestyle, X8 cinelifters, and aerial photography builds.
Features

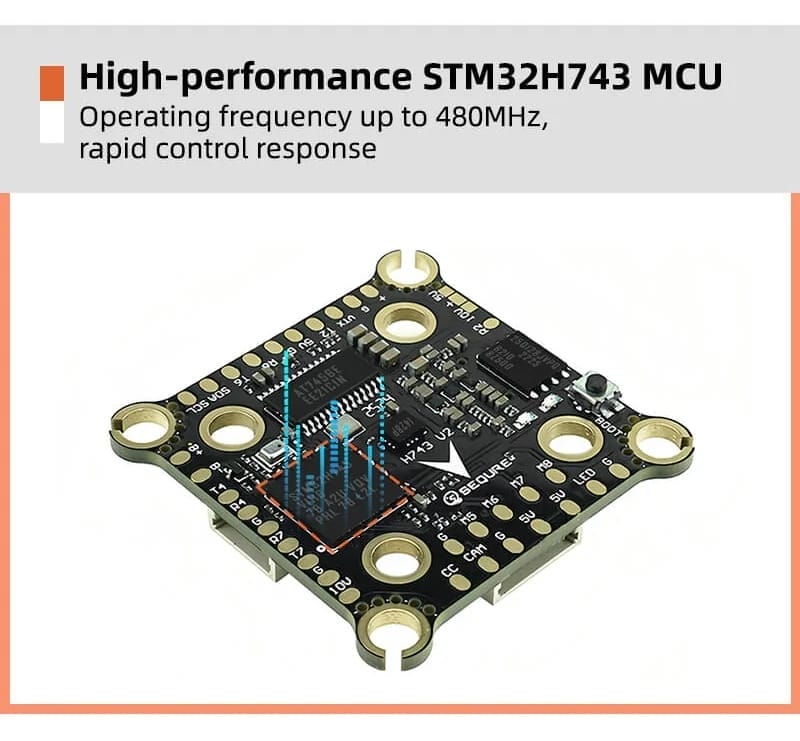

- High-performance STM32H743 processor running at 480MHz for rapid control response

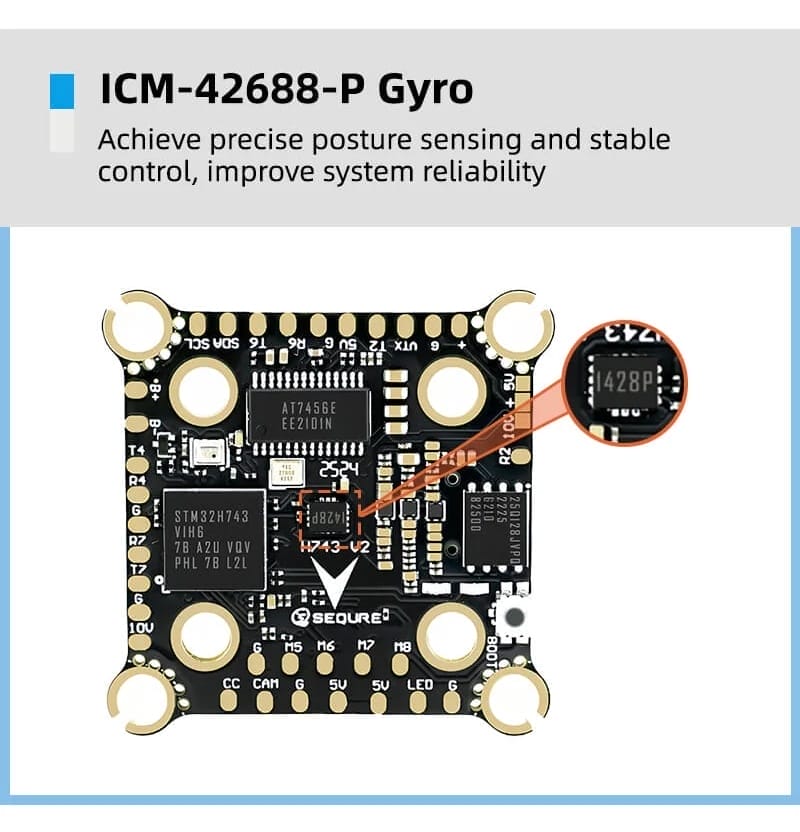

- ICM-42688-P gyroscope delivers precise gesture sensing and stable control for improved system reliability

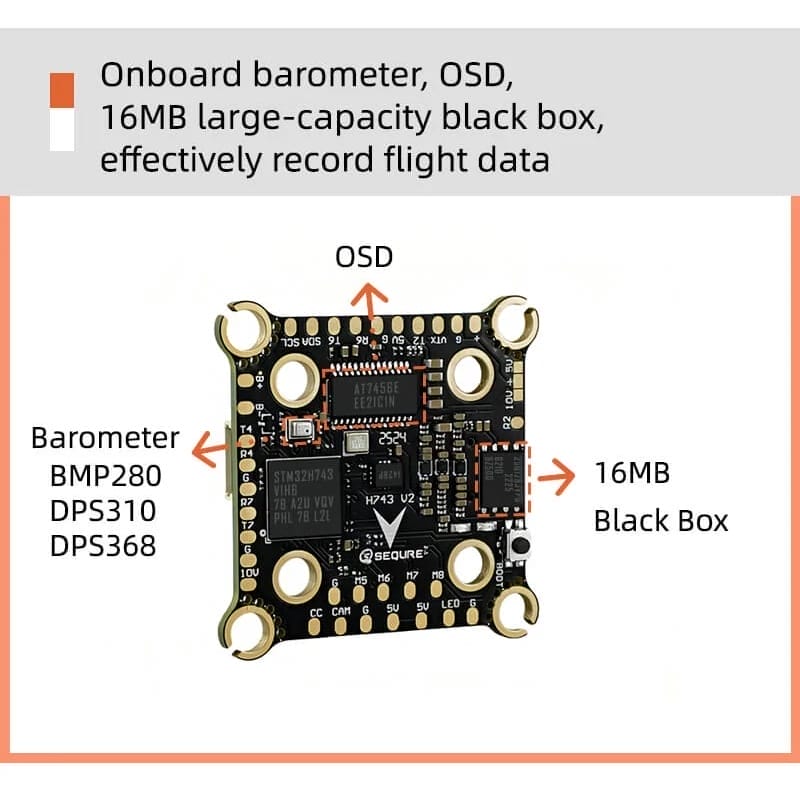

- Onboard barometer, OSD and 16MB blackbox for effective flight data recording

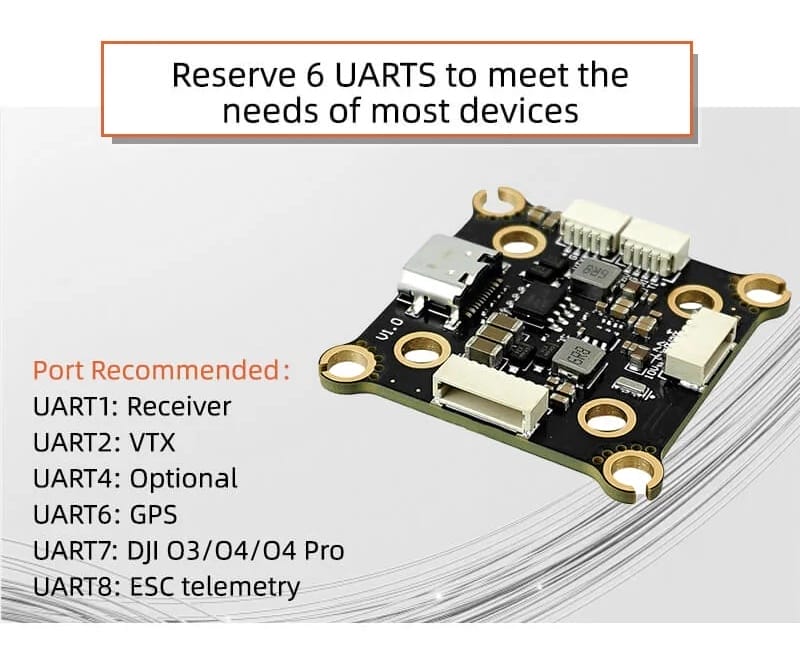

- 6 UARTs reserved to meet the needs of most peripheral devices

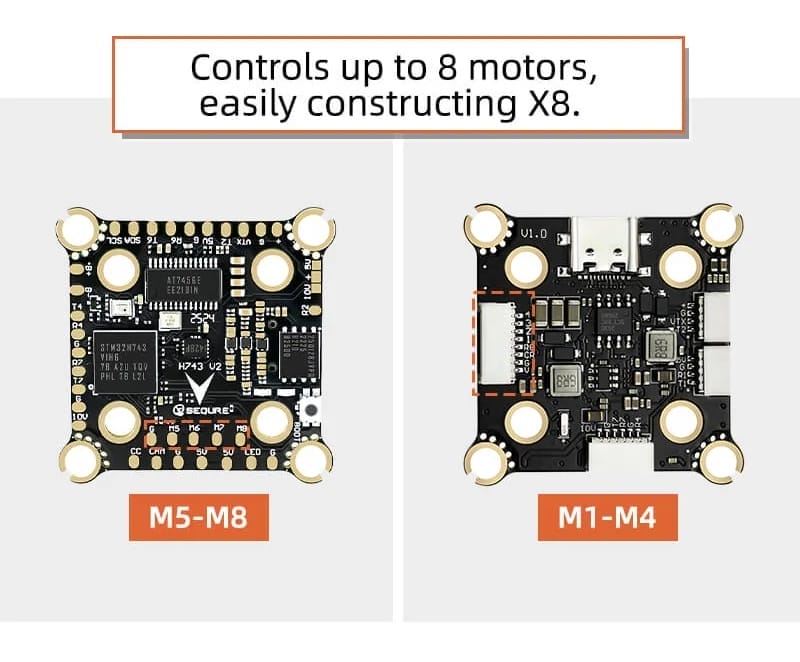

- Controls up to 8 motors, easily constructing X8 configurations

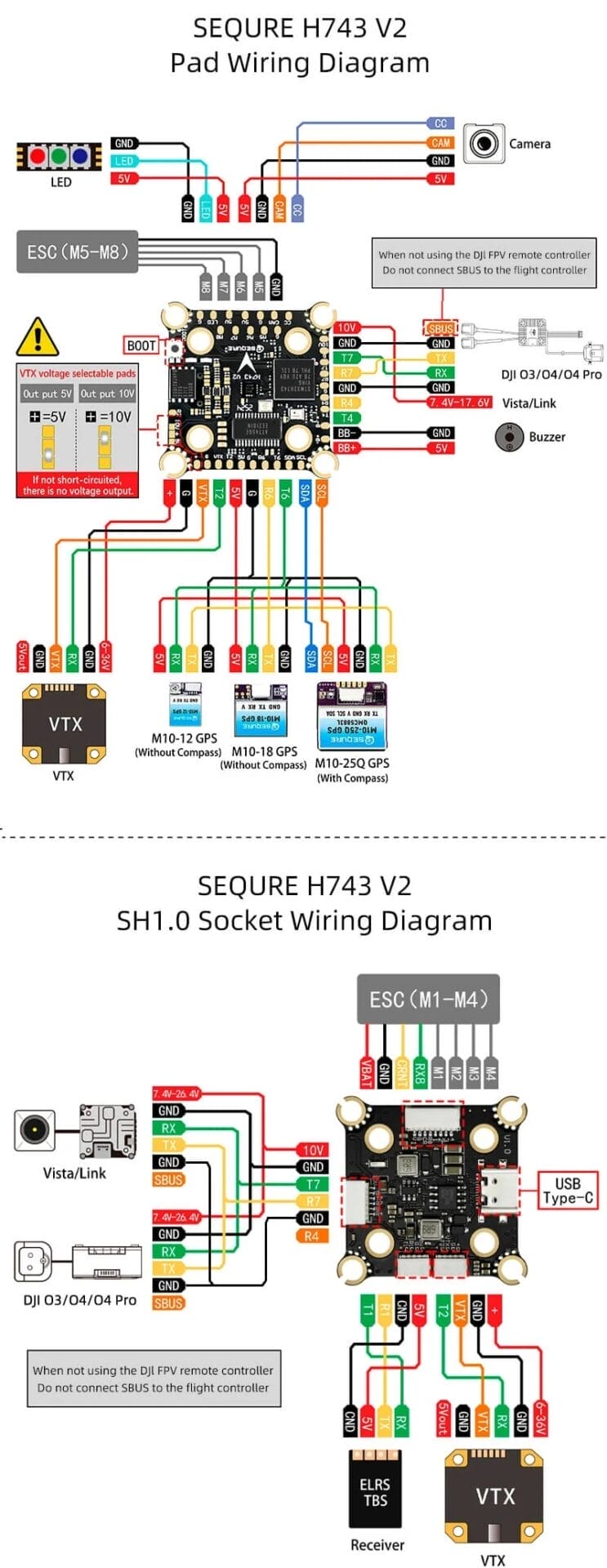

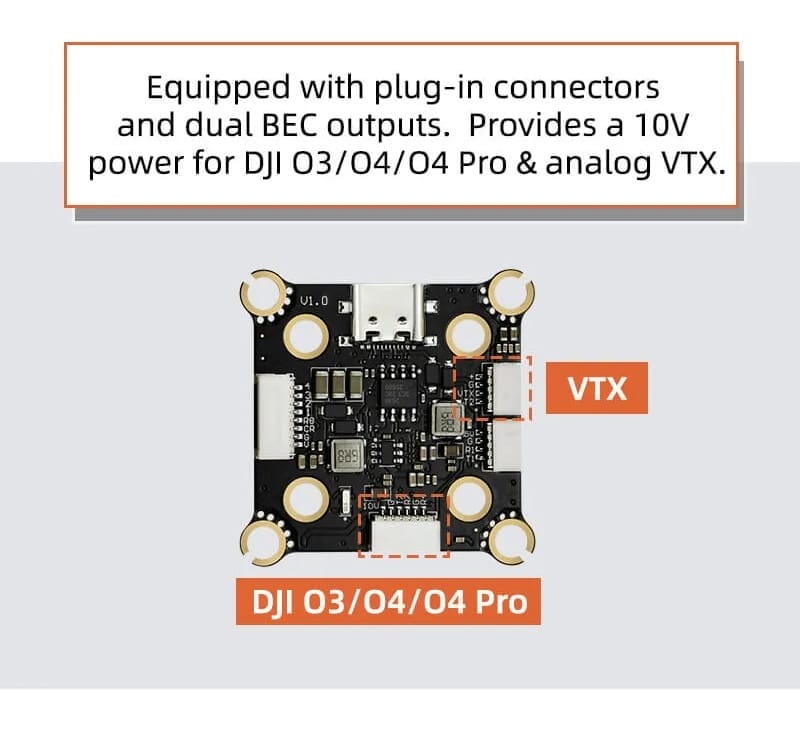

- Plug-in connector with dual BEC outputs providing independent 10V — DJI O3/O4/O4 Pro and analog VTX can plug in directly
- Wide voltage 4-8S Lipo input with both 20×20mm and 30.5×30.5mm mounting holes — mini design suitable for racing, aerial photography and freestyle frames

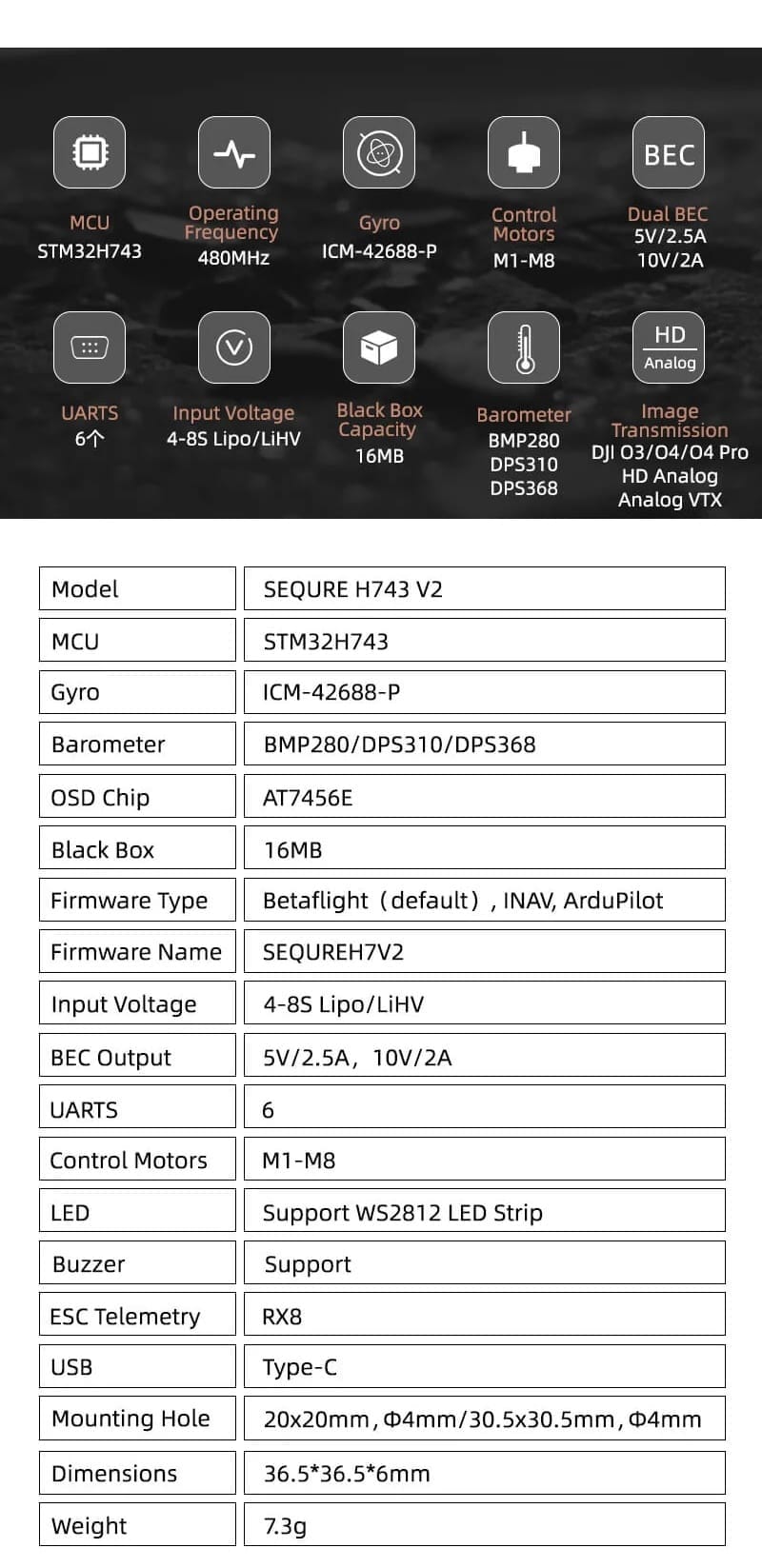

Specifications
- Product Name: SEQURE H743 V2
- Processor: STM32H743 (480MHz)
- Gyroscope: ICM-42688-P
- Barometer: BMP280 / DPS310 / DPS368
- OSD Chip: AT7456E
- Blackbox: 16MB
- Firmware Type: Betaflight (default), INAV, ArduPilot
- Firmware Name: SEQUREH7V2
- Input Voltage: 4-8S Lipo / LiHV
- BEC Output: 5V/2.5A, 10V/2A
- UARTs: 6
- Motor Outputs: M1-M8
- LED: WS2812 LED Strip
- Buzzer: Supported
- ESC Telemetry: RX8
- USB: Type-C

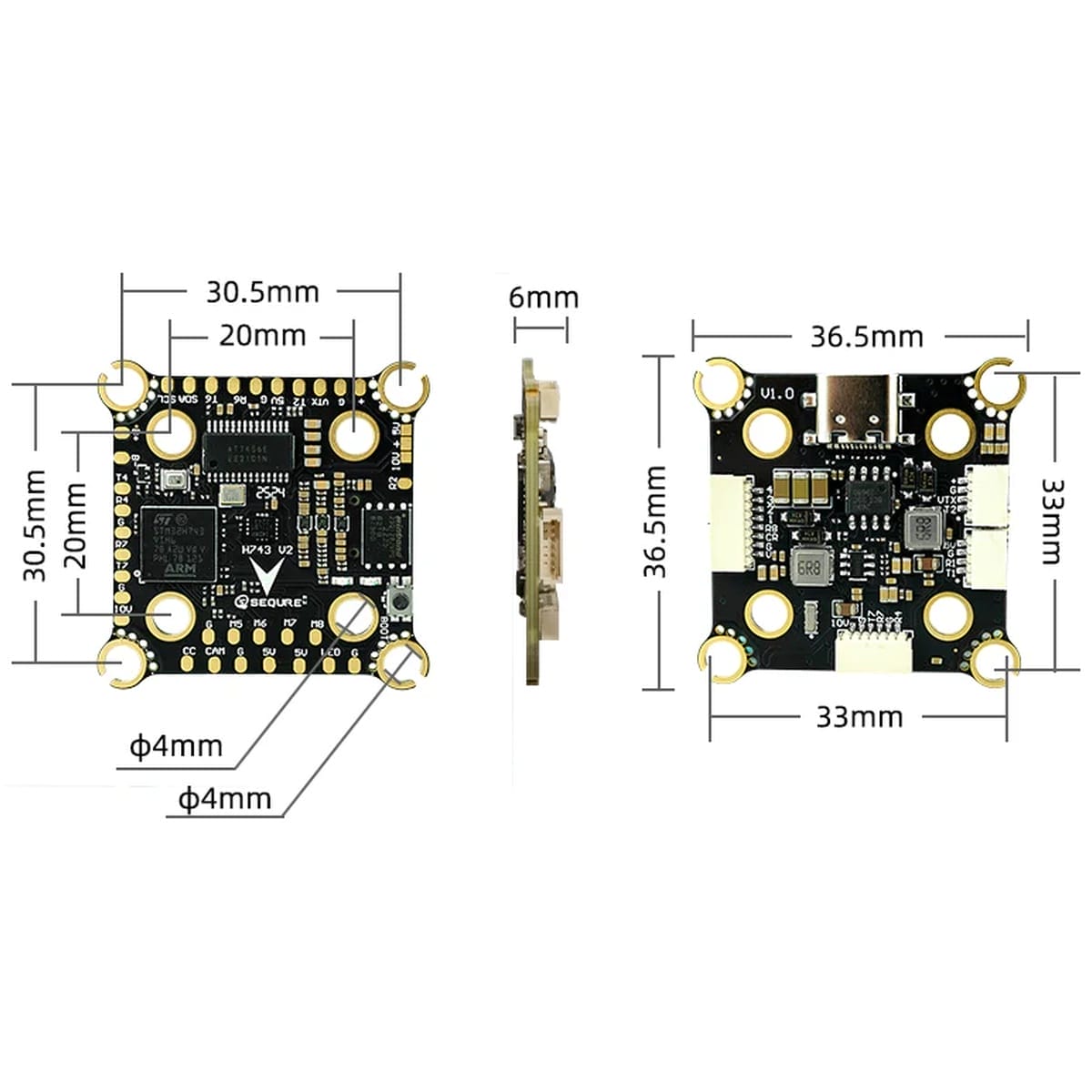

- Mounting: 20×20mm Φ4mm/M3 and 30.5×30.5mm Φ4mm/M3
- Product Size: 36.5 × 36.5 × 6mm

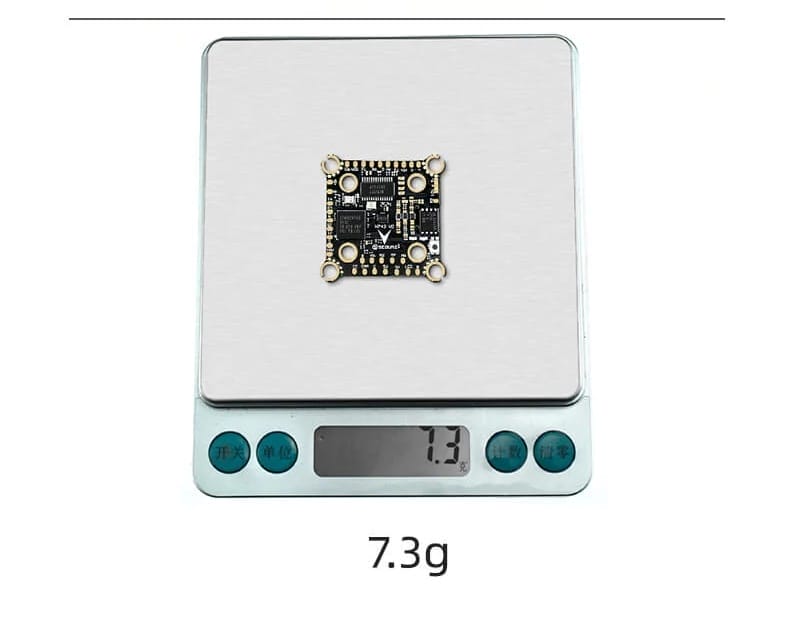

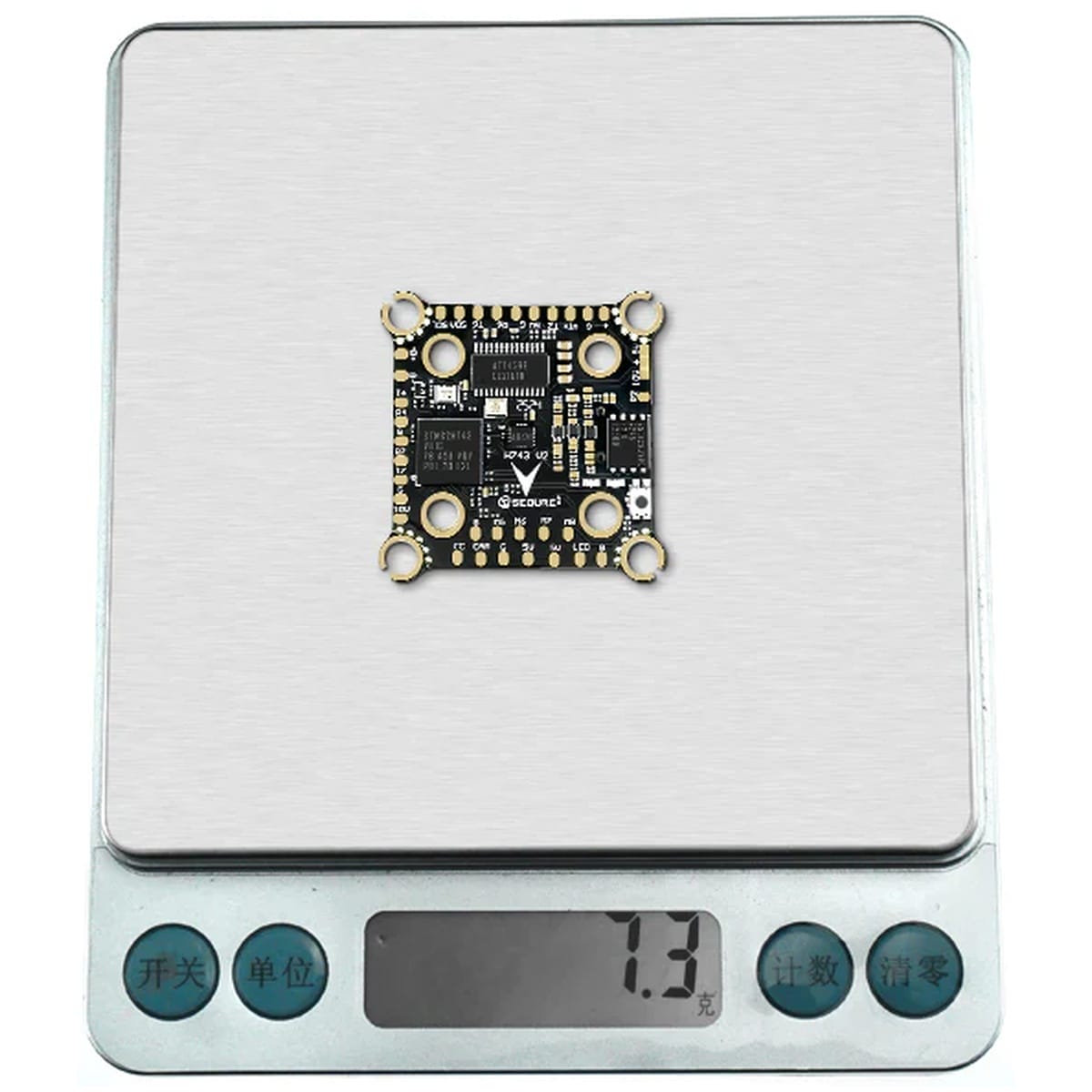

- Product Weight: 7.3g

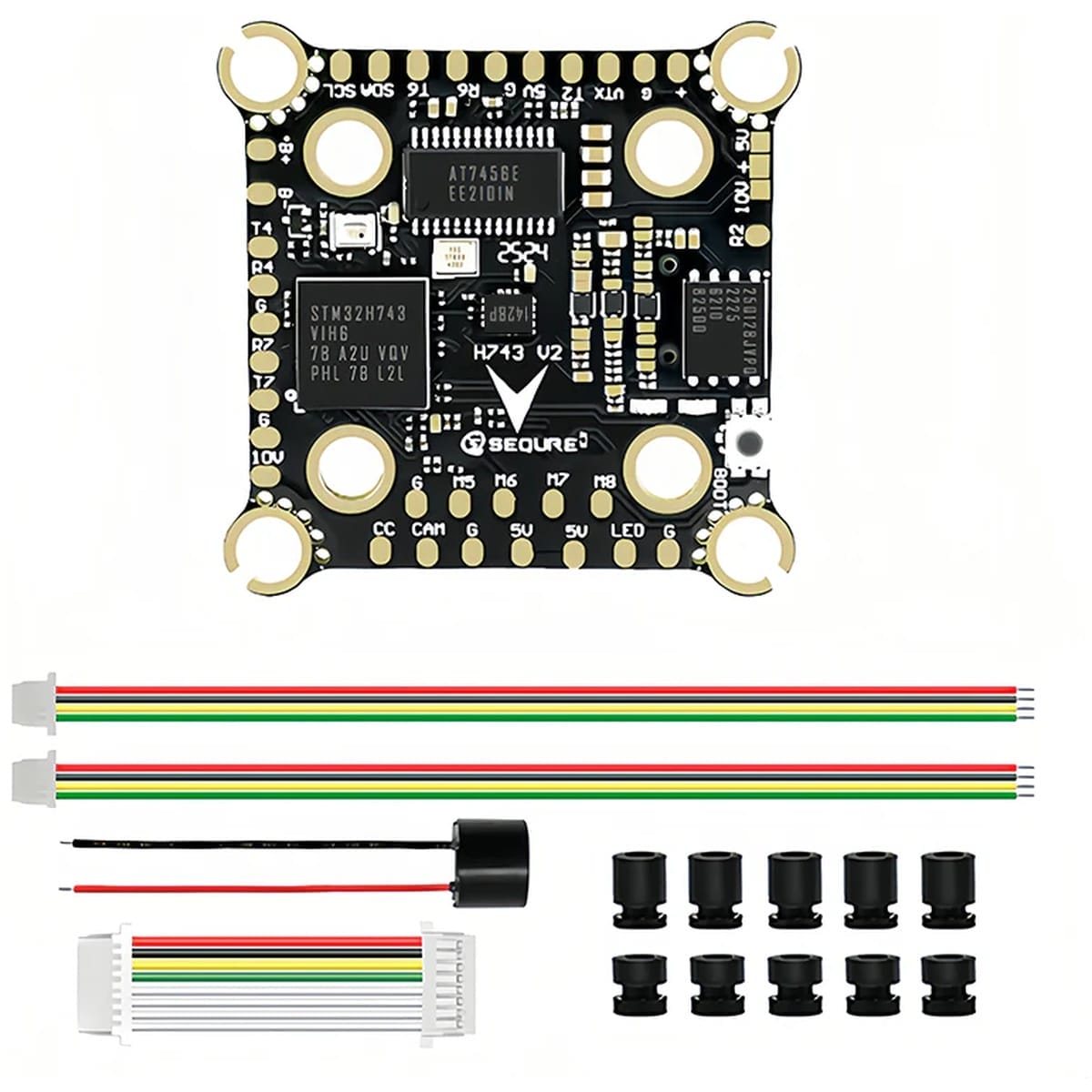

Includes
- SEQURE H743 V2 FC × 1
- 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable × 1
- 30AWG 100mm Single-head SH1.0-4P Flat Cable × 2
- 60mm Length 12095 5V Buzzer × 1
- M3*8mm Shock-absorbing Ball (Black) × 5
- M3*6.6mm Shock-absorbing Ball (Black) × 5
