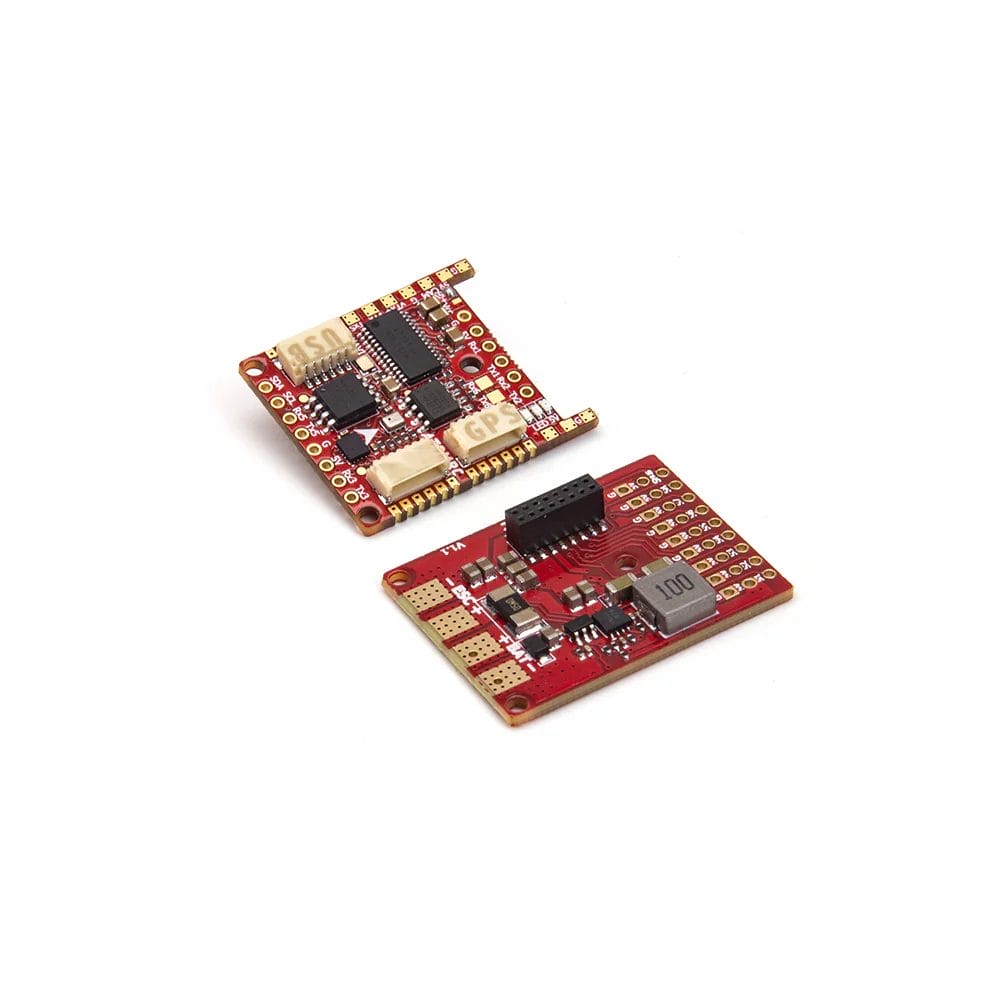

ATOMRC F405 NAVI Mini Wing Flight Controller
AU$84.62

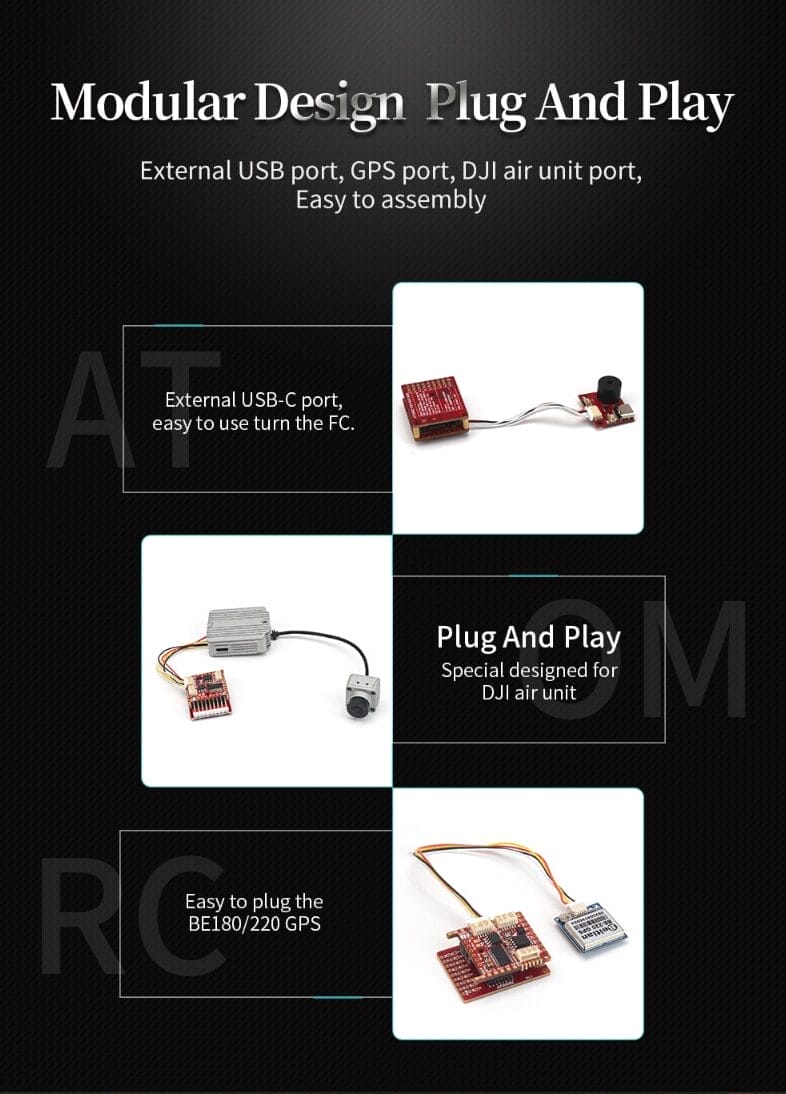

The ATOMRC F405 NAVI Mini is a compact flight controller that supports INAV and ArduPilot firmware, featuring a modular plug-and-play design with external USB-C, GPS, and DJI Air Unit ports for easy assembly. It supports both analog and digital VTX, including HDZERO, and allows VTX power selection between 5V or VCC. Designed with interference isolation for clean signals and better heat dissipation, it includes 8 PWM outputs, an SBUS port, and space-saving layout with solder pads on top and pins underneath.
In stock
Description
ATOMRC F405 NAVI Mini Wing Flight Controller

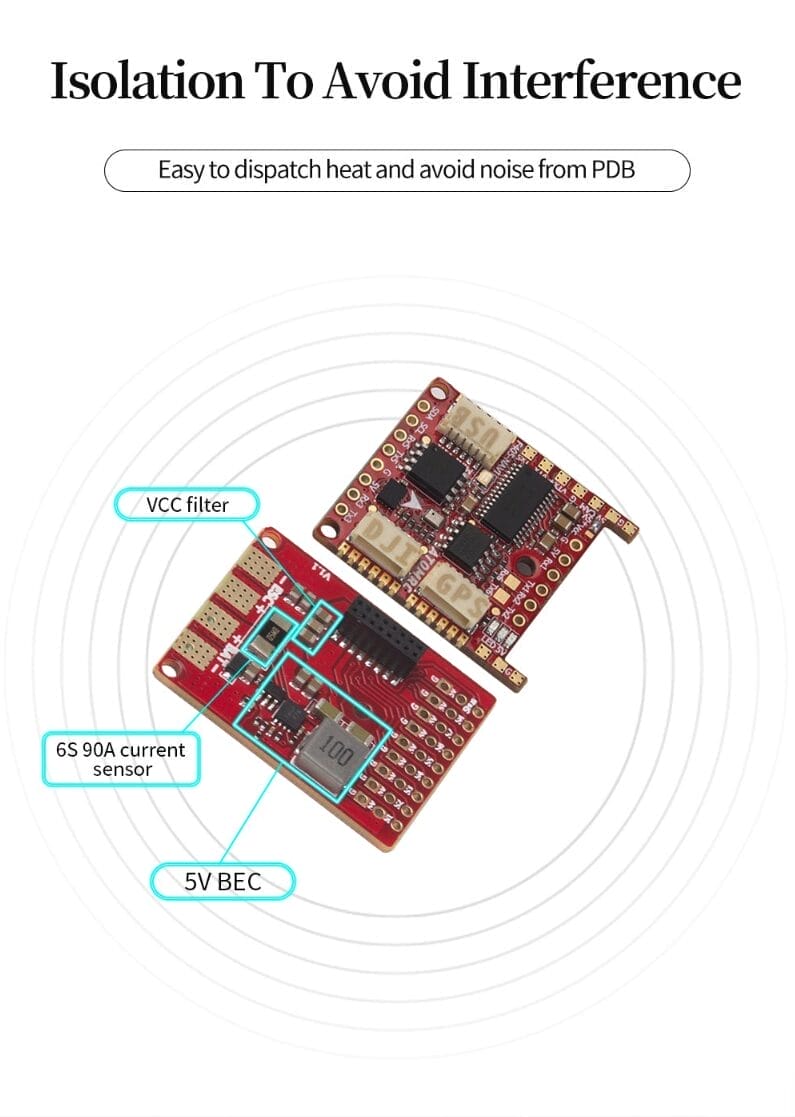

The ATOMRC F405 NAVI Mini is a compact flight controller that supports INAV and ArduPilot firmware, featuring a modular plug-and-play design with external USB-C, GPS, and DJI Air Unit ports for easy assembly. It supports both analog and digital VTX, including HDZERO, and allows VTX power selection between 5V or VCC. Designed with interference isolation for clean signals and better heat dissipation, it includes 8 PWM outputs, an SBUS port, and space-saving layout with solder pads on top and pins underneath.
Specifications
- MCU: STM32F405RGT6
- IMU: BMI270

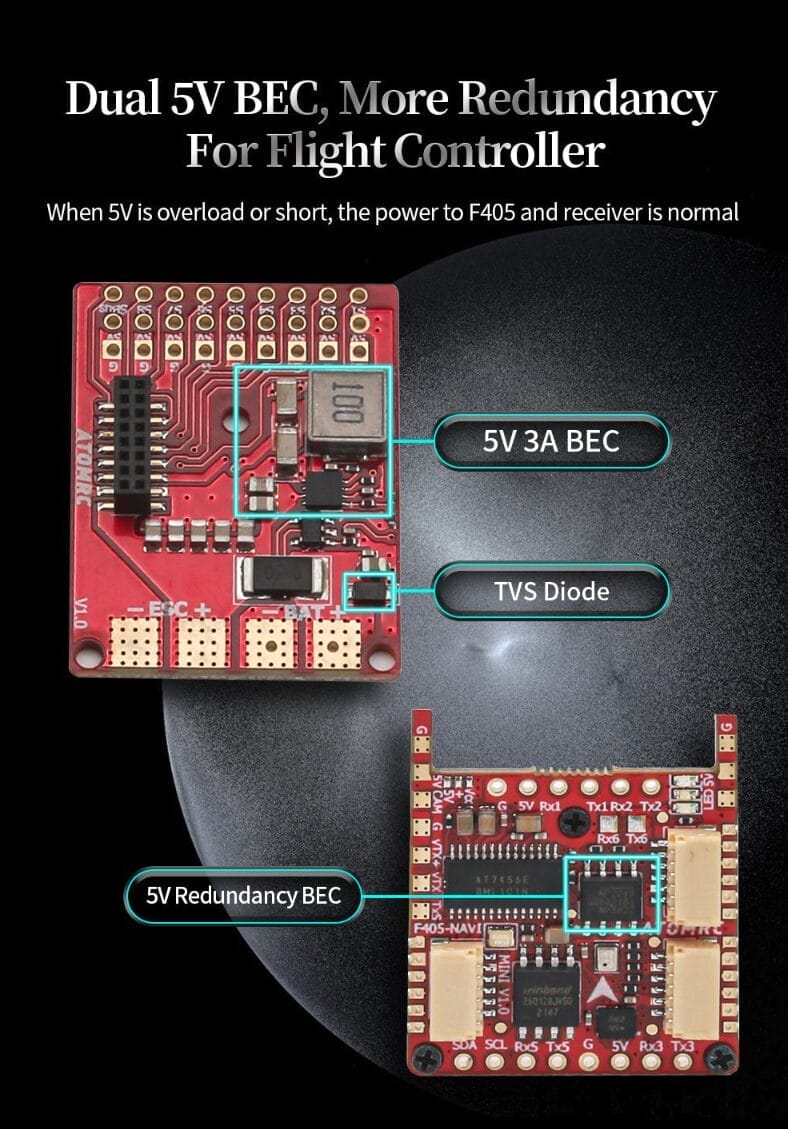

- BEC Output: 5V 3A
- Flash Storage: 16Mbyte
- OSD Chip: AT7456E

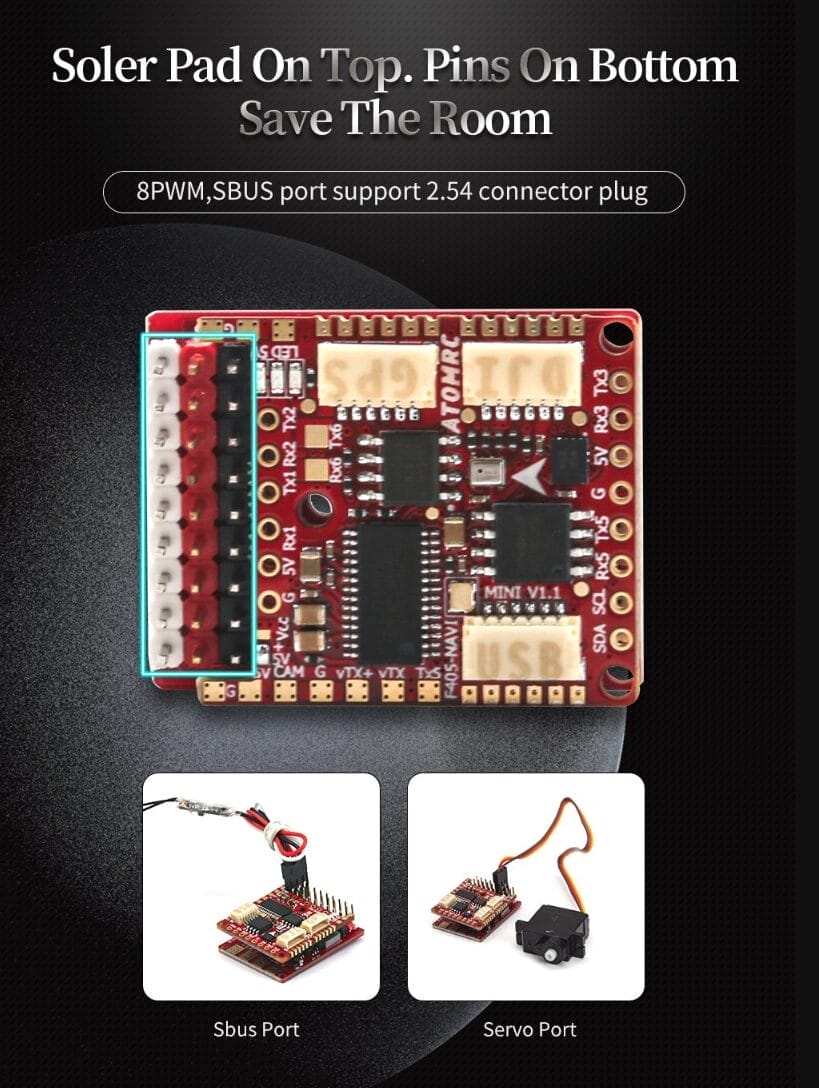

- PWM Outputs: 8
- Serial Ports: 6 × UART
- Barometer: SPL06-001
- External USB: BOOT / Type-C

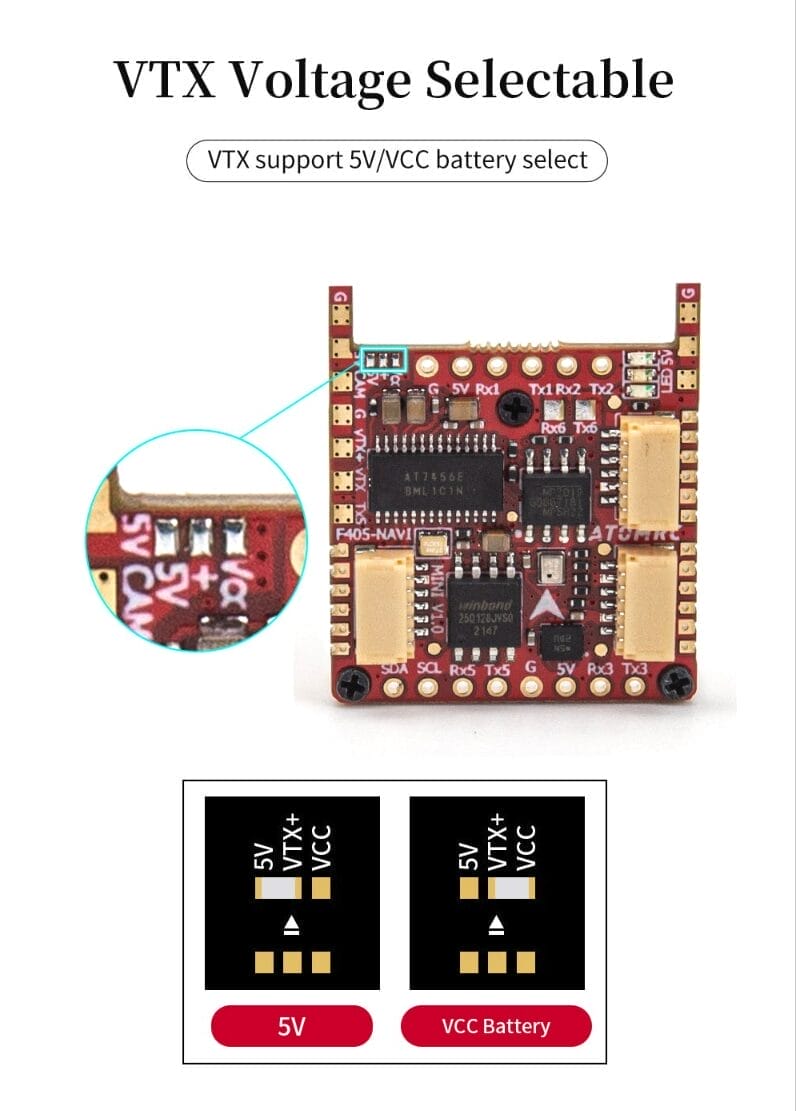

- VTX Voltage: 5V / VCC
- LED Support: WS2812
- Firmware Target: Betafl;light

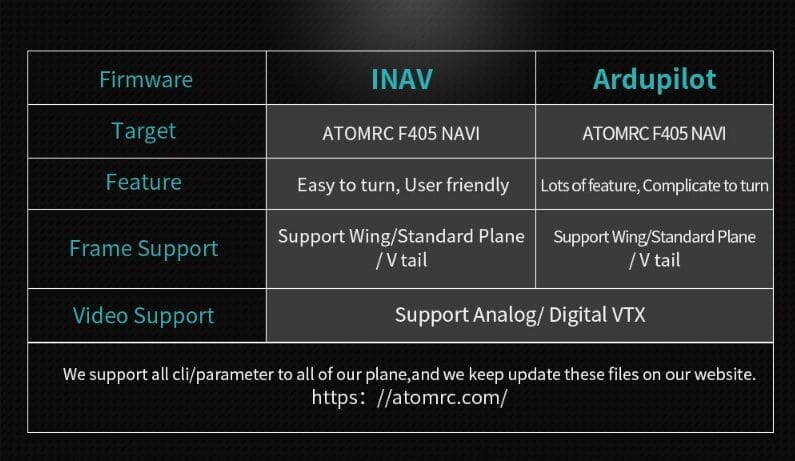

- ArduPilot: ATOMRCF405NAVI
- iNav: ATOMRCF405NAVI
- Ammeter: 90A
- Voltage Input: 3–6S LiPo
- Current Meter Ratio: 257
- Offset: 20
- Weight: 10g

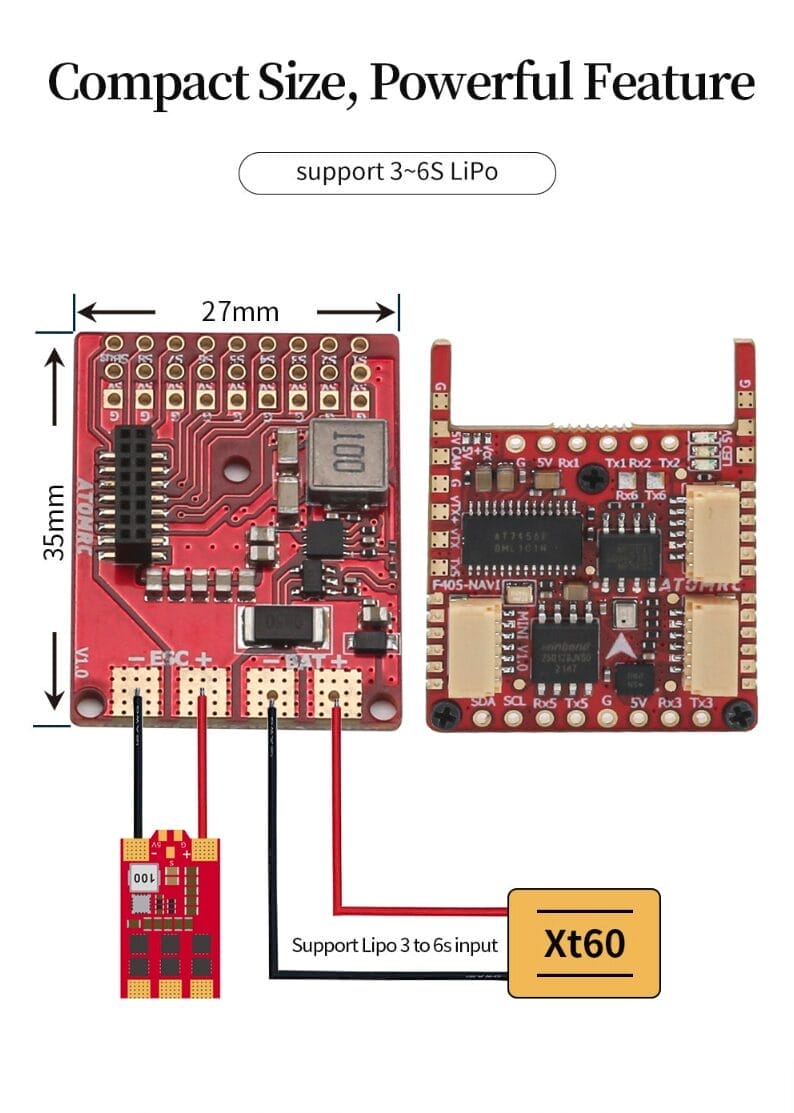

- Size: 35 × 27 × 12 mm

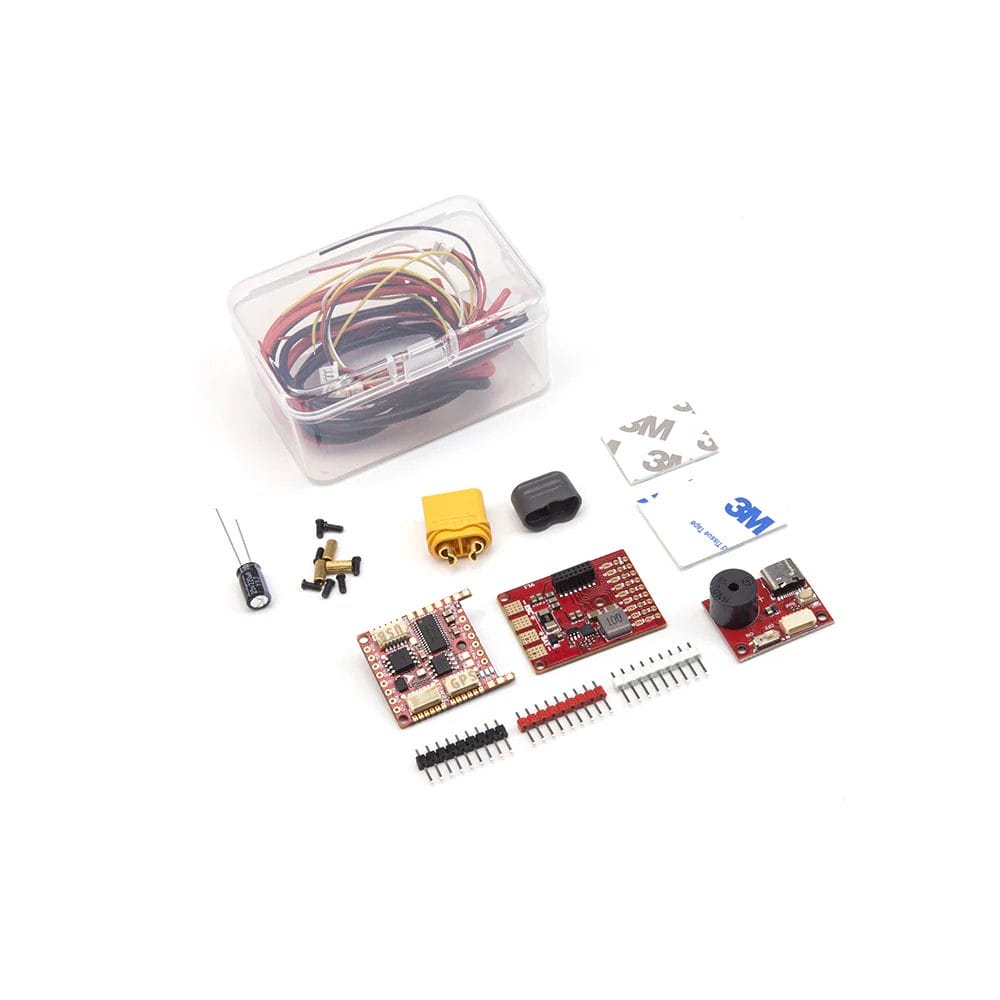

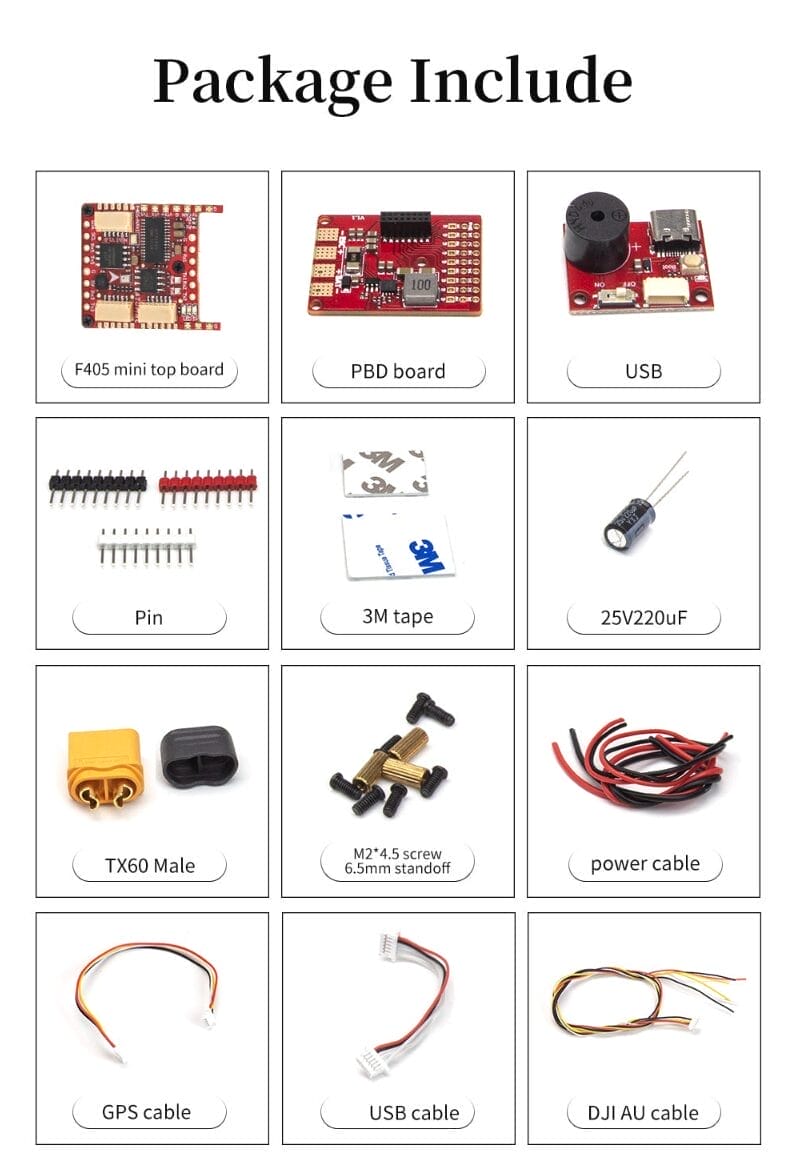

Includes
- 1x ATOMRC F405 NAVI Mini Wing Flight Controllerr
