Flywoo Goku F405 HD 1S 5A ELRS AIO V2.0
AU$96.91
This Flywoo GOKU F405 HD 1S 5A AIO V2 is tailored for ultra-micro 1S HD drones, building on V1’s strengths with key upgrades. At its core is the STM32F405 BGA micro MCU, delivering 168MHz high-frequency performance, low power consumption, and a mere 2.6g weight. Its innovative cross-shaped design fits all 1S frame kits. Key V2 upgrades: On-board Flywoo 1S O4 5V BEC supports a minimum operating voltage of 2.6V when paired with DJI O4 VTX.
ONLY 2 LEFT
Description
Flywoo Goku F405 HD 1S 5A ELRS AIO V2.0
This Flywoo GOKU F405 HD 1S 5A AIO V2 is tailored for ultra-micro 1S HD drones, building on V1’s strengths with key upgrades. At its core is the STM32F405 BGA micro MCU, delivering 168MHz high-frequency performance, low power consumption, and a mere 2.6g weight. Its innovative cross-shaped design fits all 1S frame kits. Key V2 upgrades: On-board Flywoo 1S O4 5V BEC supports a minimum operating voltage of 2.6V when paired with DJI O4 VTX. It matches V1 exactly in weight, performance, and shape for a seamless classic experience. Also integrated are an ELRS 2.4GHz receiver and TXCO (Temperature-Compensated Crystal Oscillator) for stable, low-latency signals. On-board ICM42688p gyro and 8MB Betaflight black box enable flight data recording and analysis—making it an ideal choice for both pros and beginners building ultra-micro 1S HD drones.
Features
- On board FLYWOO O4 1S 5V BEC module, it can achieve a minimum voltage of 2.6V.
- Integrated Serial ELRS 2.4GHz receiver (with TCXO crystal oscillator for superior precision and stability)
- STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
- Equipped with ICM-42688P gyro and 8MB Betaflight Blackbox flash memory

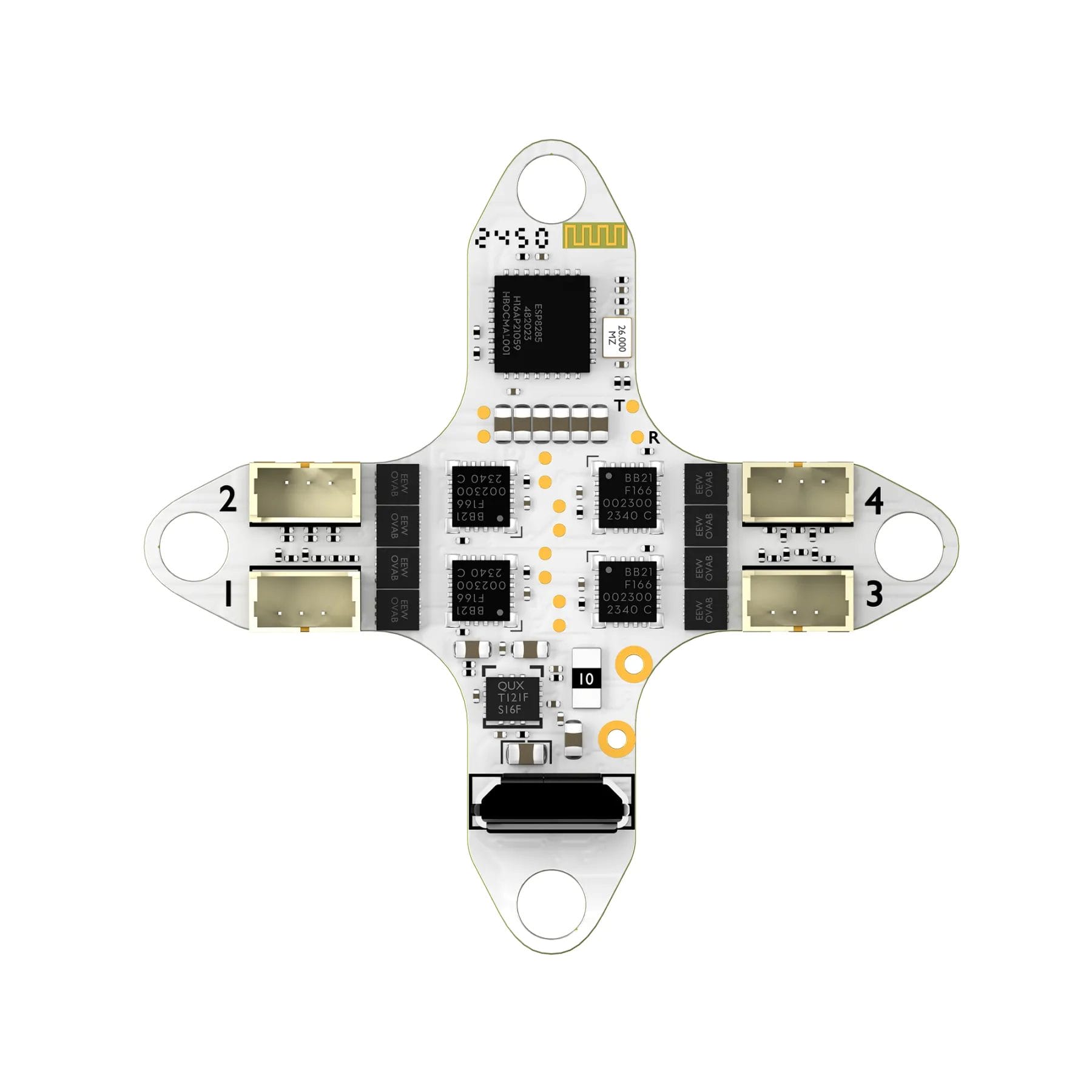

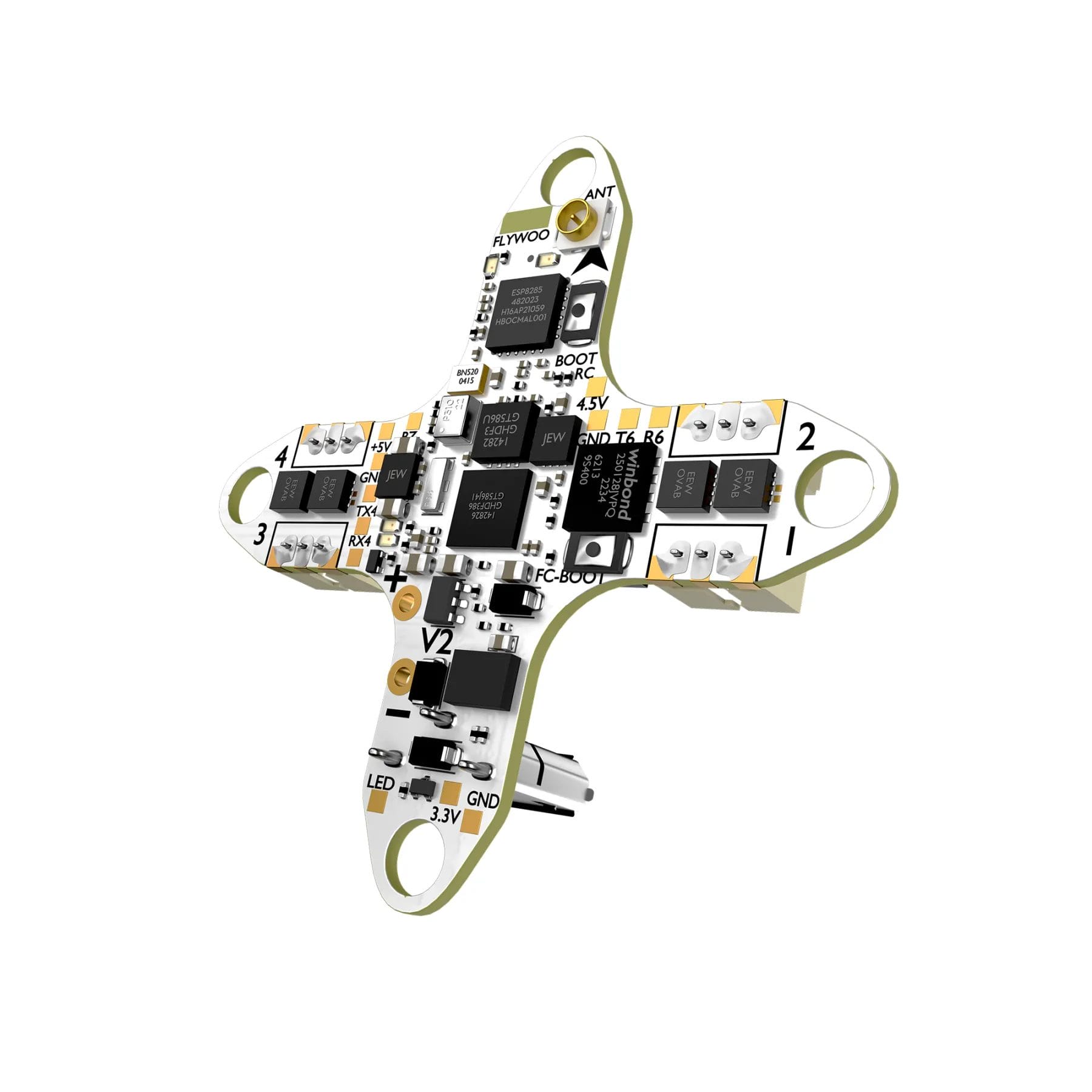

- Ultra-compact, slim, cross-shaped PCB layout compatible with all popular 1S frames
- Specifically optimized for 1S HD drone setups, including Walksnail, HDZero, and DJI O4 systems

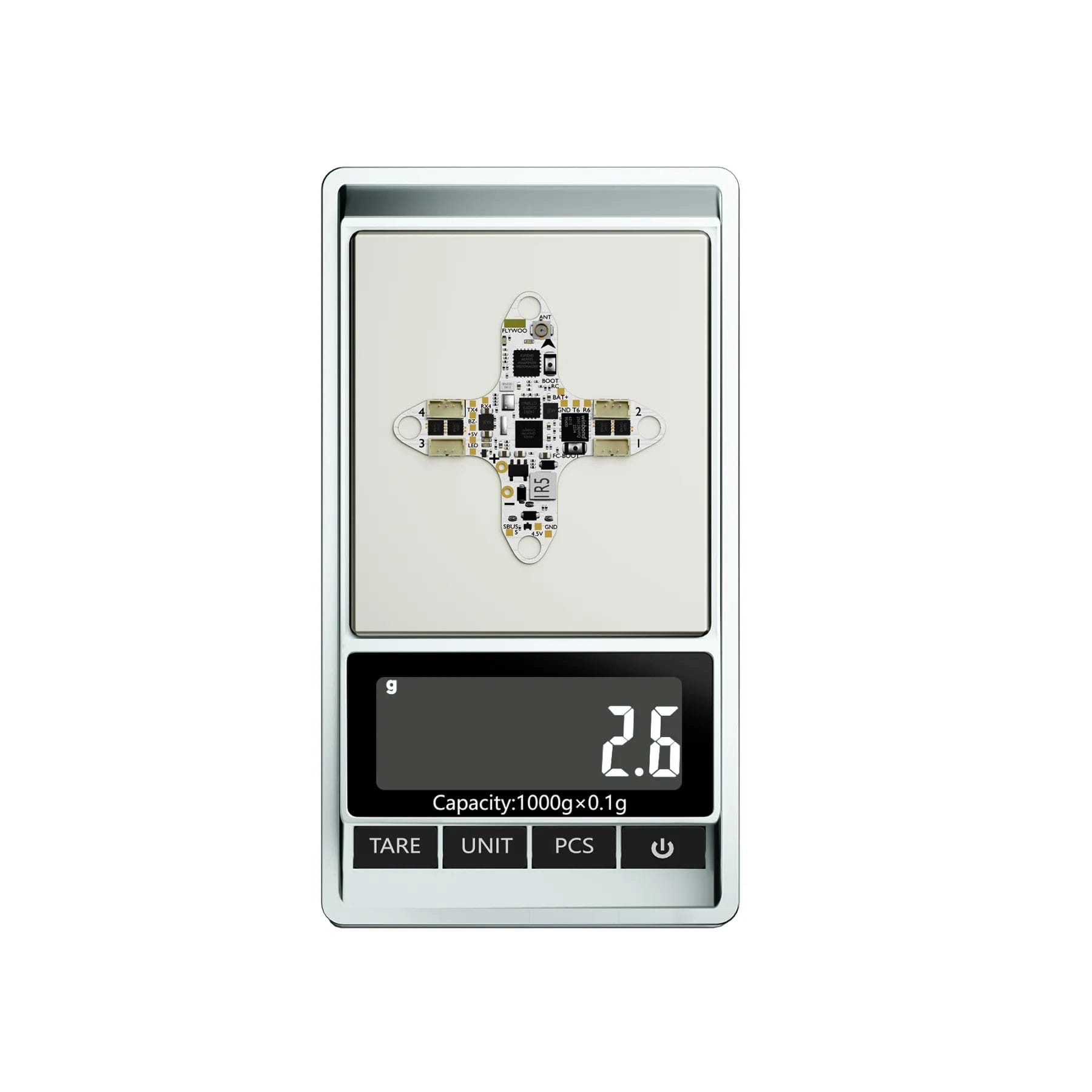

- Weighs just 2.6g without motor connectors—the industry’s lightest 1S AIO solution
- Pre-soldered motor connector
Specifications
- MCU: STM32F405BGA
- IMU: ICM42688P
- Barometer: SPL06
- Blackbox Storage: 8MB
- OSD: Not supported
- UART Ports:
- UART3 (ELRS)
- UART4
- UART5 (SBUS)
- UART
- Supported Protocols: CRSF, SBUS, iBus, Spektrum
- BEC: 5V 3.0A Max (Supports DJI O4 Air Unit)
- Receiver: Flywoo TCXO EL24E 2400 RX 3.0.0
- Firmware: FLYWOOF405S_AIO
- Dimensions: 30.5 × 30.5 mm
- Mounting Holes: 25.5 × 25.5 mm (square, hole-center spacing)
- Weight: 2.6 g
- Power Input: 1S only
- Continuous Current: 5A
- Peak Current: 8A
- ESC Firmware: O_H_5_48KHz_V0.19.hex (Bluejay)
- Digital Protocols: DShot300 / DShot600
- Motor Connector: JST1.25
- Battery Connector: A30
- Input Voltage: 2.65V–5V (1S LiPo)
- Output: 5V / 3A
- Dimensions: 11 × 8 × 2.2 mm
- Weight: 0.4 g
Includes
- 1x GOKU F405 HD 1S 5A ELRS AIO V2 (pre-soldered motor connectors)
- 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL–40mm
- 5x M2*6.6 Shock-absorbing ball
- 1x shrink film
- 4x Silica wire (Red/Black)
- 1x A30 Power cable
