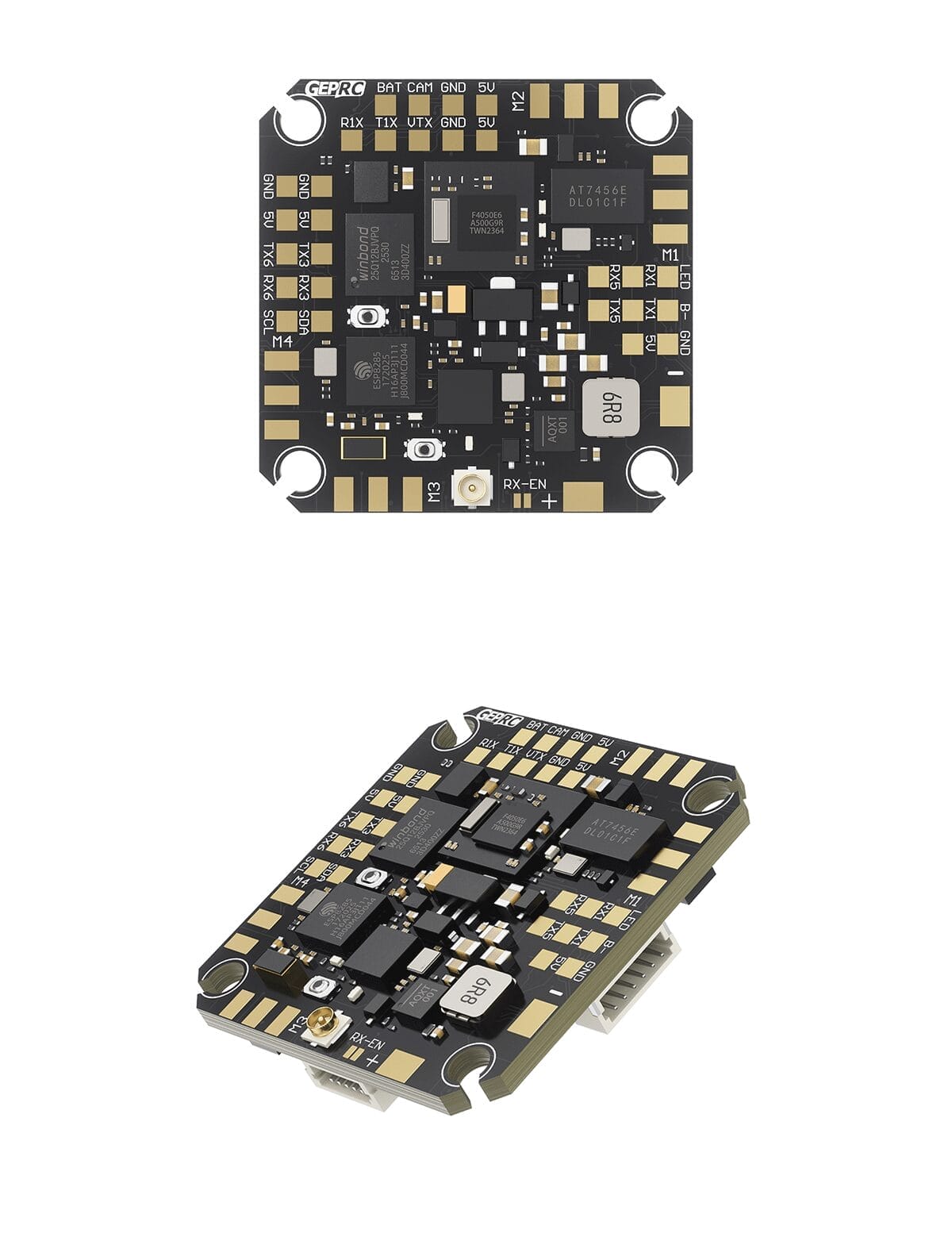

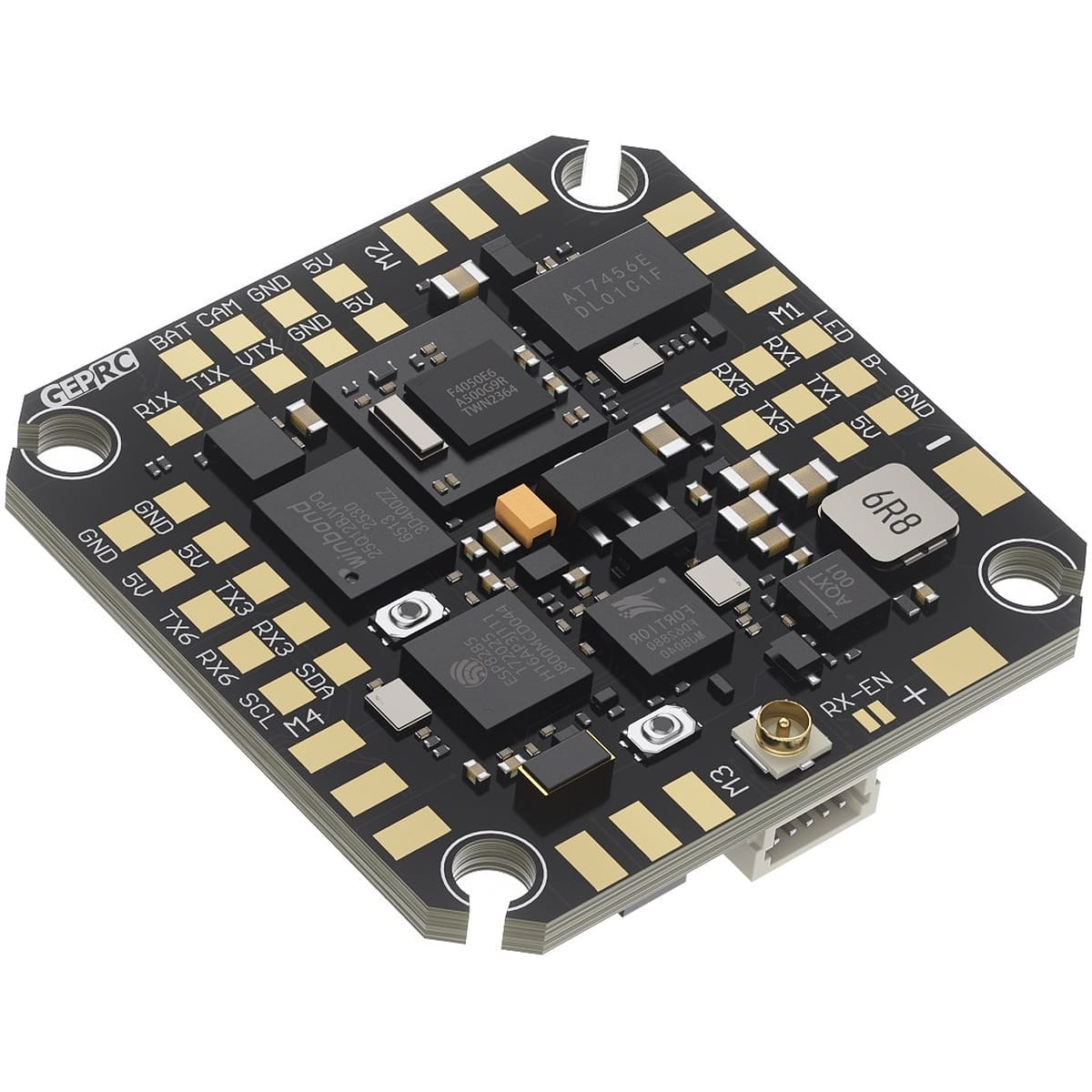

GEPRC TAKER F405 20A ELRS 2.4G 2-4S AIO
AU$135.99
The TAKER F405 20A ELRS2.4G 2–4S AIO features a compact STM32F405 BGA MCU paired with an ICM42688-P gyroscope, delivering a highly integrated design that occupies minimal space. With a built-in ELRS 2.4GHz receiver, the overall build is cleaner and more streamlined.
In stock
Description
GEPRC TAKER F405 20A ELRS 2.4G 2-4S AIO
The TAKER F405 20A ELRS2.4G 2–4S AIO features a compact STM32F405 BGA MCU paired with an ICM42688-P gyroscope, delivering a highly integrated design that occupies minimal space. With a built-in ELRS 2.4GHz receiver, the overall build is cleaner and more streamlined.

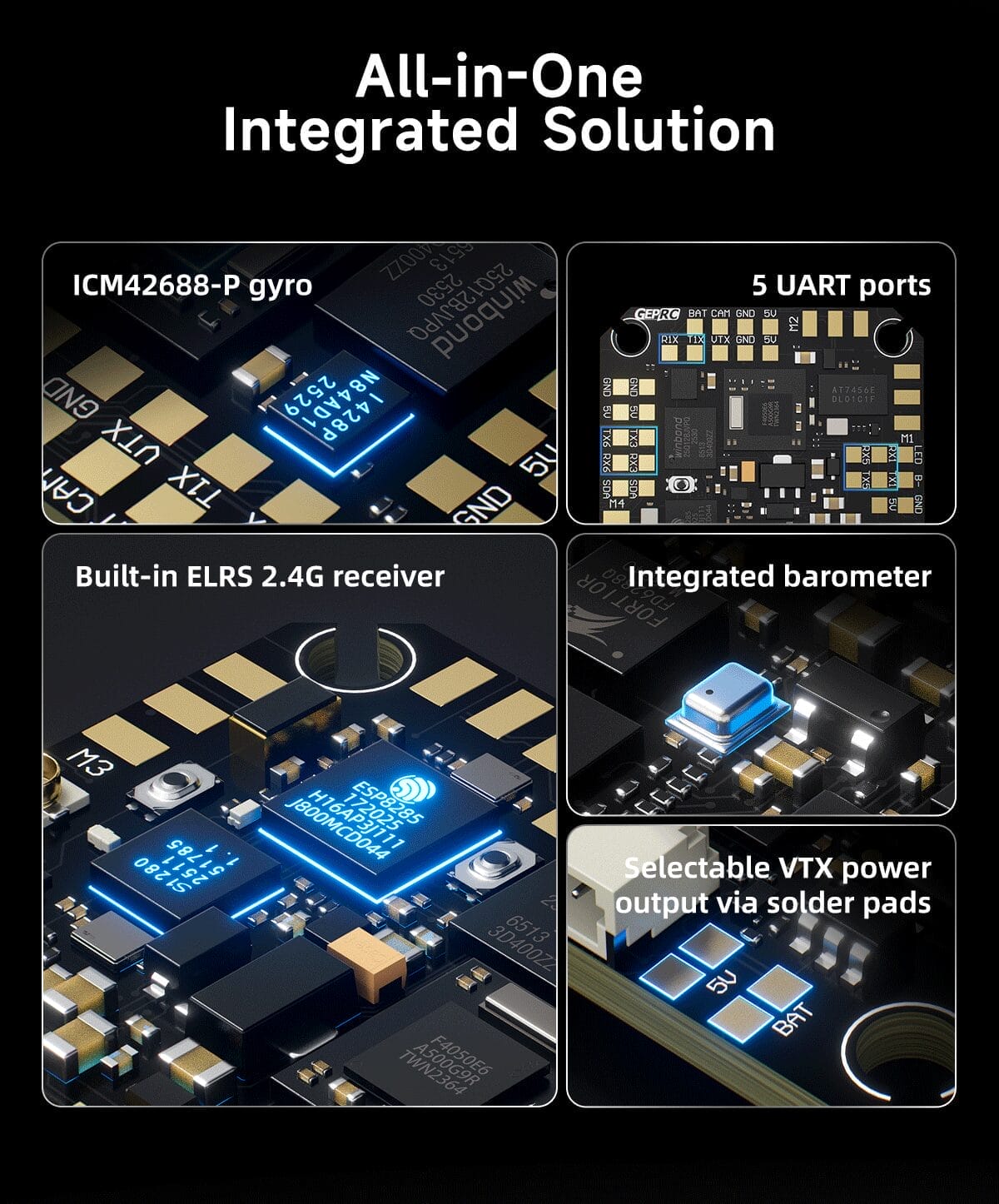

Features

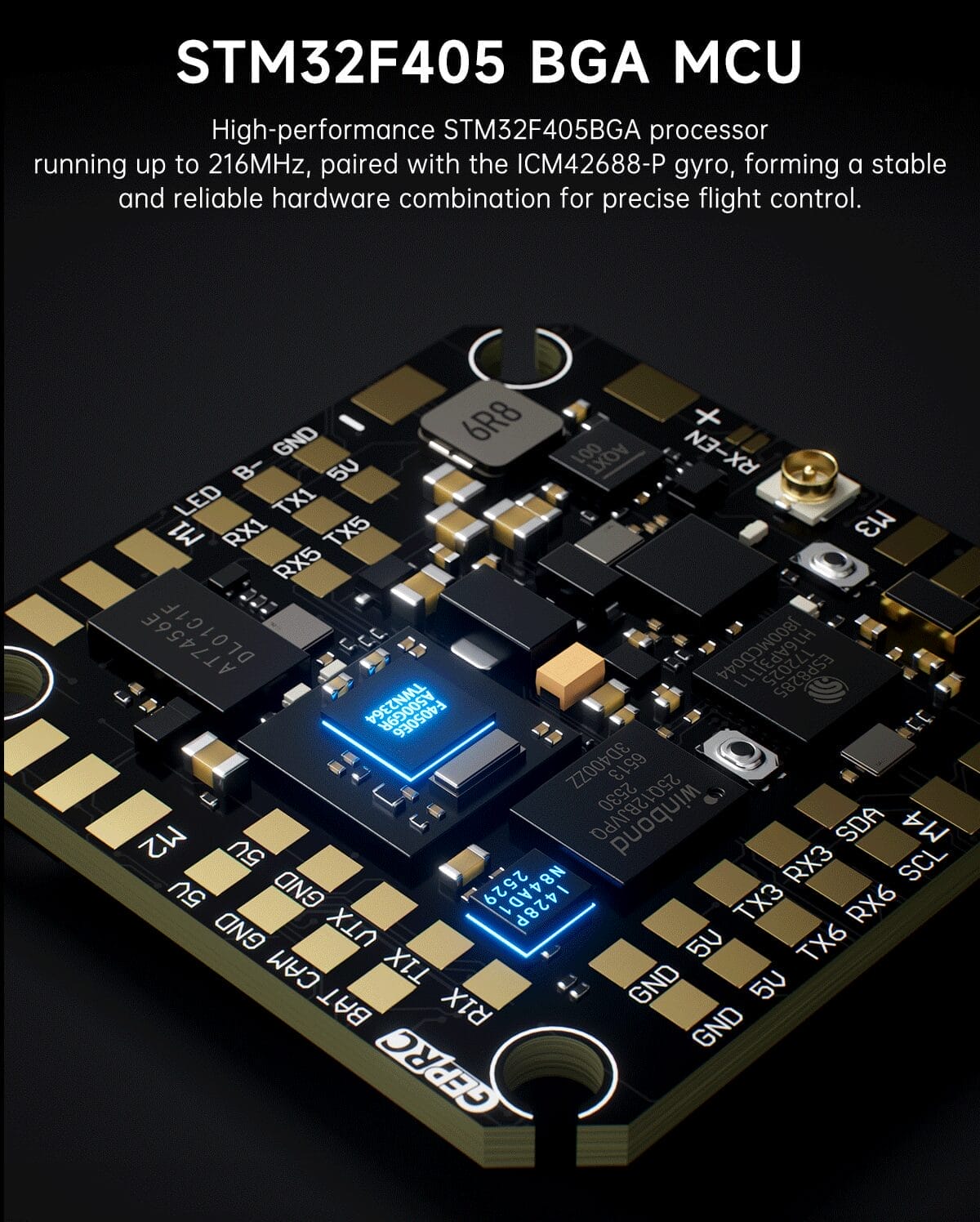

- STM32F405 BGA MCU with AT7456E compact OSD chip for a space-efficient layout
- Integrated ELRS 2.4GHz receiver for simplified installation

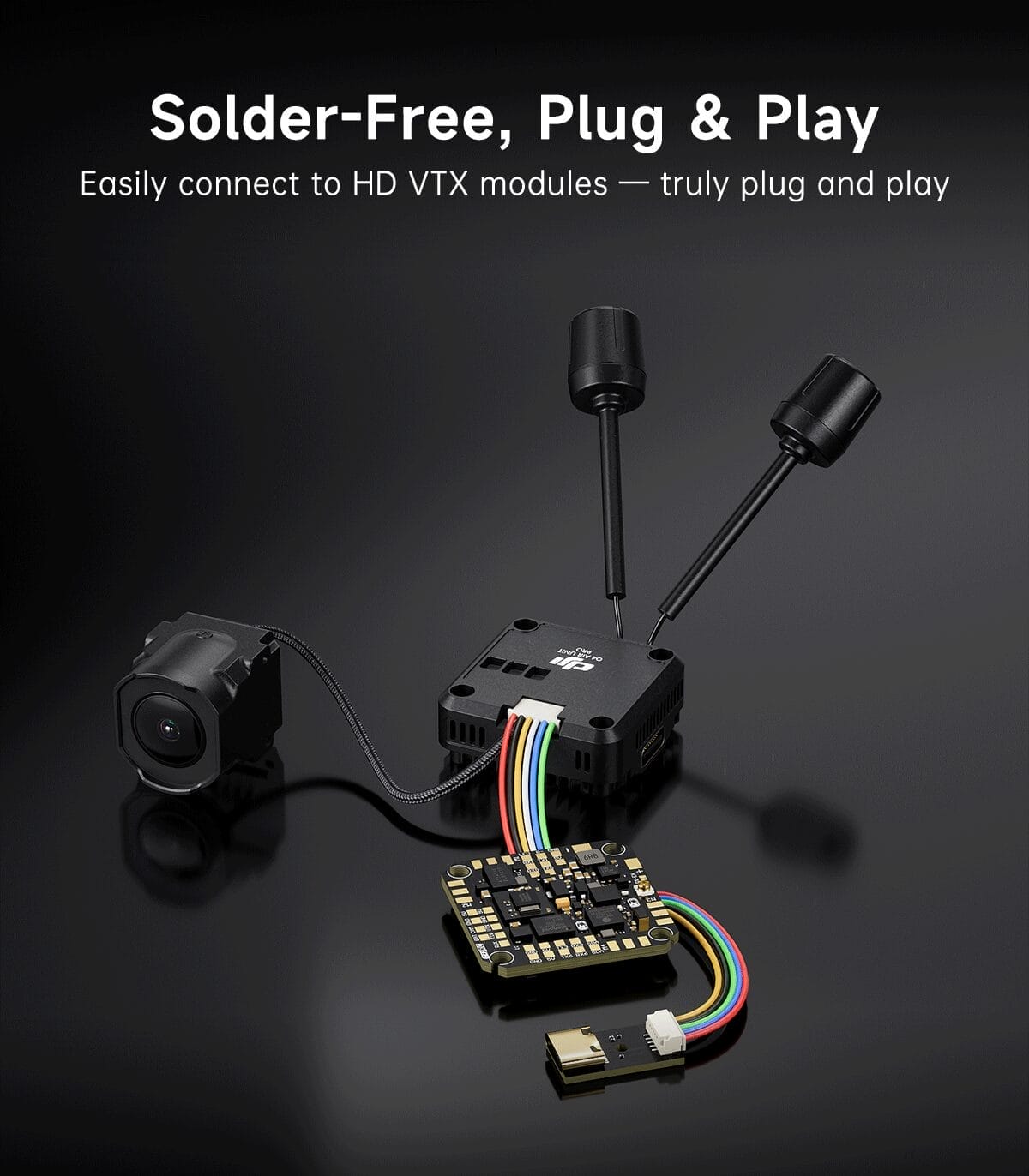

- 5 full UART ports with support for direct HD VTX connection

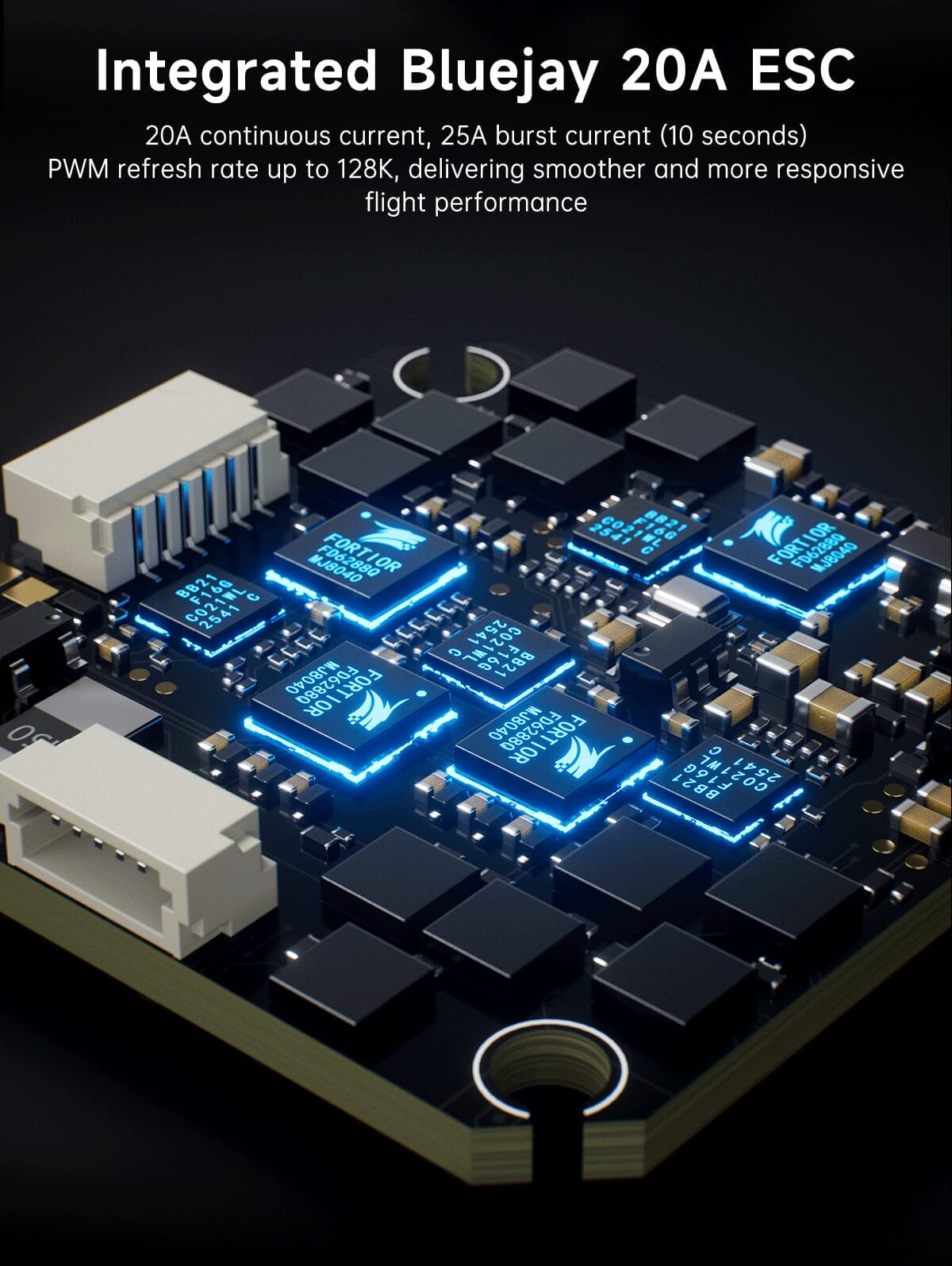

- Bluejay ESC firmware for smooth and refined flight feel
- Ultra-lightweight 7g design, suitable for 1.6″–2.2″ FPV drones

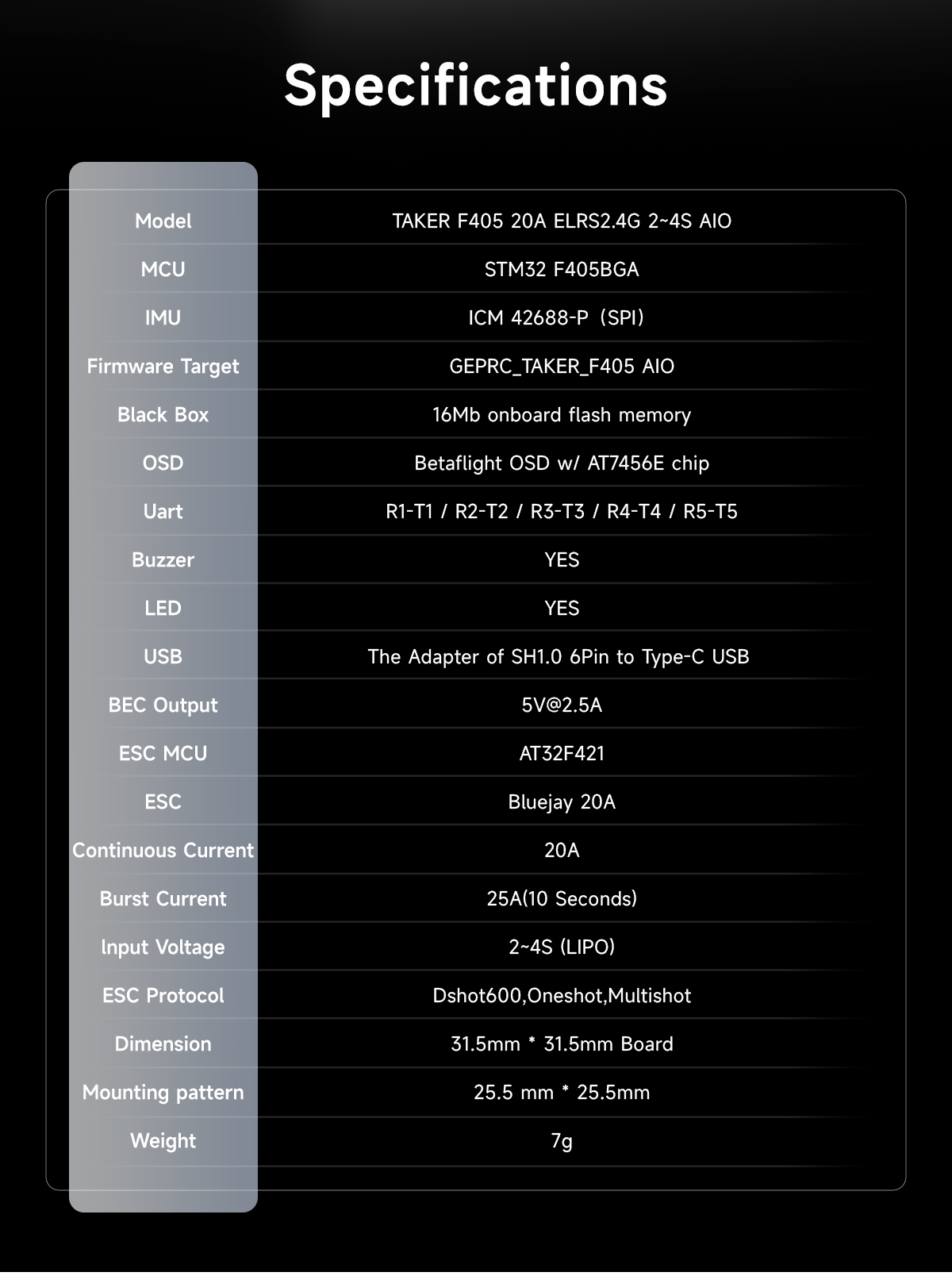

Specifications
- Product Name: TAKER F405 20A ELRS2.4G 2–4S AIO
- MCU: STM32 F405 BGA
- IMU: ICM42688-P (SPI)
- FC Firmware: GEPRC_TAKER_F405 AIO
- Blackbox: 16Mb onboard flash
- OSD: Betaflight OSD with AT7456E chip

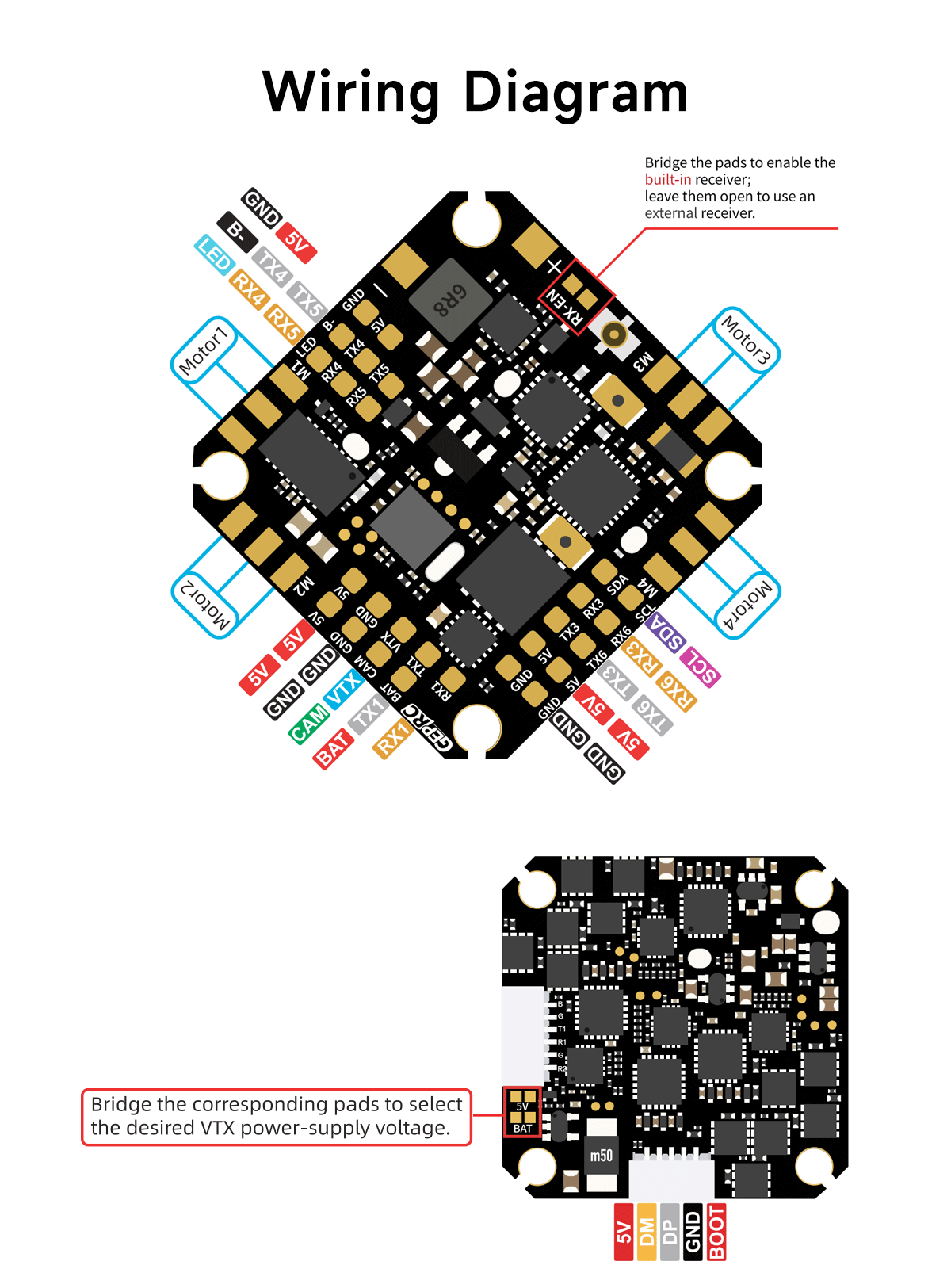

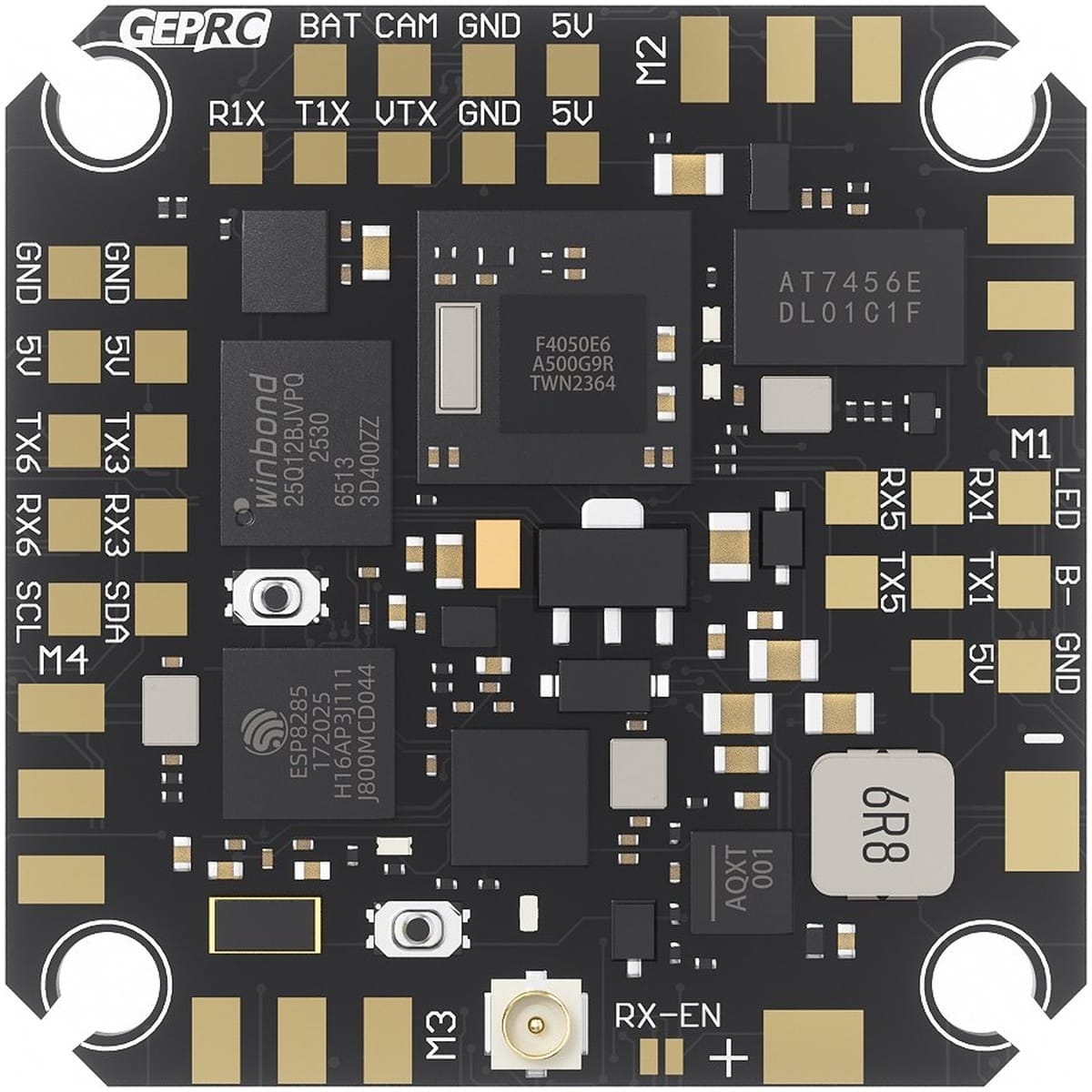

- UART: R1-T1 / R2 / R3-T3 / R4-T4 / R5-T5 / R6-T6
- Buzzer: Yes
- LED: Yes
- USB: SH1.0 6-Pin connector to Type-C USB
- BEC Output: 5V @ 2.5A
- ESC Firmware: Bluejay 20A
- Continuous Current: 20A
- Peak Current: 25A (10 seconds)
- Input Voltage: 2–4S LiPo
- ESC Protocols: DShot600, OneShot, MultiShot
- Dimensions: 31.5mm × 31.5mm
- Mounting Pattern: 25.5 × 25.5mm, φM3 rubber grommets to M2 screws
- Weight: 7g

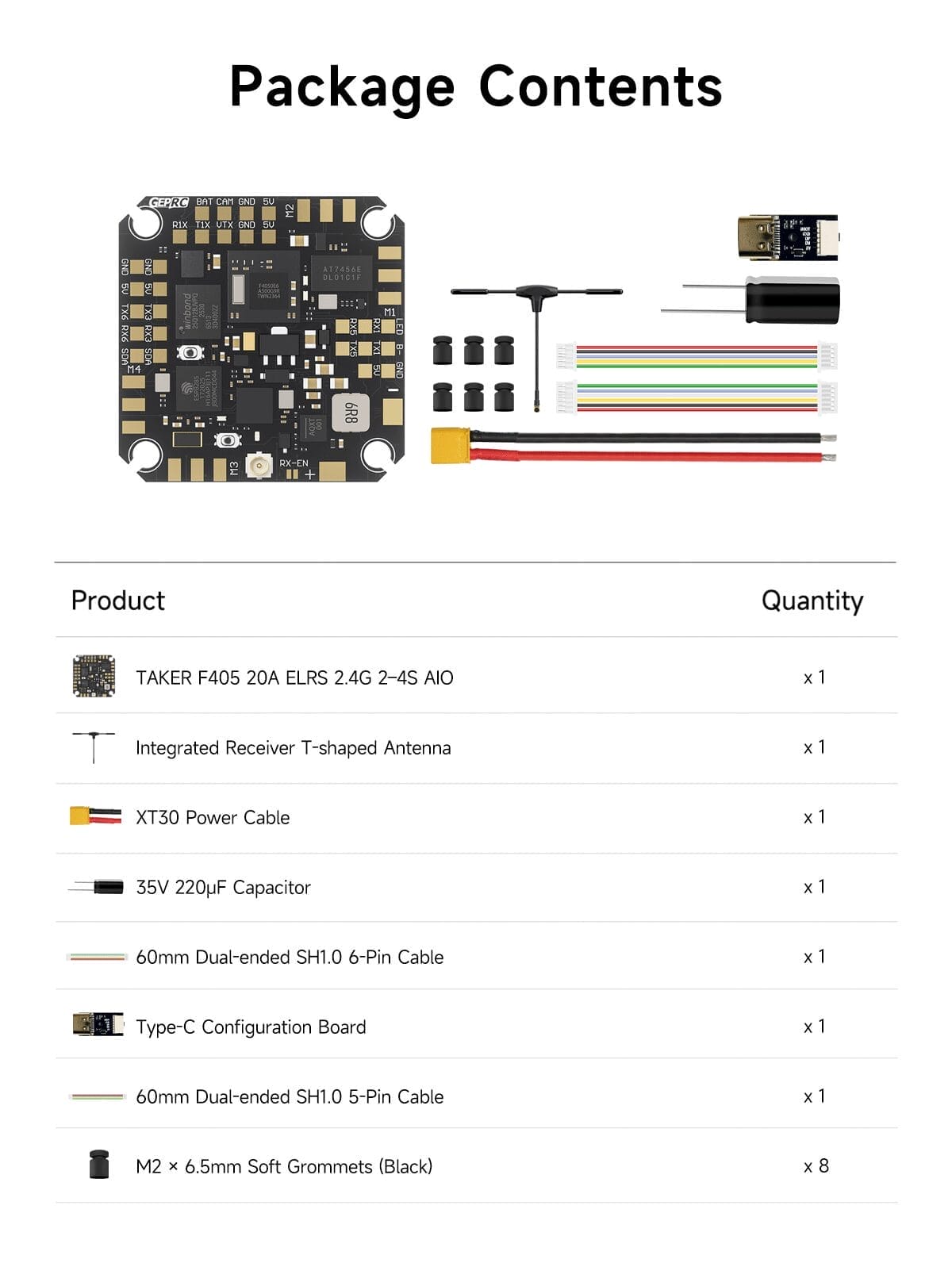

Includes
- 1 × TAKER F405 20A ELRS2.4G 2–4S AIO
- 1 × XT30 18AWG 7cm Power Cable
- 1 × 35V 220µF Capacitor
- 1 × 60mm SH1.0 6-Pin Dual-Ended Cable
- 1 × SH1.0 6-Pin Cable
- 1 × Type-C Configuration Board
- 1 × 60mm SH1.0 5-Pin Dual-Ended Cable
- 8 × M2×6.5mm FC Rubber Grommets (Black)
