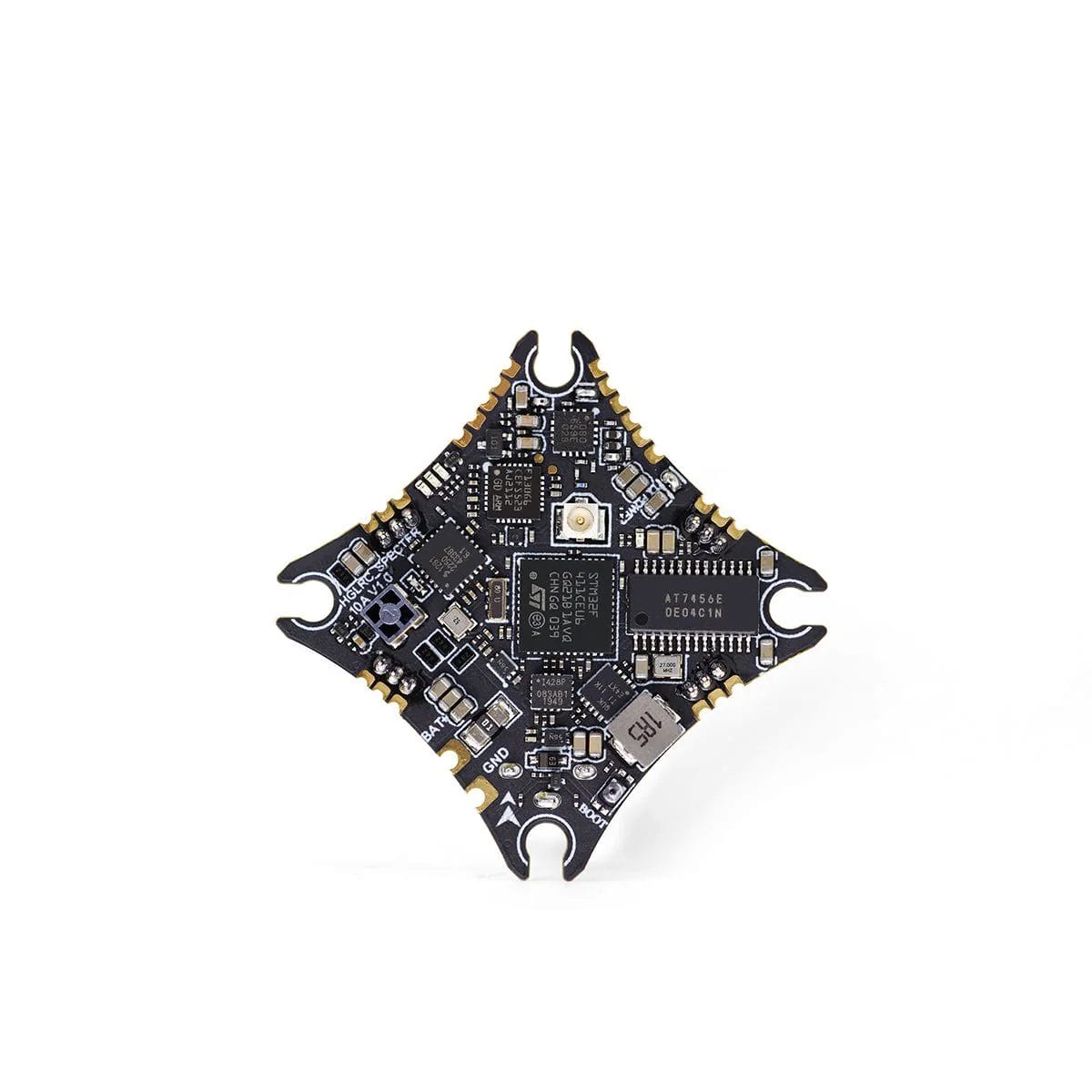

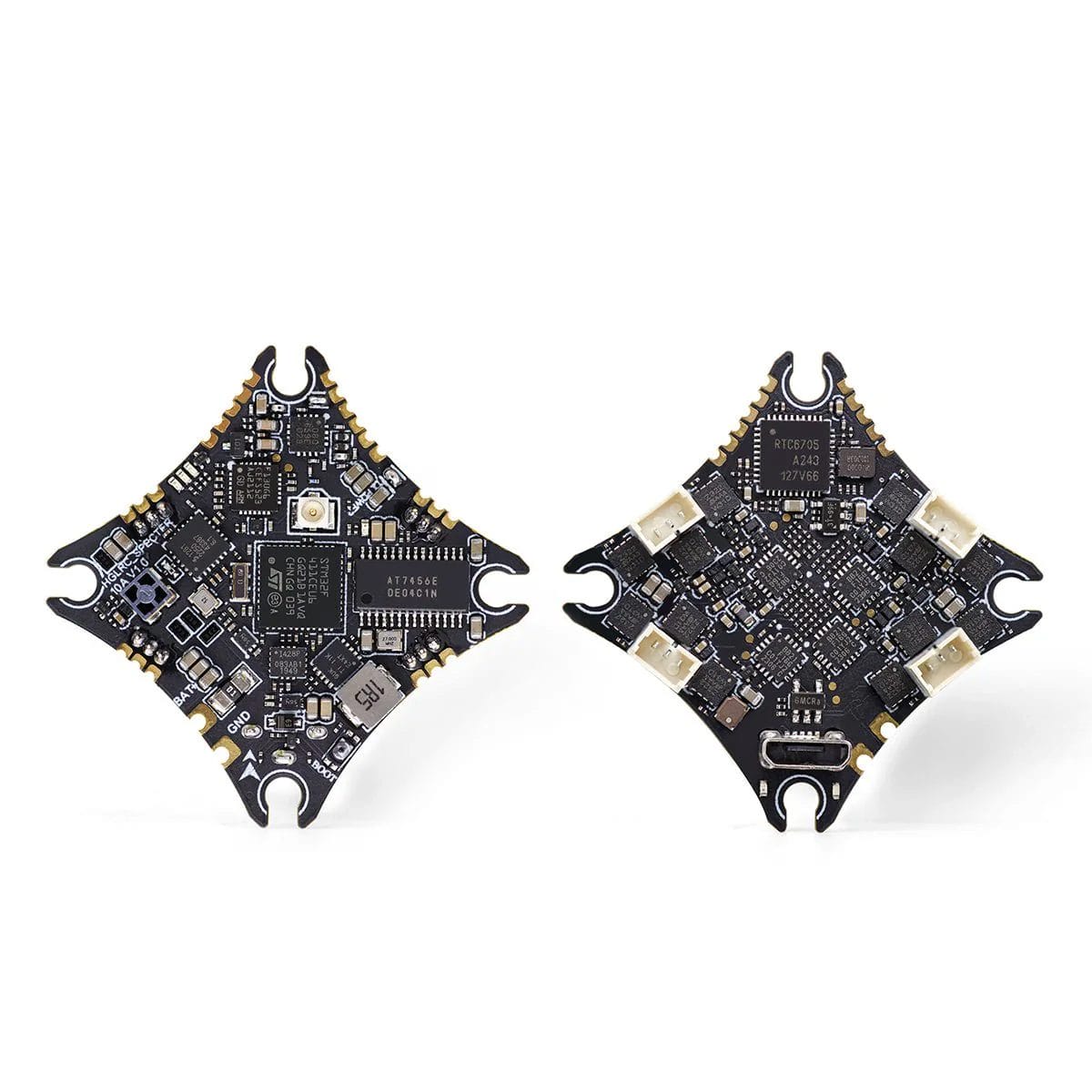

HGLRC SPECTER 10A ELRS 400mW VTX 1-2S 5 in 1 AIO
AU$124.95
This is an ultra-light F411 10A 1-2S AIO integrated brushless flight controller, integrated SPI ExpressLRS 2.4G receiver, and integrated 400mW 5.8GHz adjustable power video transmission at the same time. The SIP ELRS receiver uses patch ceramic antennas to solve the short-distance problem of the ancient SIP D8/D16 protocol. The ELRS receiver superimposes 400mW high-power video transmission to easily fly around the harsh indoor environment.The built-in receiver has the characteristics of high sensitivity, high refresh rate and low delay, and is loved by many FPV enthusiasts. This AIO flight controller is fully compatible with 65/75/85mm/lightweight toothpick drone/whoop series and other frames on the market
Sold out
Description
HGLRC SPECTER 10A ELRS 400mW VTX 1-2S 5 in 1 AIO
This is an ultra-light F411 10A 1-2S AIO integrated brushless flight controller, integrated SPI ExpressLRS 2.4G receiver, and integrated 400mW 5.8GHz adjustable power video transmission at the same time. The SIP ELRS receiver uses patch ceramic antennas to solve the short-distance problem of the ancient SIP D8/D16 protocol. The ELRS receiver superimposes 400mW high-power video transmission to easily fly around the harsh indoor environment.The built-in receiver has the characteristics of high sensitivity, high refresh rate and low delay, and is loved by many FPV enthusiasts. This AIO flight controller is fully compatible with 65/75/85mm/lightweight toothpick drone/whoop series and other frames on the market
Features
- Built-in SPI ELRS receiver/or external CRSF protocol receiver
- Built-in integrated TBS 400mW 5.8GHz analog video transmission
- Independent 3P socket, which can be directly connected to the motor
- By default, the Bluejay firmware is flashed to improve the flight efficiency, which is the best choice for the drone
- Compatible with all 65mm-85mm hoop/toothpick frames
- Maximum support for input voltage of 1-2s
Specifications
- Product name: SPECTER 10A 1-2S AIO
- MCU: STM32F411
- GYRO：ICM42688
- BEC: 5V1.5A
- OSD: support
- LED: support
- Buzzer: support
- UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF protocol receiver/ VTX HD
- Built-in receiver: SPI ExpressLRS 2.4G
- Built-in receiver frequency: 2.4GHZ
- Built-in image transmission: 25-REC-100-400mW (adjustable)
- Built-in image transmission frequency: 48CH-5.8ghz
- Continuous current: 10A
- Peak current: 13A (10s)
- ESC protocol: Dshot600, Oneshot, Multishot
- Flight control firmware: HGLRCF411SX1280 V2
- ESC firmware: Z-H-30 (Bluejay)
- Input voltage: 1-2S 3.7V-7.4V (Lipo)
- Mounting hole: 25.5X25.5mm.M2
- Weight: 4.9g

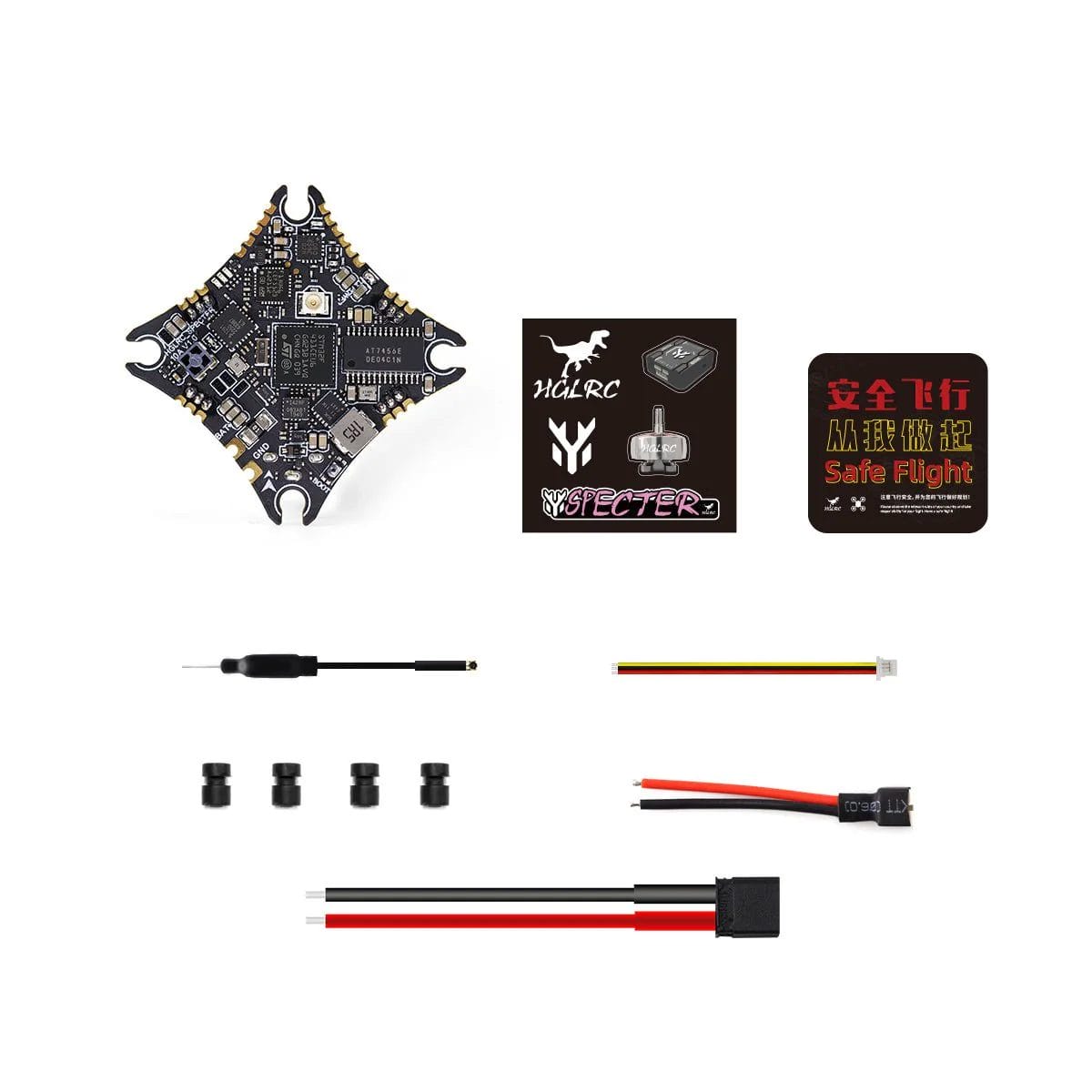

Includes
- 1x SPECTER 10A 1-2S AIO
- 1x XT30U-M 22AWG 70mm male power cord
- 1x PH2.0-2P 22AWG 35mm male power cord
- 1x MX1.25-3P 30AWG 75mm camera cable
- 4x M2*6.6 Shock-absorbing column
