HDZero AIO15 2S/3S Digital AIO Flight System ICM42688 (HDZ5015)
AU$194.95
The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC – into a compact, ultra-lightweight 31.3×31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 – 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you’re building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
ONLY 2 LEFT
Description
HDZero AIO15 2S/3S Digital AIO Flight System ICM42688
The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC – into a compact, ultra-lightweight 31.3×31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 – 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you’re building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
Features
Pilots loved the convenience and weight of the HDZero AIO5, but wanted more power and voltage flexibility. The AIO5 was limited to:
- 5A ESCs
- 1S voltage only
The AIO15 solves this with:
- 15A ESCs (18A peak)
- 2S-3S battery support
Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for.
- Integrated HDZero 5.8GHz Digital VTX
- Output Power: 25mW / 200mW
- Channels: R1- R8, F2/F4, L1 – L8
- U.FL connector with included ultra-light linear antenna
- Built-in Serial ExpressLRS 2.4GHz Receiver
- Packet rates: 50 – 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
- Flight Controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
- 4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- DShot600 ready
- 5V BEC
- 5V @ 1A output for accessories and camera
Specifications
- Battery Input: 2S–3S (3.5V–13V)
- Mounting: 25.5×25.5mm M2
- Board Dimensions: 31.3×31.3mm
- Weight: 7.2g (with motor plugs)
- Compatibility: Fits popular whoop frames
Applications
- 80mm freestyle whoops
- Lightweight micro drones
- Pilots seeking minimal weight with maximum performance
- Builders upgrading from the AIO5

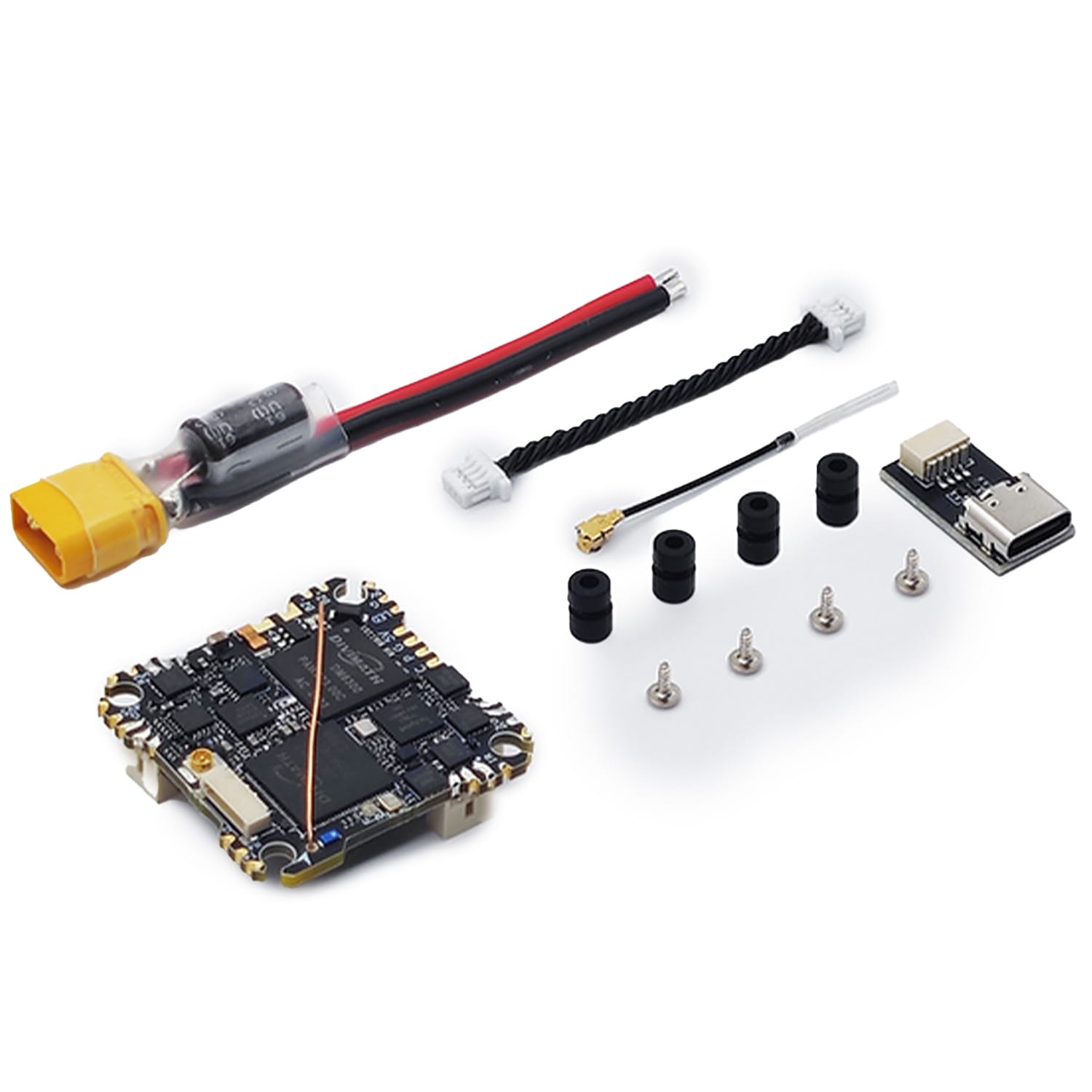

Includes
- 1x HDZero AIO15 board
- 1x Power cable with xt30 connector
- 4x screws
- 4x rubber grommets
- 1x ultra-lite linear VTX antenna
- 1x Adapter board
- 1x Adapter cable
