iFlight Blitz F411 1S 5A Whoop AIO with ELRS 2.4GHz Tower Antenna
AU$114.35
The iFlight Blitz F411 1S 5A Whoop AIO with ELRS 2.4GHz Tower Antenna is a lightweight, high-performance flight controller designed for micro drones, featuring an integrated 2.4GHz CC2500 receiver
ONLY 4 LEFT
Description
iFlight Blitz F411 1S 5A Whoop AIO with ELRS 2.4GHz Tower Antenna

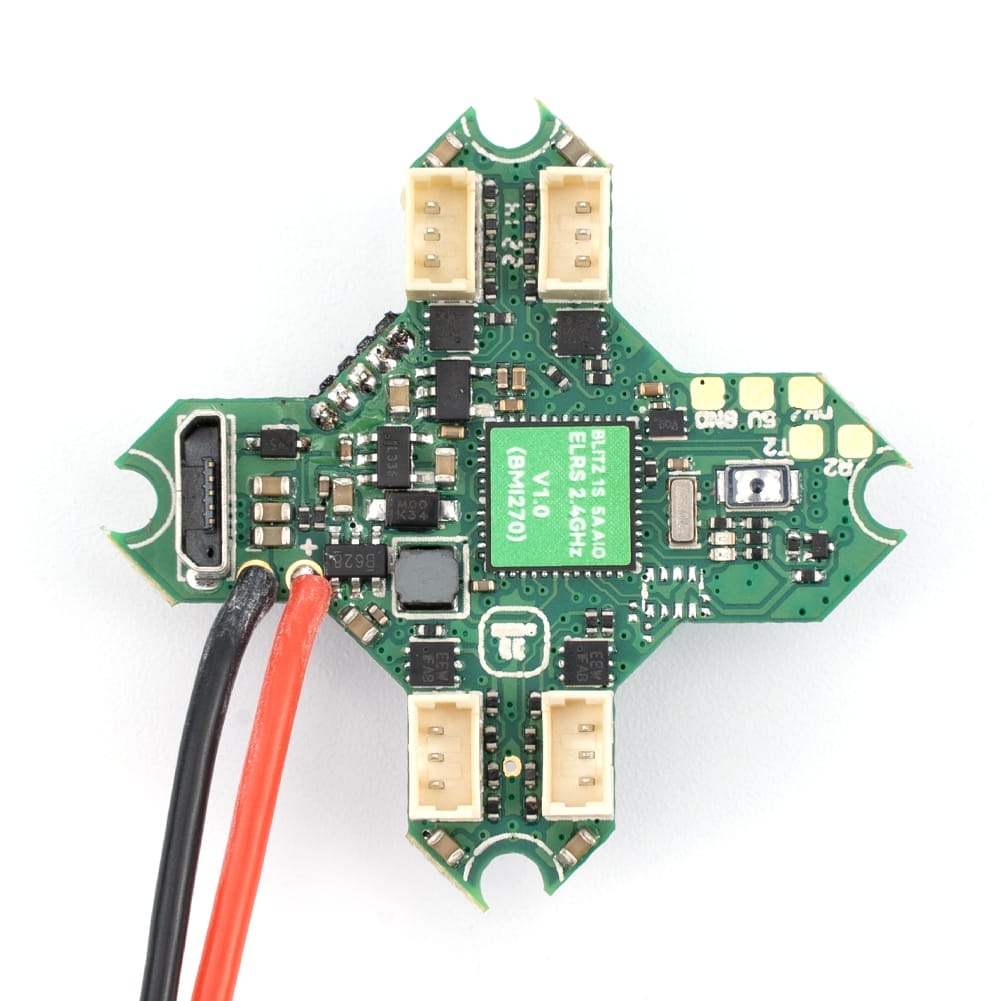

The iFlight Blitz F411 1S 5A Whoop AIO with ELRS 2.4GHz Tower Antenna is a lightweight, high-performance flight controller designed for micro drones, featuring an integrated 2.4GHz CC2500 receiver. Weighing only 4.8g, it supports BLHeliSuite programming and continuous 5A ESC current with Dshot, Oneshot, and Multishot signals. Built with an STM32F411 MCU, BMI270 gyro, and 5V 500mA BEC output, this AIO is engineered for responsive and stable flight control on 1S power. It offers a 25.5 x 25.5mm mounting pattern, Smart Audio protocol, and supports PIT/25/50mW VTX power with 48 channels for versatile connectivity.
Features
- SUPPORT BLHELISUITE PROGRAMMABLE
- BUILT IN 2.4G CC2500 RECEIVER
- 5A CONTINUOUS CURRENT
- SUPER LIGHT ONLY 4.8G
- MCU：STM32F411
- POWER SUPPLY: 1S
- GYRO: BMI270
Flight Controller
- Weight: 4.8g (with power cable, VTX, and VTX antenna)
- Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
- Supported Protocols: CC2500, SPI, D8, S-FHSS
- FC Firmware: IFLIGHT_F4SX1280
- BEC output: 5V 500mA
- Connector: Micro-USB
- MCU: STM32F411
- INA pad: n uart2
- Barometer: NO
- Size: 29*29mm
- Gyro: BMI270
- Blackbox: NO
- NOTE: F.PORT protocol RX input support, telemetry not supported.
- ESC // 5A
- Signal Support: Dshot, Oneshot, Multishot
- Current: 5A continuous and peak 6A
- ESC Firmware: O-H-30 BLS 16.8 (BlheliS) / Bluejay Q-H-50 (Bluejay)
- Current sensor: yes
- ESC Telemetry: NO
- Current scale: 400
- Input: 1S
- Protocol: Smart audio
- Power: PIT/25/50mW
- Connector: UFL/IPEX
- Input voltage: 5V
- Channels: 48CH
Includes
- 1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G CC2500 Receiver / 2.4G ELRS w/SMD Antenna (As optional)
- 4 x M2 Rubber Balls
- 1x Whip antenna
